How to Patch, Inspect, and Protect Microsoft Windows Workloads on AWS—Part 2

Post Syndicated from Koen van Blijderveen original https://aws.amazon.com/blogs/security/how-to-patch-inspect-and-protect-microsoft-windows-workloads-on-aws-part-2/

Yesterday in Part 1 of this blog post, I showed you how to:

  1. Launch an Amazon EC2 instance with an AWS Identity and Access Management (IAM) role, an Amazon Elastic Block Store (Amazon EBS) volume, and tags that Amazon EC2 Systems Manager (Systems Manager) and Amazon Inspector use.
  2. Configure Systems Manager to install the Amazon Inspector agent and patch your EC2 instances.

Today in Steps 3 and 4, I show you how to:

  1. Take Amazon EBS snapshots using Amazon EBS Snapshot Scheduler to automate snapshots based on instance tags.
  2. Use Amazon Inspector to check if your EC2 instances running Microsoft Windows contain any common vulnerabilities and exposures (CVEs).

To catch up on Steps 1 and 2, see yesterday’s blog post.

Step 3: Take EBS snapshots using EBS Snapshot Scheduler

In this section, I show you how to use EBS Snapshot Scheduler to take snapshots of your instances at specific intervals. To do this, I will show you how to:

  • Determine the schedule for EBS Snapshot Scheduler by providing you with best practices.
  • Deploy EBS Snapshot Scheduler by using AWS CloudFormation.
  • Tag your EC2 instances so that EBS Snapshot Scheduler backs up your instances when you want them backed up.

In addition to making sure your EC2 instances have all the available operating system patches applied on a regular schedule, you should take snapshots of the EBS storage volumes attached to your EC2 instances. Taking regular snapshots allows you to restore your data to a previous state quickly and cost effectively. With Amazon EBS snapshots, you pay only for the actual data you store, and snapshots save only the data that has changed since the previous snapshot, which minimizes your cost. You will use EBS Snapshot Scheduler to make regular snapshots of your EC2 instance. EBS Snapshot Scheduler takes advantage of other AWS services including CloudFormation, Amazon DynamoDB, and AWS Lambda to make backing up your EBS volumes simple.

Determine the schedule

As a best practice, you should back up your data frequently during the hours when your data changes the most. This reduces the amount of data you lose if you have to restore from a snapshot. For the purposes of this blog post, the data for my instances changes the most between the business hours of 9:00 A.M. to 5:00 P.M. Pacific Time. During these hours, I will make snapshots hourly to minimize data loss.

In addition to backing up frequently, another best practice is to establish a strategy for retention. This will vary based on how you need to use the snapshots. If you have compliance requirements to be able to restore for auditing, your needs may be different than if you are able to detect data corruption within three hours and simply need to restore to something that limits data loss to five hours. EBS Snapshot Scheduler enables you to specify the retention period for your snapshots. For this post, I only need to keep snapshots for recent business days. To account for weekends, I will set my retention period to three days, which is down from the default of 15 days when deploying EBS Snapshot Scheduler.

Deploy EBS Snapshot Scheduler

In Step 1 of Part 1 of this post, I showed how to configure an EC2 for Windows Server 2012 R2 instance with an EBS volume. You will use EBS Snapshot Scheduler to take eight snapshots each weekday of your EC2 instance’s EBS volumes:

  1. Navigate to the EBS Snapshot Scheduler deployment page and choose Launch Solution. This takes you to the CloudFormation console in your account. The Specify an Amazon S3 template URL option is already selected and prefilled. Choose Next on the Select Template page.
  2. On the Specify Details page, retain all default parameters except for AutoSnapshotDeletion. Set AutoSnapshotDeletion to Yes to ensure that old snapshots are periodically deleted. The default retention period is 15 days (you will specify a shorter value on your instance in the next subsection).
  3. Choose Next twice to move to the Review step, and start deployment by choosing the I acknowledge that AWS CloudFormation might create IAM resources check box and then choosing Create.

Tag your EC2 instances

EBS Snapshot Scheduler takes a few minutes to deploy. While waiting for its deployment, you can start to tag your instance to define its schedule. EBS Snapshot Scheduler reads tag values and looks for four possible custom parameters in the following order:

  • <snapshot time> – Time in 24-hour format with no colon.
  • <retention days> – The number of days (a positive integer) to retain the snapshot before deletion, if set to automatically delete snapshots.
  • <time zone> – The time zone of the times specified in <snapshot time>.
  • <active day(s)>all, weekdays, or mon, tue, wed, thu, fri, sat, and/or sun.

Because you want hourly backups on weekdays between 9:00 A.M. and 5:00 P.M. Pacific Time, you need to configure eight tags—one for each hour of the day. You will add the eight tags shown in the following table to your EC2 instance.

Tag Value
scheduler:ebs-snapshot:0900 0900;3;utc;weekdays
scheduler:ebs-snapshot:1000 1000;3;utc;weekdays
scheduler:ebs-snapshot:1100 1100;3;utc;weekdays
scheduler:ebs-snapshot:1200 1200;3;utc;weekdays
scheduler:ebs-snapshot:1300 1300;3;utc;weekdays
scheduler:ebs-snapshot:1400 1400;3;utc;weekdays
scheduler:ebs-snapshot:1500 1500;3;utc;weekdays
scheduler:ebs-snapshot:1600 1600;3;utc;weekdays

Next, you will add these tags to your instance. If you want to tag multiple instances at once, you can use Tag Editor instead. To add the tags in the preceding table to your EC2 instance:

  1. Navigate to your EC2 instance in the EC2 console and choose Tags in the navigation pane.
  2. Choose Add/Edit Tags and then choose Create Tag to add all the tags specified in the preceding table.
  3. Confirm you have added the tags by choosing Save. After adding these tags, navigate to your EC2 instance in the EC2 console. Your EC2 instance should look similar to the following screenshot.
    Screenshot of how your EC2 instance should look in the console
  4. After waiting a couple of hours, you can see snapshots beginning to populate on the Snapshots page of the EC2 console.Screenshot of snapshots beginning to populate on the Snapshots page of the EC2 console
  5. To check if EBS Snapshot Scheduler is active, you can check the CloudWatch rule that runs the Lambda function. If the clock icon shown in the following screenshot is green, the scheduler is active. If the clock icon is gray, the rule is disabled and does not run. You can enable or disable the rule by selecting it, choosing Actions, and choosing Enable or Disable. This also allows you to temporarily disable EBS Snapshot Scheduler.Screenshot of checking to see if EBS Snapshot Scheduler is active
  1. You can also monitor when EBS Snapshot Scheduler has run by choosing the name of the CloudWatch rule as shown in the previous screenshot and choosing Show metrics for the rule.Screenshot of monitoring when EBS Snapshot Scheduler has run by choosing the name of the CloudWatch rule

If you want to restore and attach an EBS volume, see Restoring an Amazon EBS Volume from a Snapshot and Attaching an Amazon EBS Volume to an Instance.

Step 4: Use Amazon Inspector

In this section, I show you how to you use Amazon Inspector to scan your EC2 instance for common vulnerabilities and exposures (CVEs) and set up Amazon SNS notifications. To do this I will show you how to:

  • Install the Amazon Inspector agent by using EC2 Run Command.
  • Set up notifications using Amazon SNS to notify you of any findings.
  • Define an Amazon Inspector target and template to define what assessment to perform on your EC2 instance.
  • Schedule Amazon Inspector assessment runs to assess your EC2 instance on a regular interval.

Amazon Inspector can help you scan your EC2 instance using prebuilt rules packages, which are built and maintained by AWS. These prebuilt rules packages tell Amazon Inspector what to scan for on the EC2 instances you select. Amazon Inspector provides the following prebuilt packages for Microsoft Windows Server 2012 R2:

  • Common Vulnerabilities and Exposures
  • Center for Internet Security Benchmarks
  • Runtime Behavior Analysis

In this post, I’m focused on how to make sure you keep your EC2 instances patched, backed up, and inspected for common vulnerabilities and exposures (CVEs). As a result, I will focus on how to use the CVE rules package and use your instance tags to identify the instances on which to run the CVE rules. If your EC2 instance is fully patched using Systems Manager, as described earlier, you should not have any findings with the CVE rules package. Regardless, as a best practice I recommend that you use Amazon Inspector as an additional layer for identifying any unexpected failures. This involves using Amazon CloudWatch to set up weekly Amazon Inspector scans, and configuring Amazon Inspector to notify you of any findings through SNS topics. By acting on the notifications you receive, you can respond quickly to any CVEs on any of your EC2 instances to help ensure that malware using known CVEs does not affect your EC2 instances. In a previous blog post, Eric Fitzgerald showed how to remediate Amazon Inspector security findings automatically.

Install the Amazon Inspector agent

To install the Amazon Inspector agent, you will use EC2 Run Command, which allows you to run any command on any of your EC2 instances that have the Systems Manager agent with an attached IAM role that allows access to Systems Manager.

  1. Choose Run Command under Systems Manager Services in the navigation pane of the EC2 console. Then choose Run a command.
    Screenshot of choosing "Run a command"
  2. To install the Amazon Inspector agent, you will use an AWS managed and provided command document that downloads and installs the agent for you on the selected EC2 instance. Choose AmazonInspector-ManageAWSAgent. To choose the target EC2 instance where this command will be run, use the tag you previously assigned to your EC2 instance, Patch Group, with a value of Windows Servers. For this example, set the concurrent installations to 1 and tell Systems Manager to stop after 5 errors.
    Screenshot of installing the Amazon Inspector agent
  3. Retain the default values for all other settings on the Run a command page and choose Run. Back on the Run Command page, you can see if the command that installed the Amazon Inspector agent executed successfully on all selected EC2 instances.
    Screenshot showing that the command that installed the Amazon Inspector agent executed successfully on all selected EC2 instances

Set up notifications using Amazon SNS

Now that you have installed the Amazon Inspector agent, you will set up an SNS topic that will notify you of any findings after an Amazon Inspector run.

To set up an SNS topic:

  1. In the AWS Management Console, choose Simple Notification Service under Messaging in the Services menu.
  2. Choose Create topic, name your topic (only alphanumeric characters, hyphens, and underscores are allowed) and give it a display name to ensure you know what this topic does (I’ve named mine Inspector). Choose Create topic.
    "Create new topic" page
  3. To allow Amazon Inspector to publish messages to your new topic, choose Other topic actions and choose Edit topic policy.
  4. For Allow these users to publish messages to this topic and Allow these users to subscribe to this topic, choose Only these AWS users. Type the following ARN for the US East (N. Virginia) Region in which you are deploying the solution in this post: arn:aws:iam::316112463485:root. This is the ARN of Amazon Inspector itself. For the ARNs of Amazon Inspector in other AWS Regions, see Setting Up an SNS Topic for Amazon Inspector Notifications (Console). Amazon Resource Names (ARNs) uniquely identify AWS resources across all of AWS.
    Screenshot of editing the topic policy
  5. To receive notifications from Amazon Inspector, subscribe to your new topic by choosing Create subscription and adding your email address. After confirming your subscription by clicking the link in the email, the topic should display your email address as a subscriber. Later, you will configure the Amazon Inspector template to publish to this topic.
    Screenshot of subscribing to the new topic

Define an Amazon Inspector target and template

Now that you have set up the notification topic by which Amazon Inspector can notify you of findings, you can create an Amazon Inspector target and template. A target defines which EC2 instances are in scope for Amazon Inspector. A template defines which packages to run, for how long, and on which target.

To create an Amazon Inspector target:

  1. Navigate to the Amazon Inspector console and choose Get started. At the time of writing this blog post, Amazon Inspector is available in the US East (N. Virginia), US West (N. California), US West (Oregon), EU (Ireland), Asia Pacific (Mumbai), Asia Pacific (Seoul), Asia Pacific (Sydney), and Asia Pacific (Tokyo) Regions.
  2. For Amazon Inspector to be able to collect the necessary data from your EC2 instance, you must create an IAM service role for Amazon Inspector. Amazon Inspector can create this role for you if you choose Choose or create role and confirm the role creation by choosing Allow.
    Screenshot of creating an IAM service role for Amazon Inspector
  3. Amazon Inspector also asks you to tag your EC2 instance and install the Amazon Inspector agent. You already performed these steps in Part 1 of this post, so you can proceed by choosing Next. To define the Amazon Inspector target, choose the previously used Patch Group tag with a Value of Windows Servers. This is the same tag that you used to define the targets for patching. Then choose Next.
    Screenshot of defining the Amazon Inspector target
  4. Now, define your Amazon Inspector template, and choose a name and the package you want to run. For this post, use the Common Vulnerabilities and Exposures package and choose the default duration of 1 hour. As you can see, the package has a version number, so always select the latest version of the rules package if multiple versions are available.
    Screenshot of defining an assessment template
  5. Configure Amazon Inspector to publish to your SNS topic when findings are reported. You can also choose to receive a notification of a started run, a finished run, or changes in the state of a run. For this blog post, you want to receive notifications if there are any findings. To start, choose Assessment Templates from the Amazon Inspector console and choose your newly created Amazon Inspector assessment template. Choose the icon below SNS topics (see the following screenshot).
    Screenshot of choosing an assessment template
  6. A pop-up appears in which you can choose the previously created topic and the events about which you want SNS to notify you (choose Finding reported).
    Screenshot of choosing the previously created topic and the events about which you want SNS to notify you

Schedule Amazon Inspector assessment runs

The last step in using Amazon Inspector to assess for CVEs is to schedule the Amazon Inspector template to run using Amazon CloudWatch Events. This will make sure that Amazon Inspector assesses your EC2 instance on a regular basis. To do this, you need the Amazon Inspector template ARN, which you can find under Assessment templates in the Amazon Inspector console. CloudWatch Events can run your Amazon Inspector assessment at an interval you define using a Cron-based schedule. Cron is a well-known scheduling agent that is widely used on UNIX-like operating systems and uses the following syntax for CloudWatch Events.

Image of Cron schedule

All scheduled events use a UTC time zone, and the minimum precision for schedules is one minute. For more information about scheduling CloudWatch Events, see Schedule Expressions for Rules.

To create the CloudWatch Events rule:

  1. Navigate to the CloudWatch console, choose Events, and choose Create rule.
    Screenshot of starting to create a rule in the CloudWatch Events console
  2. On the next page, specify if you want to invoke your rule based on an event pattern or a schedule. For this blog post, you will select a schedule based on a Cron expression.
  3. You can schedule the Amazon Inspector assessment any time you want using the Cron expression, or you can use the Cron expression I used in the following screenshot, which will run the Amazon Inspector assessment every Sunday at 10:00 P.M. GMT.
    Screenshot of scheduling an Amazon Inspector assessment with a Cron expression
  4. Choose Add target and choose Inspector assessment template from the drop-down menu. Paste the ARN of the Amazon Inspector template you previously created in the Amazon Inspector console in the Assessment template box and choose Create a new role for this specific resource. This new role is necessary so that CloudWatch Events has the necessary permissions to start the Amazon Inspector assessment. CloudWatch Events will automatically create the new role and grant the minimum set of permissions needed to run the Amazon Inspector assessment. To proceed, choose Configure details.
    Screenshot of adding a target
  5. Next, give your rule a name and a description. I suggest using a name that describes what the rule does, as shown in the following screenshot.
  6. Finish the wizard by choosing Create rule. The rule should appear in the Events – Rules section of the CloudWatch console.
    Screenshot of completing the creation of the rule
  7. To confirm your CloudWatch Events rule works, wait for the next time your CloudWatch Events rule is scheduled to run. For testing purposes, you can choose your CloudWatch Events rule and choose Edit to change the schedule to run it sooner than scheduled.
    Screenshot of confirming the CloudWatch Events rule works
  8. Now navigate to the Amazon Inspector console to confirm the launch of your first assessment run. The Start time column shows you the time each assessment started and the Status column the status of your assessment. In the following screenshot, you can see Amazon Inspector is busy Collecting data from the selected assessment targets.
    Screenshot of confirming the launch of the first assessment run

You have concluded the last step of this blog post by setting up a regular scan of your EC2 instance with Amazon Inspector and a notification that will let you know if your EC2 instance is vulnerable to any known CVEs. In a previous Security Blog post, Eric Fitzgerald explained How to Remediate Amazon Inspector Security Findings Automatically. Although that blog post is for Linux-based EC2 instances, the post shows that you can learn about Amazon Inspector findings in other ways than email alerts.

Conclusion

In this two-part blog post, I showed how to make sure you keep your EC2 instances up to date with patching, how to back up your instances with snapshots, and how to monitor your instances for CVEs. Collectively these measures help to protect your instances against common attack vectors that attempt to exploit known vulnerabilities. In Part 1, I showed how to configure your EC2 instances to make it easy to use Systems Manager, EBS Snapshot Scheduler, and Amazon Inspector. I also showed how to use Systems Manager to schedule automatic patches to keep your instances current in a timely fashion. In Part 2, I showed you how to take regular snapshots of your data by using EBS Snapshot Scheduler and how to use Amazon Inspector to check if your EC2 instances running Microsoft Windows contain any common vulnerabilities and exposures (CVEs).

If you have comments about today’s or yesterday’s post, submit them in the “Comments” section below. If you have questions about or issues implementing any part of this solution, start a new thread on the Amazon EC2 forum or the Amazon Inspector forum, or contact AWS Support.

– Koen

How to Patch, Inspect, and Protect Microsoft Windows Workloads on AWS—Part 1

Post Syndicated from Koen van Blijderveen original https://aws.amazon.com/blogs/security/how-to-patch-inspect-and-protect-microsoft-windows-workloads-on-aws-part-1/

Most malware tries to compromise your systems by using a known vulnerability that the maker of the operating system has already patched. To help prevent malware from affecting your systems, two security best practices are to apply all operating system patches to your systems and actively monitor your systems for missing patches. In case you do need to recover from a malware attack, you should make regular backups of your data.

In today’s blog post (Part 1 of a two-part post), I show how to keep your Amazon EC2 instances that run Microsoft Windows up to date with the latest security patches by using Amazon EC2 Systems Manager. Tomorrow in Part 2, I show how to take regular snapshots of your data by using Amazon EBS Snapshot Scheduler and how to use Amazon Inspector to check if your EC2 instances running Microsoft Windows contain any common vulnerabilities and exposures (CVEs).

What you should know first

To follow along with the solution in this post, you need one or more EC2 instances. You may use existing instances or create new instances. For the blog post, I assume this is an EC2 for Microsoft Windows Server 2012 R2 instance installed from the Amazon Machine Images (AMIs). If you are not familiar with how to launch an EC2 instance, see Launching an Instance. I also assume you launched or will launch your instance in a private subnet. A private subnet is not directly accessible via the internet, and access to it requires either a VPN connection to your on-premises network or a jump host in a public subnet (a subnet with access to the internet). You must make sure that the EC2 instance can connect to the internet using a network address translation (NAT) instance or NAT gateway to communicate with Systems Manager and Amazon Inspector. The following diagram shows how you should structure your Amazon Virtual Private Cloud (VPC). You should also be familiar with Restoring an Amazon EBS Volume from a Snapshot and Attaching an Amazon EBS Volume to an Instance.

Later on, you will assign tasks to a maintenance window to patch your instances with Systems Manager. To do this, the AWS Identity and Access Management (IAM) user you are using for this post must have the iam:PassRole permission. This permission allows this IAM user to assign tasks to pass their own IAM permissions to the AWS service. In this example, when you assign a task to a maintenance window, IAM passes your credentials to Systems Manager. This safeguard ensures that the user cannot use the creation of tasks to elevate their IAM privileges because their own IAM privileges limit which tasks they can run against an EC2 instance. You should also authorize your IAM user to use EC2, Amazon Inspector, Amazon CloudWatch, and Systems Manager. You can achieve this by attaching the following AWS managed policies to the IAM user you are using for this example: AmazonInspectorFullAccess, AmazonEC2FullAccess, and AmazonSSMFullAccess.

Architectural overview

The following diagram illustrates the components of this solution’s architecture.

Diagram showing the components of this solution's architecture

For this blog post, Microsoft Windows EC2 is Amazon EC2 for Microsoft Windows Server 2012 R2 instances with attached Amazon Elastic Block Store (Amazon EBS) volumes, which are running in your VPC. These instances may be standalone Windows instances running your Windows workloads, or you may have joined them to an Active Directory domain controller. For instances joined to a domain, you can be using Active Directory running on an EC2 for Windows instance, or you can use AWS Directory Service for Microsoft Active Directory.

Amazon EC2 Systems Manager is a scalable tool for remote management of your EC2 instances. You will use the Systems Manager Run Command to install the Amazon Inspector agent. The agent enables EC2 instances to communicate with the Amazon Inspector service and run assessments, which I explain in detail later in this blog post. You also will create a Systems Manager association to keep your EC2 instances up to date with the latest security patches.

You can use the EBS Snapshot Scheduler to schedule automated snapshots at regular intervals. You will use it to set up regular snapshots of your Amazon EBS volumes. EBS Snapshot Scheduler is a prebuilt solution by AWS that you will deploy in your AWS account. With Amazon EBS snapshots, you pay only for the actual data you store. Snapshots save only the data that has changed since the previous snapshot, which minimizes your cost.

You will use Amazon Inspector to run security assessments on your EC2 for Windows Server instance. In this post, I show how to assess if your EC2 for Windows Server instance is vulnerable to any of the more than 50,000 CVEs registered with Amazon Inspector.

In today’s and tomorrow’s posts, I show you how to:

  1. Launch an EC2 instance with an IAM role, Amazon EBS volume, and tags that Systems Manager and Amazon Inspector will use.
  2. Configure Systems Manager to install the Amazon Inspector agent and patch your EC2 instances.
  3. Take EBS snapshots by using EBS Snapshot Scheduler to automate snapshots based on instance tags.
  4. Use Amazon Inspector to check if your EC2 instances running Microsoft Windows contain any common vulnerabilities and exposures (CVEs).

Step 1: Launch an EC2 instance

In this section, I show you how to launch your EC2 instances so that you can use Systems Manager with the instances and use instance tags with EBS Snapshot Scheduler to automate snapshots. This requires three things:

  • Create an IAM role for Systems Manager before launching your EC2 instance.
  • Launch your EC2 instance with Amazon EBS and the IAM role for Systems Manager.
  • Add tags to instances so that you can automate policies for which instances you take snapshots of and when.

Create an IAM role for Systems Manager

Before launching your EC2 instance, I recommend that you first create an IAM role for Systems Manager, which you will use to update the EC2 instance you will launch. AWS already provides a preconfigured policy that you can use for your new role, and it is called AmazonEC2RoleforSSM.

  1. Sign in to the IAM console and choose Roles in the navigation pane. Choose Create new role.
    Screenshot of choosing "Create role"
  2. In the role-creation workflow, choose AWS service > EC2 > EC2 to create a role for an EC2 instance.
    Screenshot of creating a role for an EC2 instance
  3. Choose the AmazonEC2RoleforSSM policy to attach it to the new role you are creating.
    Screenshot of attaching the AmazonEC2RoleforSSM policy to the new role you are creating
  4. Give the role a meaningful name (I chose EC2SSM) and description, and choose Create role.
    Screenshot of giving the role a name and description

Launch your EC2 instance

To follow along, you need an EC2 instance that is running Microsoft Windows Server 2012 R2 and that has an Amazon EBS volume attached. You can use any existing instance you may have or create a new instance.

When launching your new EC2 instance, be sure that:

  • The operating system is Microsoft Windows Server 2012 R2.
  • You attach at least one Amazon EBS volume to the EC2 instance.
  • You attach the newly created IAM role (EC2SSM).
  • The EC2 instance can connect to the internet through a network address translation (NAT) gateway or a NAT instance.
  • You create the tags shown in the following screenshot (you will use them later).

If you are using an already launched EC2 instance, you can attach the newly created role as described in Easily Replace or Attach an IAM Role to an Existing EC2 Instance by Using the EC2 Console.

Add tags

The final step of configuring your EC2 instances is to add tags. You will use these tags to configure Systems Manager in Step 2 of this blog post and to configure Amazon Inspector in Part 2. For this example, I add a tag key, Patch Group, and set the value to Windows Servers. I could have other groups of EC2 instances that I treat differently by having the same tag key but a different tag value. For example, I might have a collection of other servers with the Patch Group tag key with a value of IAS Servers.

Screenshot of adding tags

Note: You must wait a few minutes until the EC2 instance becomes available before you can proceed to the next section.

At this point, you now have at least one EC2 instance you can use to configure Systems Manager, use EBS Snapshot Scheduler, and use Amazon Inspector.

Note: If you have a large number of EC2 instances to tag, you may want to use the EC2 CreateTags API rather than manually apply tags to each instance.

Step 2: Configure Systems Manager

In this section, I show you how to use Systems Manager to apply operating system patches to your EC2 instances, and how to manage patch compliance.

To start, I will provide some background information about Systems Manager. Then, I will cover how to:

  • Create the Systems Manager IAM role so that Systems Manager is able to perform patch operations.
  • Associate a Systems Manager patch baseline with your instance to define which patches Systems Manager should apply.
  • Define a maintenance window to make sure Systems Manager patches your instance when you tell it to.
  • Monitor patch compliance to verify the patch state of your instances.

Systems Manager is a collection of capabilities that helps you automate management tasks for AWS-hosted instances on EC2 and your on-premises servers. In this post, I use Systems Manager for two purposes: to run remote commands and apply operating system patches. To learn about the full capabilities of Systems Manager, see What Is Amazon EC2 Systems Manager?

Patch management is an important measure to prevent malware from infecting your systems. Most malware attacks look for vulnerabilities that are publicly known and in most cases are already patched by the maker of the operating system. These publicly known vulnerabilities are well documented and therefore easier for an attacker to exploit than having to discover a new vulnerability.

Patches for these new vulnerabilities are available through Systems Manager within hours after Microsoft releases them. There are two prerequisites to use Systems Manager to apply operating system patches. First, you must attach the IAM role you created in the previous section, EC2SSM, to your EC2 instance. Second, you must install the Systems Manager agent on your EC2 instance. If you have used a recent Microsoft Windows Server 2012 R2 AMI published by AWS, Amazon has already installed the Systems Manager agent on your EC2 instance. You can confirm this by logging in to an EC2 instance and looking for Amazon SSM Agent under Programs and Features in Windows. To install the Systems Manager agent on an instance that does not have the agent preinstalled or if you want to use the Systems Manager agent on your on-premises servers, see the documentation about installing the Systems Manager agent. If you forgot to attach the newly created role when launching your EC2 instance or if you want to attach the role to already running EC2 instances, see Attach an AWS IAM Role to an Existing Amazon EC2 Instance by Using the AWS CLI or use the AWS Management Console.

To make sure your EC2 instance receives operating system patches from Systems Manager, you will use the default patch baseline provided and maintained by AWS, and you will define a maintenance window so that you control when your EC2 instances should receive patches. For the maintenance window to be able to run any tasks, you also must create a new role for Systems Manager. This role is a different kind of role than the one you created earlier: Systems Manager will use this role instead of EC2. Earlier we created the EC2SSM role with the AmazonEC2RoleforSSM policy, which allowed the Systems Manager agent on our instance to communicate with the Systems Manager service. Here we need a new role with the policy AmazonSSMMaintenanceWindowRole to make sure the Systems Manager service is able to execute commands on our instance.

Create the Systems Manager IAM role

To create the new IAM role for Systems Manager, follow the same procedure as in the previous section, but in Step 3, choose the AmazonSSMMaintenanceWindowRole policy instead of the previously selected AmazonEC2RoleforSSM policy.

Screenshot of creating the new IAM role for Systems Manager

Finish the wizard and give your new role a recognizable name. For example, I named my role MaintenanceWindowRole.

Screenshot of finishing the wizard and giving your new role a recognizable name

By default, only EC2 instances can assume this new role. You must update the trust policy to enable Systems Manager to assume this role.

To update the trust policy associated with this new role:

  1. Navigate to the IAM console and choose Roles in the navigation pane.
  2. Choose MaintenanceWindowRole and choose the Trust relationships tab. Then choose Edit trust relationship.
  3. Update the policy document by copying the following policy and pasting it in the Policy Document box. As you can see, I have added the ssm.amazonaws.com service to the list of allowed Principals that can assume this role. Choose Update Trust Policy.
    {
       "Version":"2012-10-17",
       "Statement":[
          {
             "Sid":"",
             "Effect":"Allow",
             "Principal":{
                "Service":[
                   "ec2.amazonaws.com",
                   "ssm.amazonaws.com"
               ]
             },
             "Action":"sts:AssumeRole"
          }
       ]
    }

Associate a Systems Manager patch baseline with your instance

Next, you are going to associate a Systems Manager patch baseline with your EC2 instance. A patch baseline defines which patches Systems Manager should apply. You will use the default patch baseline that AWS manages and maintains. Before you can associate the patch baseline with your instance, though, you must determine if Systems Manager recognizes your EC2 instance.

Navigate to the EC2 console, scroll down to Systems Manager Shared Resources in the navigation pane, and choose Managed Instances. Your new EC2 instance should be available there. If your instance is missing from the list, verify the following:

  1. Go to the EC2 console and verify your instance is running.
  2. Select your instance and confirm you attached the Systems Manager IAM role, EC2SSM.
  3. Make sure that you deployed a NAT gateway in your public subnet to ensure your VPC reflects the diagram at the start of this post so that the Systems Manager agent can connect to the Systems Manager internet endpoint.
  4. Check the Systems Manager Agent logs for any errors.

Now that you have confirmed that Systems Manager can manage your EC2 instance, it is time to associate the AWS maintained patch baseline with your EC2 instance:

  1. Choose Patch Baselines under Systems Manager Services in the navigation pane of the EC2 console.
  2. Choose the default patch baseline as highlighted in the following screenshot, and choose Modify Patch Groups in the Actions drop-down.
    Screenshot of choosing Modify Patch Groups in the Actions drop-down
  3. In the Patch group box, enter the same value you entered under the Patch Group tag of your EC2 instance in “Step 1: Configure your EC2 instance.” In this example, the value I enter is Windows Servers. Choose the check mark icon next to the patch group and choose Close.Screenshot of modifying the patch group

Define a maintenance window

Now that you have successfully set up a role and have associated a patch baseline with your EC2 instance, you will define a maintenance window so that you can control when your EC2 instances should receive patches. By creating multiple maintenance windows and assigning them to different patch groups, you can make sure your EC2 instances do not all reboot at the same time. The Patch Group resource tag you defined earlier will determine to which patch group an instance belongs.

To define a maintenance window:

  1. Navigate to the EC2 console, scroll down to Systems Manager Shared Resources in the navigation pane, and choose Maintenance Windows. Choose Create a Maintenance Window.
    Screenshot of starting to create a maintenance window in the Systems Manager console
  2. Select the Cron schedule builder to define the schedule for the maintenance window. In the example in the following screenshot, the maintenance window will start every Saturday at 10:00 P.M. UTC.
  3. To specify when your maintenance window will end, specify the duration. In this example, the four-hour maintenance window will end on the following Sunday morning at 2:00 A.M. UTC (in other words, four hours after it started).
  4. Systems manager completes all tasks that are in process, even if the maintenance window ends. In my example, I am choosing to prevent new tasks from starting within one hour of the end of my maintenance window because I estimated my patch operations might take longer than one hour to complete. Confirm the creation of the maintenance window by choosing Create maintenance window.
    Screenshot of completing all boxes in the maintenance window creation process
  5. After creating the maintenance window, you must register the EC2 instance to the maintenance window so that Systems Manager knows which EC2 instance it should patch in this maintenance window. To do so, choose Register new targets on the Targets tab of your newly created maintenance window. You can register your targets by using the same Patch Group tag you used before to associate the EC2 instance with the AWS-provided patch baseline.
    Screenshot of registering new targets
  6. Assign a task to the maintenance window that will install the operating system patches on your EC2 instance:
    1. Open Maintenance Windows in the EC2 console, select your previously created maintenance window, choose the Tasks tab, and choose Register run command task from the Register new task drop-down.
    2. Choose the AWS-RunPatchBaseline document from the list of available documents.
    3. For Parameters:
      1. For Role, choose the role you created previously (called MaintenanceWindowRole).
      2. For Execute on, specify how many EC2 instances Systems Manager should patch at the same time. If you have a large number of EC2 instances and want to patch all EC2 instances within the defined time, make sure this number is not too low. For example, if you have 1,000 EC2 instances, a maintenance window of 4 hours, and 2 hours’ time for patching, make this number at least 500.
      3. For Stop after, specify after how many errors Systems Manager should stop.
      4. For Operation, choose Install to make sure to install the patches.
        Screenshot of stipulating maintenance window parameters

Now, you must wait for the maintenance window to run at least once according to the schedule you defined earlier. Note that if you don’t want to wait, you can adjust the schedule to run sooner by choosing Edit maintenance window on the Maintenance Windows page of Systems Manager. If your maintenance window has expired, you can check the status of any maintenance tasks Systems Manager has performed on the Maintenance Windows page of Systems Manager and select your maintenance window.

Screenshot of the maintenance window successfully created

Monitor patch compliance

You also can see the overall patch compliance of all EC2 instances that are part of defined patch groups by choosing Patch Compliance under Systems Manager Services in the navigation pane of the EC2 console. You can filter by Patch Group to see how many EC2 instances within the selected patch group are up to date, how many EC2 instances are missing updates, and how many EC2 instances are in an error state.

Screenshot of monitoring patch compliance

In this section, you have set everything up for patch management on your instance. Now you know how to patch your EC2 instance in a controlled manner and how to check if your EC2 instance is compliant with the patch baseline you have defined. Of course, I recommend that you apply these steps to all EC2 instances you manage.

Summary

In Part 1 of this blog post, I have shown how to configure EC2 instances for use with Systems Manager, EBS Snapshot Scheduler, and Amazon Inspector. I also have shown how to use Systems Manager to keep your Microsoft Windows–based EC2 instances up to date. In Part 2 of this blog post tomorrow, I will show how to take regular snapshots of your data by using EBS Snapshot Scheduler and how to use Amazon Inspector to check if your EC2 instances running Microsoft Windows contain any CVEs.

If you have comments about this post, submit them in the “Comments” section below. If you have questions about or issues implementing this solution, start a new thread on the EC2 forum or the Amazon Inspector forum, or contact AWS Support.

– Koen

How AWS Managed Microsoft AD Helps to Simplify the Deployment and Improve the Security of Active Directory–Integrated .NET Applications

Post Syndicated from Peter Pereira original https://aws.amazon.com/blogs/security/how-aws-managed-microsoft-ad-helps-to-simplify-the-deployment-and-improve-the-security-of-active-directory-integrated-net-applications/

Companies using .NET applications to access sensitive user information, such as employee salary, Social Security Number, and credit card information, need an easy and secure way to manage access for users and applications.

For example, let’s say that your company has a .NET payroll application. You want your Human Resources (HR) team to manage and update the payroll data for all the employees in your company. You also want your employees to be able to see their own payroll information in the application. To meet these requirements in a user-friendly and secure way, you want to manage access to the .NET application by using your existing Microsoft Active Directory identities. This enables you to provide users with single sign-on (SSO) access to the .NET application and to manage permissions using Active Directory groups. You also want the .NET application to authenticate itself to access the database, and to limit access to the data in the database based on the identity of the application user.

Microsoft Active Directory supports these requirements through group Managed Service Accounts (gMSAs) and Kerberos constrained delegation (KCD). AWS Directory Service for Microsoft Active Directory, also known as AWS Managed Microsoft AD, enables you to manage gMSAs and KCD through your administrative account, helping you to migrate and develop .NET applications that need these native Active Directory features.

In this blog post, I give an overview of how to use AWS Managed Microsoft AD to manage gMSAs and KCD and demonstrate how you can configure a gMSA and KCD in six steps for a .NET application:

  1. Create your AWS Managed Microsoft AD.
  2. Create your Amazon RDS for SQL Server database.
  3. Create a gMSA for your .NET application.
  4. Deploy your .NET application.
  5. Configure your .NET application to use the gMSA.
  6. Configure KCD for your .NET application.

Solution overview

The following diagram shows the components of a .NET application that uses Amazon RDS for SQL Server with a gMSA and KCD. The diagram also illustrates authentication and access and is numbered to show the six key steps required to use a gMSA and KCD. To deploy this solution, the AWS Managed Microsoft AD directory must be in the same Amazon Virtual Private Cloud (VPC) as RDS for SQL Server. For this example, my company name is Example Corp., and my directory uses the domain name, example.com.

Diagram showing the components of a .NET application that uses Amazon RDS for SQL Server with a gMSA and KCD

Deploy the solution

The following six steps (numbered to correlate with the preceding diagram) walk you through configuring and using a gMSA and KCD.

1. Create your AWS Managed Microsoft AD directory

Using the Directory Service console, create your AWS Managed Microsoft AD directory in your Amazon VPC. In my example, my domain name is example.com.

Image of creating an AWS Managed Microsoft AD directory in an Amazon VPC

2. Create your Amazon RDS for SQL Server database

Using the RDS console, create your Amazon RDS for SQL Server database instance in the same Amazon VPC where your directory is running, and enable Windows Authentication. To enable Windows Authentication, select your directory in the Microsoft SQL Server Windows Authentication section in the Configure Advanced Settings step of the database creation workflow (see the following screenshot).

In my example, I create my Amazon RDS for SQL Server db-example database, and enable Windows Authentication to allow my db-example database to authenticate against my example.com directory.

Screenshot of configuring advanced settings

3. Create a gMSA for your .NET application

Now that you have deployed your directory, database, and application, you can create a gMSA for your .NET application.

To perform the next steps, you must install the Active Directory administration tools on a Windows server that is joined to your AWS Managed Microsoft AD directory domain. If you do not have a Windows server joined to your directory domain, you can deploy a new Amazon EC2 for Microsoft Windows Server instance and join it to your directory domain.

To create a gMSA for your .NET application:

  1. Log on to the instance on which you installed the Active Directory administration tools by using a user that is a member of the Admins security group or the Managed Service Accounts Admins security group in your organizational unit (OU). For my example, I use the Admin user in the example OU.

Screenshot of logging on to the instance on which you installed the Active Directory administration tools

  1. Identify which .NET application servers (hosts) will run your .NET application. Create a new security group in your OU and add your .NET application servers as members of this new group. This allows a group of application servers to use a single gMSA, instead of creating one gMSA for each server. In my example, I create a group, App_server_grp, in my example OU. I also add Appserver1, which is my .NET application server computer name, as a member of this new group.

Screenshot of creating a new security group

  1. Create a gMSA in your directory by running Windows PowerShell from the Start menu. The basic syntax to create the gMSA at the Windows PowerShell command prompt follows.
    PS C:\Users\admin> New-ADServiceAccount -name [gMSAname] -DNSHostName [domainname] -PrincipalsAllowedToRetrieveManagedPassword [AppServersSecurityGroup] -TrustedForDelegation $truedn <Enter>

    In my example, the gMSAname is gMSAexample, the DNSHostName is example.com, and the PrincipalsAllowedToRetrieveManagedPassword is the recently created security group, App_server_grp.

    PS C:\Users\admin> New-ADServiceAccount -name gMSAexample -DNSHostName example.com -PrincipalsAllowedToRetrieveManagedPassword App_server_grp -TrustedForDelegation $truedn <Enter>

    To confirm you created the gMSA, you can run the Get-ADServiceAccount command from the PowerShell command prompt.

    PS C:\Users\admin> Get-ADServiceAccount gMSAexample <Enter>

    DistinguishedName : CN=gMSAexample,CN=Managed Service Accounts,DC=example,DC=com
    Enabled           : True
    Name              : gMSAexample
    ObjectClass       : msDS-GroupManagedServiceAccount
    ObjectGUID        : 24d8b68d-36d5-4dc3-b0a9-edbbb5dc8a5b
    SamAccountName    : gMSAexample$
    SID               : S-1-5-21-2100421304-991410377-951759617-1603
    UserPrincipalName :

    You also can confirm you created the gMSA by opening the Active Directory Users and Computers utility located in your Administrative Tools folder, expand the domain (example.com in my case), and expand the Managed Service Accounts folder.
    Screenshot of confirming the creation of the gMSA

4. Deploy your .NET application

Deploy your .NET application on IIS on Amazon EC2 for Windows Server instances. For this step, I assume you are the application’s expert and already know how to deploy it. Make sure that all of your instances are joined to your directory.

5. Configure your .NET application to use the gMSA

You can configure your .NET application to use the gMSA to enforce strong password security policy and ensure password rotation of your service account. This helps to improve the security and simplify the management of your .NET application. Configure your .NET application in two steps:

  1. Grant to gMSA the required permissions to run your .NET application in the respective application folders. This is a critical step because when you change the application pool identity account to use gMSA, downtime can occur if the gMSA does not have the application’s required permissions. Therefore, make sure you first test the configurations in your development and test environments.
  2. Configure your application pool identity on IIS to use the gMSA as the service account. When you configure a gMSA as the service account, you include the $ at the end of the gMSA name. You do not need to provide a password because AWS Managed Microsoft AD automatically creates and rotates the password. In my example, my service account is gMSAexample$, as shown in the following screenshot.

Screenshot of configuring application pool identity

You have completed all the steps to use gMSA to create and rotate your .NET application service account password! Now, you will configure KCD for your .NET application.

6. Configure KCD for your .NET application

You now are ready to allow your .NET application to have access to other services by using the user identity’s permissions instead of the application service account’s permissions. Note that KCD and gMSA are independent features, which means you do not have to create a gMSA to use KCD. For this example, I am using both features to show how you can use them together. To configure a regular service account such as a user or local built-in account, see the Kerberos constrained delegation with ASP.NET blog post on MSDN.

In my example, my goal is to delegate to the gMSAexample account the ability to enforce the user’s permissions to my db-example SQL Server database, instead of the gMSAexample account’s permissions. For this, I have to update the msDS-AllowedToDelegateTo gMSA attribute. The value for this attribute is the service principal name (SPN) of the service instance that you are targeting, which in this case is the db-example Amazon RDS for SQL Server database.

The SPN format for the msDS-AllowedToDelegateTo attribute is a combination of the service class, the Kerberos authentication endpoint, and the port number. The Amazon RDS for SQL Server Kerberos authentication endpoint format is [database_name].[domain_name]. The value for my msDS-AllowedToDelegateTo attribute is MSSQLSvc/db-example.example.com:1433, where MSSQLSvc and 1433 are the SQL Server Database service class and port number standards, respectively.

Follow these steps to perform the msDS-AllowedToDelegateTo gMSA attribute configuration:

  1. Log on to your Active Directory management instance with a user identity that is a member of the Kerberos Delegation Admins security group. In this case, I will use admin.
  2. Open the Active Directory Users and Groups utility located in your Administrative Tools folder, choose View, and then choose Advanced Features.
  3. Expand your domain name (example.com in this example), and then choose the Managed Service Accounts security group. Right-click the gMSA account for the application pool you want to enable for Kerberos delegation, choose Properties, and choose the Attribute Editor tab.
  4. Search for the msDS-AllowedToDelegateTo attribute on the Attribute Editor tab and choose Edit.
  5. Enter the MSSQLSvc/db-example.example.com:1433 value and choose Add.
    Screenshot of entering the value of the multi-valued string
  6. Choose OK and Apply, and your KCD configuration is complete.

Congratulations! At this point, your application is using a gMSA rather than an embedded static user identity and password, and the application is able to access SQL Server using the identity of the application user. The gMSA eliminates the need for you to rotate the application’s password manually, and it allows you to better scope permissions for the application. When you use KCD, you can enforce access to your database consistently based on user identities at the database level, which prevents improper access that might otherwise occur because of an application error.

Summary

In this blog post, I demonstrated how to simplify the deployment and improve the security of your .NET application by using a group Managed Service Account and Kerberos constrained delegation with your AWS Managed Microsoft AD directory. I also outlined the main steps to get your .NET environment up and running on a managed Active Directory and SQL Server infrastructure. This approach will make it easier for you to build new .NET applications in the AWS Cloud or migrate existing ones in a more secure way.

For additional information about using group Managed Service Accounts and Kerberos constrained delegation with your AWS Managed Microsoft AD directory, see the AWS Directory Service documentation.

To learn more about AWS Directory Service, see the AWS Directory Service home page. If you have questions about this post or its solution, start a new thread on the Directory Service forum.

– Peter

Now Available – Compute-Intensive C5 Instances for Amazon EC2

Post Syndicated from Jeff Barr original https://aws.amazon.com/blogs/aws/now-available-compute-intensive-c5-instances-for-amazon-ec2/

I’m thrilled to announce that the new compute-intensive C5 instances are available today in six sizes for launch in three AWS regions!

These instances designed for compute-heavy applications like batch processing, distributed analytics, high-performance computing (HPC), ad serving, highly scalable multiplayer gaming, and video encoding. The new instances offer a 25% price/performance improvement over the C4 instances, with over 50% for some workloads. They also have additional memory per vCPU, and (for code that can make use of the new AVX-512 instructions), twice the performance for vector and floating point workloads.

Over the years we have been working non-stop to provide our customers with the best possible networking, storage, and compute performance, with a long-term focus on offloading many types of work to dedicated hardware designed and built by AWS. The C5 instance type incorporates the latest generation of our hardware offloads, and also takes another big step forward with the addition of a new hypervisor that runs hand-in-glove with our hardware. The new hypervisor allows us to give you access to all of the processing power provided by the host hardware, while also making performance even more consistent and further raising the bar on security. We’ll be sharing many technical details about it at AWS re:Invent.

The New Instances
The C5 instances are available in six sizes:

Instance Name vCPUs
RAM
EBS Bandwidth Network Bandwidth
c5.large 2 4 GiB Up to 2.25 Gbps Up to 10 Gbps
c5.xlarge 4 8 GiB Up to 2.25 Gbps Up to 10 Gbps
c5.2xlarge 8 16 GiB Up to 2.25 Gbps Up to 10 Gbps
c5.4xlarge 16 32 GiB 2.25 Gbps Up to 10 Gbps
c5.9xlarge 36 72 GiB 4.5 Gbps 10 Gbps
c5.18xlarge 72 144 GiB 9 Gbps 25 Gbps

Each vCPU is a hardware hyperthread on a 3.0 GHz Intel Xeon Platinum 8000-series processor. This custom processor, optimized for EC2, allows you have full control over the C-states on the two largest sizes, allowing you to run a single core at up to 3.5 GHz using Intel Turbo Boost Technology.

As you can see from the table, the four smallest instance sizes offer substantially more EBS and network bandwidth than the previous generation of compute-intensive instances.

Because all networking and storage functionality is implemented in hardware, C5 instances require HVM AMIs that include drivers for the Elastic Network Adapter (ENA) and NVMe. The latest Amazon Linux, Microsoft Windows, Ubuntu, RHEL, CentOS, SLES, Debian, and FreeBSD AMIs all support C5 instances. If you are doing machine learning inferencing, or other compute-intensive work, be sure to check out the most recent version of the Intel Math Kernel Library. It has been optimized for the Intel® Xeon® Platinum processor and has the potential to greatly accelerate your work.

In order to remain compatible with instances that use the Xen hypervisor, the device names for EBS volumes will continue to use the existing /dev/sd and /dev/xvd prefixes. The device name that you provide when you attach a volume to an instance is not used because the NVMe driver assigns its own device name (read Amazon EBS and NVMe to learn more):

The nvme command displays additional information about each volume (install it using sudo yum -y install nvme-cli if necessary):

The SN field in the output can be mapped to an EBS volume ID by inserting a “-” after the “vol” prefix (sadly, the NVMe SN field is not long enough to store the entire ID). Here’s a simple script that uses this information to create an EBS snapshot of each attached volume:

$ sudo nvme list | \
  awk '/dev/ {print(gensub("vol", "vol-", 1, $2))}' | \
  xargs -n 1 aws ec2 create-snapshot --volume-id

With a little more work (and a lot of testing), you could create a script that expands EBS volumes that are getting full.

Getting to C5
As I mentioned earlier, our effort to offload work to hardware accelerators has been underway for quite some time. Here’s a recap:

CC1 – Launched in 2010, the CC1 was designed to support scale-out HPC applications. It was the first EC2 instance to support 10 Gbps networking and one of the first to support HVM virtualization. The network fabric that we designed for the CC1 (based on our own switch hardware) has become the standard for all AWS data centers.

C3 – Launched in 2013, the C3 introduced Enhanced Networking and uses dedicated hardware accelerators to support the software defined network inside of each Virtual Private Cloud (VPC). Hardware virtualization removes the I/O stack from the hypervisor in favor of direct access by the guest OS, resulting in higher performance and reduced variability.

C4 – Launched in 2015, the C4 instances are EBS Optimized by default via a dedicated network connection, and also offload EBS processing (including CPU-intensive crypto operations for encrypted EBS volumes) to a hardware accelerator.

C5 – Launched today, the hypervisor that powers the C5 instances allow practically all of the resources of the host CPU to be devoted to customer instances. The ENA networking and the NVMe interface to EBS are both powered by hardware accelerators. The instances do not require (or support) the Xen paravirtual networking or block device drivers, both of which have been removed in order to increase efficiency.

Going forward, we’ll use this hypervisor to power other instance types and plan to share additional technical details in a set of AWS re:Invent sessions.

Launch a C5 Today
You can launch C5 instances today in the US East (Northern Virginia), US West (Oregon), and EU (Ireland) Regions in On-Demand and Spot form (Reserved Instances are also available), with additional Regions in the works.

One quick note before I go: The current NVMe driver is not optimized for high-performance sequential workloads and we don’t recommend the use of C5 instances in conjunction with sc1 or st1 volumes. We are aware of this issue and have been working to optimize the driver for this important use case.

Jeff;

AWS Online Tech Talks – November 2017

Post Syndicated from Sara Rodas original https://aws.amazon.com/blogs/aws/aws-online-tech-talks-november-2017/

Leaves are crunching under my boots, Halloween is tomorrow, and pumpkin is having its annual moment in the sun – it’s fall everybody! And just in time to celebrate, we have whipped up a fresh batch of pumpkin spice Tech Talks. Grab your planner (Outlook calendar) and pencil these puppies in. This month we are covering re:Invent, serverless, and everything in between.

November 2017 – Schedule

Noted below are the upcoming scheduled live, online technical sessions being held during the month of November. Make sure to register ahead of time so you won’t miss out on these free talks conducted by AWS subject matter experts.

Webinars featured this month are:

Monday, November 6

Compute

9:00 – 9:40 AM PDT: Set it and Forget it: Auto Scaling Target Tracking Policies

Tuesday, November 7

Big Data

9:00 – 9:40 AM PDT: Real-time Application Monitoring with Amazon Kinesis and Amazon CloudWatch

Compute

10:30 – 11:10 AM PDT: Simplify Microsoft Windows Server Management with Amazon Lightsail

Mobile

12:00 – 12:40 PM PDT: Deep Dive on Amazon SES What’s New

Wednesday, November 8

Databases

10:30 – 11:10 AM PDT: Migrating Your Oracle Database to PostgreSQL

Compute

12:00 – 12:40 PM PDT: Run Your CI/CD Pipeline at Scale for a Fraction of the Cost

Thursday, November 9

Databases

10:30 – 11:10 AM PDT: Migrating Your Oracle Database to PostgreSQL

Containers

9:00 – 9:40 AM PDT: Managing Container Images with Amazon ECR

Big Data

12:00 – 12:40 PM PDT: Amazon Elasticsearch Service Security Deep Dive

Monday, November 13

re:Invent

10:30 – 11:10 AM PDT: AWS re:Invent 2017: Know Before You Go

5:00 – 5:40 PM PDT: AWS re:Invent 2017: Know Before You Go

Tuesday, November 14

AI

9:00 – 9:40 AM PDT: Sentiment Analysis Using Apache MXNet and Gluon

10:30 – 11:10 AM PDT: Bringing Characters to Life with Amazon Polly Text-to-Speech

IoT

12:00 – 12:40 PM PDT: Essential Capabilities of an IoT Cloud Platform

Enterprise

2:00 – 2:40 PM PDT: Everything you wanted to know about licensing Windows workloads on AWS, but were afraid to ask

Wednesday, November 15

Security & Identity

9:00 – 9:40 AM PDT: How to Integrate AWS Directory Service with Office365

Storage

10:30 – 11:10 AM PDT: Disaster Recovery Options with AWS

Hands on Lab

12:30 – 2:00 PM PDT: Hands on Lab: Windows Workloads

Thursday, November 16

Serverless

9:00 – 9:40 AM PDT: Building Serverless Websites with [email protected]

Hands on Lab

12:30 – 2:00 PM PDT: Hands on Lab: Deploy .NET Code to AWS from Visual Studio

– Sara

How to Prepare for AWS’s Move to Its Own Certificate Authority

Post Syndicated from Jonathan Kozolchyk original https://aws.amazon.com/blogs/security/how-to-prepare-for-aws-move-to-its-own-certificate-authority/

AWS Certificate Manager image

Transport Layer Security (TLS, formerly called Secure Sockets Layer [SSL]) is essential for encrypting information that is exchanged on the internet. For example, Amazon.com uses TLS for all traffic on its website, and AWS uses it to secure calls to AWS services.

An electronic document called a certificate verifies the identity of the server when creating such an encrypted connection. The certificate helps establish proof that your web browser is communicating securely with the website that you typed in your browser’s address field. Certificate Authorities, also known as CAs, issue certificates to specific domains. When a domain presents a certificate that is issued by a trusted CA, your browser or application knows it’s safe to make the connection.

In January 2016, AWS launched AWS Certificate Manager (ACM), a service that lets you easily provision, manage, and deploy SSL/TLS certificates for use with AWS services. These certificates are available for no additional charge through Amazon’s own CA: Amazon Trust Services. For browsers and other applications to trust a certificate, the certificate’s issuer must be included in the browser’s trust store, which is a list of trusted CAs. If the issuing CA is not in the trust store, the browser will display an error message (see an example) and applications will show an application-specific error. To ensure the ubiquity of the Amazon Trust Services CA, AWS purchased the Starfield Services CA, a root found in most browsers and which has been valid since 2005. This means you shouldn’t have to take any action to use the certificates issued by Amazon Trust Services.

AWS has been offering free certificates to AWS customers from the Amazon Trust Services CA. Now, AWS is in the process of moving certificates for services such as Amazon EC2 and Amazon DynamoDB to use certificates from Amazon Trust Services as well. Most software doesn’t need to be changed to handle this transition, but there are exceptions. In this blog post, I show you how to verify that you are prepared to use the Amazon Trust Services CA.

How to tell if the Amazon Trust Services CAs are in your trust store

The following table lists the Amazon Trust Services certificates. To verify that these certificates are in your browser’s trust store, click each Test URL in the following table to verify that it works for you. When a Test URL does not work, it displays an error similar to this example.

Distinguished name SHA-256 hash of subject public key information Test URL
CN=Amazon Root CA 1,O=Amazon,C=US fbe3018031f9586bcbf41727e417b7d1c45c2f47f93be372a17b96b50757d5a2 Test URL
CN=Amazon Root CA 2,O=Amazon,C=US 7f4296fc5b6a4e3b35d3c369623e364ab1af381d8fa7121533c9d6c633ea2461 Test URL
CN=Amazon Root CA 3,O=Amazon,C=US 36abc32656acfc645c61b71613c4bf21c787f5cabbee48348d58597803d7abc9 Test URL
CN=Amazon Root CA 4,O=Amazon,C=US f7ecded5c66047d28ed6466b543c40e0743abe81d109254dcf845d4c2c7853c5 Test URL
CN=Starfield Services Root Certificate Authority – G2,O=Starfield Technologies\, Inc.,L=Scottsdale,ST=Arizona,C=US 2b071c59a0a0ae76b0eadb2bad23bad4580b69c3601b630c2eaf0613afa83f92 Test URL
Starfield Class 2 Certification Authority 2ce1cb0bf9d2f9e102993fbe215152c3b2dd0cabde1c68e5319b839154dbb7f5 Test URL

What to do if the Amazon Trust Services CAs are not in your trust store

If your tests of any of the Test URLs failed, you must update your trust store. The easiest way to update your trust store is to upgrade the operating system or browser that you are using.

You will find the Amazon Trust Services CAs in the following operating systems (release dates are in parentheses):

  • Microsoft Windows versions that have January 2005 or later updates installed, Windows Vista, Windows 7, Windows Server 2008, and newer versions
  • Mac OS X 10.4 with Java for Mac OS X 10.4 Release 5, Mac OS X 10.5 and newer versions
  • Red Hat Enterprise Linux 5 (March 2007), Linux 6, and Linux 7 and CentOS 5, CentOS 6, and CentOS 7
  • Ubuntu 8.10
  • Debian 5.0
  • Amazon Linux (all versions)
  • Java 1.4.2_12, Jave 5 update 2, and all newer versions, including Java 6, Java 7, and Java 8

All modern browsers trust Amazon’s CAs. You can update the certificate bundle in your browser simply by updating your browser. You can find instructions for updating the following browsers on their respective websites:

If your application is using a custom trust store, you must add the Amazon root CAs to your application’s trust store. The instructions for doing this vary based on the application or platform. Please refer to the documentation for the application or platform you are using.

AWS SDKs and CLIs

Most AWS SDKs and CLIs are not impacted by the transition to the Amazon Trust Services CA. If you are using a version of the Python AWS SDK or CLI released before February 5, 2015, you must upgrade. The .NET, Java, PHP, Go, JavaScript, and C++ SDKs and CLIs do not bundle any certificates, so their certificates come from the underlying operating system. The Ruby SDK has included at least one of the required CAs since June 10, 2015. Before that date, the Ruby V2 SDK did not bundle certificates.

Certificate pinning

If you are using a technique called certificate pinning to lock down the CAs you trust on a domain-by-domain basis, you must adjust your pinning to include the Amazon Trust Services CAs. Certificate pinning helps defend you from an attacker using misissued certificates to fool an application into creating a connection to a spoofed host (an illegitimate host masquerading as a legitimate host). The restriction to a specific, pinned certificate is made by checking that the certificate issued is the expected certificate. This is done by checking that the hash of the certificate public key received from the server matches the expected hash stored in the application. If the hashes do not match, the code stops the connection.

AWS recommends against using certificate pinning because it introduces a potential availability risk. If the certificate to which you pin is replaced, your application will fail to connect. If your use case requires pinning, we recommend that you pin to a CA rather than to an individual certificate. If you are pinning to an Amazon Trust Services CA, you should pin to all CAs shown in the table earlier in this post.

If you have comments about this post, submit them in the “Comments” section below. If you have questions about this post, start a new thread on the ACM forum.

– Jonathan

Introducing AWS Directory Service for Microsoft Active Directory (Standard Edition)

Post Syndicated from Peter Pereira original https://aws.amazon.com/blogs/security/introducing-aws-directory-service-for-microsoft-active-directory-standard-edition/

Today, AWS introduced AWS Directory Service for Microsoft Active Directory (Standard Edition), also known as AWS Microsoft AD (Standard Edition), which is managed Microsoft Active Directory (AD) that is performance optimized for small and midsize businesses. AWS Microsoft AD (Standard Edition) offers you a highly available and cost-effective primary directory in the AWS Cloud that you can use to manage users, groups, and computers. It enables you to join Amazon EC2 instances to your domain easily and supports many AWS and third-party applications and services. It also can support most of the common use cases of small and midsize businesses. When you use AWS Microsoft AD (Standard Edition) as your primary directory, you can manage access and provide single sign-on (SSO) to cloud applications such as Microsoft Office 365. If you have an existing Microsoft AD directory, you can also use AWS Microsoft AD (Standard Edition) as a resource forest that contains primarily computers and groups, allowing you to migrate your AD-aware applications to the AWS Cloud while using existing on-premises AD credentials.

In this blog post, I help you get started by answering three main questions about AWS Microsoft AD (Standard Edition):

  1. What do I get?
  2. How can I use it?
  3. What are the key features?

After answering these questions, I show how you can get started with creating and using your own AWS Microsoft AD (Standard Edition) directory.

1. What do I get?

When you create an AWS Microsoft AD (Standard Edition) directory, AWS deploys two Microsoft AD domain controllers powered by Microsoft Windows Server 2012 R2 in your Amazon Virtual Private Cloud (VPC). To help deliver high availability, the domain controllers run in different Availability Zones in the AWS Region of your choice.

As a managed service, AWS Microsoft AD (Standard Edition) configures directory replication, automates daily snapshots, and handles all patching and software updates. In addition, AWS Microsoft AD (Standard Edition) monitors and automatically recovers domain controllers in the event of a failure.

AWS Microsoft AD (Standard Edition) has been optimized as a primary directory for small and midsize businesses with the capacity to support approximately 5,000 employees. With 1 GB of directory object storage, AWS Microsoft AD (Standard Edition) has the capacity to store 30,000 or more total directory objects (users, groups, and computers). AWS Microsoft AD (Standard Edition) also gives you the option to add domain controllers to meet the specific performance demands of your applications. You also can use AWS Microsoft AD (Standard Edition) as a resource forest with a trust relationship to your on-premises directory.

2. How can I use it?

With AWS Microsoft AD (Standard Edition), you can share a single directory for multiple use cases. For example, you can share a directory to authenticate and authorize access for .NET applications, Amazon RDS for SQL Server with Windows Authentication enabled, and Amazon Chime for messaging and video conferencing.

The following diagram shows some of the use cases for your AWS Microsoft AD (Standard Edition) directory, including the ability to grant your users access to external cloud applications and allow your on-premises AD users to manage and have access to resources in the AWS Cloud. Click the diagram to see a larger version.

Diagram showing some ways you can use AWS Microsoft AD (Standard Edition)--click the diagram to see a larger version

Use case 1: Sign in to AWS applications and services with AD credentials

You can enable multiple AWS applications and services such as the AWS Management Console, Amazon WorkSpaces, and Amazon RDS for SQL Server to use your AWS Microsoft AD (Standard Edition) directory. When you enable an AWS application or service in your directory, your users can access the application or service with their AD credentials.

For example, you can enable your users to sign in to the AWS Management Console with their AD credentials. To do this, you enable the AWS Management Console as an application in your directory, and then assign your AD users and groups to IAM roles. When your users sign in to the AWS Management Console, they assume an IAM role to manage AWS resources. This makes it easy for you to grant your users access to the AWS Management Console without needing to configure and manage a separate SAML infrastructure.

Use case 2: Manage Amazon EC2 instances

Using familiar AD administration tools, you can apply AD Group Policy objects (GPOs) to centrally manage your Amazon EC2 for Windows or Linux instances by joining your instances to your AWS Microsoft AD (Standard Edition) domain.

In addition, your users can sign in to your instances with their AD credentials. This eliminates the need to use individual instance credentials or distribute private key (PEM) files. This makes it easier for you to instantly grant or revoke access to users by using AD user administration tools you already use.

Use case 3: Provide directory services to your AD-aware workloads

AWS Microsoft AD (Standard Edition) is an actual Microsoft AD that enables you to run traditional AD-aware workloads such as Remote Desktop Licensing Manager, Microsoft SharePoint, and Microsoft SQL Server Always On in the AWS Cloud. AWS Microsoft AD (Standard Edition) also helps you to simplify and improve the security of AD-integrated .NET applications by using group Managed Service Accounts (gMSAs) and Kerberos constrained delegation (KCD).

Use case 4: SSO to Office 365 and other cloud applications

You can use AWS Microsoft AD (Standard Edition) to provide SSO for cloud applications. You can use Azure AD Connect to synchronize your users into Azure AD, and then use Active Directory Federation Services (AD FS) so that your users can access Microsoft Office 365 and other SAML 2.0 cloud applications by using their AD credentials.

Use case 5: Extend your on-premises AD to the AWS Cloud

If you already have an AD infrastructure and want to use it when migrating AD-aware workloads to the AWS Cloud, AWS Microsoft AD (Standard Edition) can help. You can use AD trusts to connect AWS Microsoft AD (Standard Edition) to your existing AD. This means your users can access AD-aware and AWS applications with their on-premises AD credentials, without needing you to synchronize users, groups, or passwords.

For example, your users can sign in to the AWS Management Console and Amazon WorkSpaces by using their existing AD user names and passwords. Also, when you use AD-aware applications such as SharePoint with AWS Microsoft AD (Standard Edition), your logged-in Windows users can access these applications without needing to enter credentials again.

3. What are the key features?

AWS Microsoft AD (Standard Edition) includes the features detailed in this section.

Extend your AD schema

With AWS Microsoft AD, you can run customized AD-integrated applications that require changes to your directory schema, which defines the structures of your directory. The schema is composed of object classes such as user objects, which contain attributes such as user names. AWS Microsoft AD lets you extend the schema by adding new AD attributes or object classes that are not present in the core AD attributes and classes.

For example, if you have a human resources application that uses employee badge color to assign specific benefits, you can extend the schema to include a badge color attribute in the user object class of your directory. To learn more, see How to Move More Custom Applications to the AWS Cloud with AWS Directory Service.

Create user-specific password policies

With user-specific password policies, you can apply specific restrictions and account lockout policies to different types of users in your AWS Microsoft AD (Standard Edition) domain. For example, you can enforce strong passwords and frequent password change policies for administrators, and use less-restrictive policies with moderate account lockout policies for general users.

Add domain controllers

You can increase the performance and redundancy of your directory by adding domain controllers. This can help improve application performance by enabling directory clients to load-balance their requests across a larger number of domain controllers.

Encrypt directory traffic

You can use AWS Microsoft AD (Standard Edition) to encrypt Lightweight Directory Access Protocol (LDAP) communication between your applications and your directory. By enabling LDAP over Secure Sockets Layer (SSL)/Transport Layer Security (TLS), also called LDAPS, you encrypt your LDAP communications end to end. This helps you to protect sensitive information you keep in your directory when it is accessed over untrusted networks.

Improve the security of signing in to AWS services by using multi-factor authentication (MFA)

You can improve the security of signing in to AWS services, such as Amazon WorkSpaces and Amazon QuickSight, by enabling MFA in your AWS Microsoft AD (Standard Edition) directory. With MFA, your users must enter a one-time passcode (OTP) in addition to their AD user names and passwords to access AWS applications and services you enable in AWS Microsoft AD (Standard Edition).

Get started

To get started, use the Directory Service console to create your first directory with just a few clicks. If you have not used Directory Service before, you may be eligible for a 30-day limited free trial.

Summary

In this blog post, I explained what AWS Microsoft AD (Standard Edition) is and how you can use it. With a single directory, you can address many use cases for your business, making it easier to migrate and run your AD-aware workloads in the AWS Cloud, provide access to AWS applications and services, and connect to other cloud applications. To learn more about AWS Microsoft AD, see the Directory Service home page.

If you have comments about this post, submit them in the “Comments” section below. If you have questions about this blog post, start a new thread on the Directory Service forum.

– Peter

Federate Database User Authentication Easily with IAM and Amazon Redshift

Post Syndicated from Thiyagarajan Arumugam original https://aws.amazon.com/blogs/big-data/federate-database-user-authentication-easily-with-iam-and-amazon-redshift/

Managing database users though federation allows you to manage authentication and authorization procedures centrally. Amazon Redshift now supports database authentication with IAM, enabling user authentication though enterprise federation. No need to manage separate database users and passwords to further ease the database administration. You can now manage users outside of AWS and authenticate them for access to an Amazon Redshift data warehouse. Do this by integrating IAM authentication and a third-party SAML-2.0 identity provider (IdP), such as AD FS, PingFederate, or Okta. In addition, database users can also be automatically created at their first login based on corporate permissions.

In this post, I demonstrate how you can extend the federation to enable single sign-on (SSO) to the Amazon Redshift data warehouse.

SAML and Amazon Redshift

AWS supports Security Assertion Markup Language (SAML) 2.0, which is an open standard for identity federation used by many IdPs. SAML enables federated SSO, which enables your users to sign in to the AWS Management Console. Users can also make programmatic calls to AWS API actions by using assertions from a SAML-compliant IdP. For example, if you use Microsoft Active Directory for corporate directories, you may be familiar with how Active Directory and AD FS work together to enable federation. For more information, see the Enabling Federation to AWS Using Windows Active Directory, AD FS, and SAML 2.0 AWS Security Blog post.

Amazon Redshift now provides the GetClusterCredentials API operation that allows you to generate temporary database user credentials for authentication. You can set up an IAM permissions policy that generates these credentials for connecting to Amazon Redshift. Extending the IAM authentication, you can configure the federation of AWS access though a SAML 2.0–compliant IdP. An IAM role can be configured to permit the federated users call the GetClusterCredentials action and generate temporary credentials to log in to Amazon Redshift databases. You can also set up policies to restrict access to Amazon Redshift clusters, databases, database user names, and user group.

Amazon Redshift federation workflow

In this post, I demonstrate how you can use a JDBC– or ODBC-based SQL client to log in to the Amazon Redshift cluster using this feature. The SQL clients used with Amazon Redshift JDBC or ODBC drivers automatically manage the process of calling the GetClusterCredentials action, retrieving the database user credentials, and establishing a connection to your Amazon Redshift database. You can also use your database application to programmatically call the GetClusterCredentials action, retrieve database user credentials, and connect to the database. I demonstrate these features using an example company to show how different database users accounts can be managed easily using federation.

The following diagram shows how the SSO process works:

  1. JDBC/ODBC
  2. Authenticate using Corp Username/Password
  3. IdP sends SAML assertion
  4. Call STS to assume role with SAML
  5. STS Returns Temp Credentials
  6. Use Temp Credentials to get Temp cluster credentials
  7. Connect to Amazon Redshift using temp credentials

Walkthrough

Example Corp. is using Active Directory (idp host:demo.examplecorp.com) to manage federated access for users in its organization. It has an AWS account: 123456789012 and currently manages an Amazon Redshift cluster with the cluster ID “examplecorp-dw”, database “analytics” in us-west-2 region for its Sales and Data Science teams. It wants the following access:

  • Sales users can access the examplecorp-dw cluster using the sales_grp database group
  • Sales users access examplecorp-dw through a JDBC-based SQL client
  • Sales users access examplecorp-dw through an ODBC connection, for their reporting tools
  • Data Science users access the examplecorp-dw cluster using the data_science_grp database group.
  • Partners access the examplecorp-dw cluster and query using the partner_grp database group.
  • Partners are not federated through Active Directory and are provided with separate IAM user credentials (with IAM user name examplecorpsalespartner).
  • Partners can connect to the examplecorp-dw cluster programmatically, using language such as Python.
  • All users are automatically created in Amazon Redshift when they log in for the first time.
  • (Optional) Internal users do not specify database user or group information in their connection string. It is automatically assigned.
  • Data warehouse users can use SSO for the Amazon Redshift data warehouse using the preceding permissions.

Step 1:  Set up IdPs and federation

The Enabling Federation to AWS Using Windows Active Directory post demonstrated how to prepare Active Directory and enable federation to AWS. Using those instructions, you can establish trust between your AWS account and the IdP and enable user access to AWS using SSO.  For more information, see Identity Providers and Federation.

For this walkthrough, assume that this company has already configured SSO to their AWS account: 123456789012 for their Active Directory domain demo.examplecorp.com. The Sales and Data Science teams are not required to specify database user and group information in the connection string. The connection string can be configured by adding SAML Attribute elements to your IdP. Configuring these optional attributes enables internal users to conveniently avoid providing the DbUser and DbGroup parameters when they log in to Amazon Redshift.

The user-name attribute can be set up as follows, with a user ID (for example, nancy) or an email address (for example. [email protected]):

<Attribute Name="https://redshift.amazon.com/SAML/Attributes/DbUser">
  <AttributeValue>user-name</AttributeValue>
</Attribute>

The AutoCreate attribute can be defined as follows:

<Attribute Name="https://redshift.amazon.com/SAML/Attributes/AutoCreate">
    <AttributeValue>true</AttributeValue>
</Attribute>

The sales_grp database group can be included as follows:

<Attribute Name="https://redshift.amazon.com/SAML/Attributes/DbGroups">
    <AttributeValue>sales_grp</AttributeValue>
</Attribute>

For more information about attribute element configuration, see Configure SAML Assertions for Your IdP.

Step 2: Create IAM roles for access to the Amazon Redshift cluster

The next step is to create IAM policies with permissions to call GetClusterCredentials and provide authorization for Amazon Redshift resources. To grant a SQL client the ability to retrieve the cluster endpoint, region, and port automatically, include the redshift:DescribeClusters action with the Amazon Redshift cluster resource in the IAM role.  For example, users can connect to the Amazon Redshift cluster using a JDBC URL without the need to hardcode the Amazon Redshift endpoint:

Previous:  jdbc:redshift://endpoint:port/database

Current:  jdbc:redshift:iam://clustername:region/dbname

Use IAM to create the following policies. You can also use an existing user or role and assign these policies. For example, if you already created an IAM role for IdP access, you can attach the necessary policies to that role. Here is the policy created for sales users for this example:

Sales_DW_IAM_Policy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "redshift:DescribeClusters"
            ],
            "Resource": [
                "arn:aws:redshift:us-west-2:123456789012:cluster:examplecorp-dw"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "redshift:GetClusterCredentials"
            ],
            "Resource": [
                "arn:aws:redshift:us-west-2:123456789012:cluster:examplecorp-dw",
                "arn:aws:redshift:us-west-2:123456789012:dbuser:examplecorp-dw/${redshift:DbUser}"
            ],
            "Condition": {
                "StringEquals": {
                    "aws:userid": "AIDIODR4TAW7CSEXAMPLE:${redshift:DbUser}@examplecorp.com"
                }
            }
        },
        {
            "Effect": "Allow",
            "Action": [
                "redshift:CreateClusterUser"
            ],
            "Resource": [
                "arn:aws:redshift:us-west-2:123456789012:dbuser:examplecorp-dw/${redshift:DbUser}"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "redshift:JoinGroup"
            ],
            "Resource": [
                "arn:aws:redshift:us-west-2:123456789012:dbgroup:examplecorp-dw/sales_grp"
            ]
        }
    ]
}

The policy uses the following parameter values:

  • Region: us-west-2
  • AWS Account: 123456789012
  • Cluster name: examplecorp-dw
  • Database group: sales_grp
  • IAM role: AIDIODR4TAW7CSEXAMPLE
Policy Statement Description
{
"Effect":"Allow",
"Action":[
"redshift:DescribeClusters"
],
"Resource":[
"arn:aws:redshift:us-west-2:123456789012:cluster:examplecorp-dw"
]
}

Allow users to retrieve the cluster endpoint, region, and port automatically for the Amazon Redshift cluster examplecorp-dw. This specification uses the resource format arn:aws:redshift:region:account-id:cluster:clustername. For example, the SQL client JDBC can be specified in the format jdbc:redshift:iam://clustername:region/dbname.

For more information, see Amazon Resource Names.

{
"Effect":"Allow",
"Action":[
"redshift:GetClusterCredentials"
],
"Resource":[
"arn:aws:redshift:us-west-2:123456789012:cluster:examplecorp-dw",
"arn:aws:redshift:us-west-2:123456789012:dbuser:examplecorp-dw/${redshift:DbUser}"
],
"Condition":{
"StringEquals":{
"aws:userid":"AIDIODR4TAW7CSEXAMPLE:${redshift:DbUser}@examplecorp.com"
}
}
}

Generates a temporary token to authenticate into the examplecorp-dw cluster. “arn:aws:redshift:us-west-2:123456789012:dbuser:examplecorp-dw/${redshift:DbUser}” restricts the corporate user name to the database user name for that user. This resource is specified using the format: arn:aws:redshift:region:account-id:dbuser:clustername/dbusername.

The Condition block enforces that the AWS user ID should match “AIDIODR4TAW7CSEXAMPLE:${redshift:DbUser}@examplecorp.com”, so that individual users can authenticate only as themselves. The AIDIODR4TAW7CSEXAMPLE role has the Sales_DW_IAM_Policy policy attached.

{
"Effect":"Allow",
"Action":[
"redshift:CreateClusterUser"
],
"Resource":[
"arn:aws:redshift:us-west-2:123456789012:dbuser:examplecorp-dw/${redshift:DbUser}"
]
}
Automatically creates database users in examplecorp-dw, when they log in for the first time. Subsequent logins reuse the existing database user.
{
"Effect":"Allow",
"Action":[
"redshift:JoinGroup"
],
"Resource":[
"arn:aws:redshift:us-west-2:123456789012:dbgroup:examplecorp-dw/sales_grp"
]
}
Allows sales users to join the sales_grp database group through the resource “arn:aws:redshift:us-west-2:123456789012:dbgroup:examplecorp-dw/sales_grp” that is specified in the format arn:aws:redshift:region:account-id:dbgroup:clustername/dbgroupname.

Similar policies can be created for Data Science users with access to join the data_science_grp group in examplecorp-dw. You can now attach the Sales_DW_IAM_Policy policy to the role that is mapped to IdP application for SSO.
 For more information about how to define the claim rules, see Configuring SAML Assertions for the Authentication Response.

Because partners are not authorized using Active Directory, they are provided with IAM credentials and added to the partner_grp database group. The Partner_DW_IAM_Policy is attached to the IAM users for partners. The following policy allows partners to log in using the IAM user name as the database user name.

Partner_DW_IAM_Policy

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "redshift:DescribeClusters"
            ],
            "Resource": [
                "arn:aws:redshift:us-west-2:123456789012:cluster:examplecorp-dw"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "redshift:GetClusterCredentials"
            ],
            "Resource": [
                "arn:aws:redshift:us-west-2:123456789012:cluster:examplecorp-dw",
                "arn:aws:redshift:us-west-2:123456789012:dbuser:examplecorp-dw/${redshift:DbUser}"
            ],
            "Condition": {
                "StringEquals": {
                    "redshift:DbUser": "${aws:username}"
                }
            }
        },
        {
            "Effect": "Allow",
            "Action": [
                "redshift:CreateClusterUser"
            ],
            "Resource": [
                "arn:aws:redshift:us-west-2:123456789012:dbuser:examplecorp-dw/${redshift:DbUser}"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "redshift:JoinGroup"
            ],
            "Resource": [
                "arn:aws:redshift:us-west-2:123456789012:dbgroup:examplecorp-dw/partner_grp"
            ]
        }
    ]
}

redshift:DbUser“: “${aws:username}” forces an IAM user to use the IAM user name as the database user name.

With the previous steps configured, you can now establish the connection to Amazon Redshift through JDBC– or ODBC-supported clients.

Step 3: Set up database user access

Before you start connecting to Amazon Redshift using the SQL client, set up the database groups for appropriate data access. Log in to your Amazon Redshift database as superuser to create a database group, using CREATE GROUP.

Log in to examplecorp-dw/analytics as superuser and create the following groups and users:

CREATE GROUP sales_grp;
CREATE GROUP datascience_grp;
CREATE GROUP partner_grp;

Use the GRANT command to define access permissions to database objects (tables/views) for the preceding groups.

Step 4: Connect to Amazon Redshift using the JDBC SQL client

Assume that sales user “nancy” is using the SQL Workbench client and JDBC driver to log in to the Amazon Redshift data warehouse. The following steps help set up the client and establish the connection:

  1. Download the latest Amazon Redshift JDBC driver from the Configure a JDBC Connection page
  2. Build the JDBC URL with the IAM option in the following format:
    jdbc:redshift:iam://examplecorp-dw:us-west-2/sales_db

Because the redshift:DescribeClusters action is assigned to the preceding IAM roles, it automatically resolves the cluster endpoints and the port. Otherwise, you can specify the endpoint and port information in the JDBC URL, as described in Configure a JDBC Connection.

Identify the following JDBC options for providing the IAM credentials (see the “Prepare your environment” section) and configure in the SQL Workbench Connection Profile:

plugin_name=com.amazon.redshift.plugin.AdfsCredentialsProvider
idp_host=demo.examplecorp.com (The name of the corporate identity provider host)
idp_port=443  (The port of the corporate identity provider host)
user=examplecorp\nancy(corporate user name)
password=***(corporate user password)

The SQL workbench configuration looks similar to the following screenshot:

Now, “nancy” can connect to examplecorp-dw by authenticating using the corporate Active Directory. Because the SAML attributes elements are already configured for nancy, she logs in as database user nancy and is assigned the sales_grp. Similarly, other Sales and Data Science users can connect to the examplecorp-dw cluster. A custom Amazon Redshift ODBC driver can also be used to connect using a SQL client. For more information, see Configure an ODBC Connection.

Step 5: Connecting to Amazon Redshift using JDBC SQL Client and IAM Credentials

This optional step is necessary only when you want to enable users that are not authenticated with Active Directory. Partners are provided with IAM credentials that they can use to connect to the examplecorp-dw Amazon Redshift clusters. These IAM users are attached to Partner_DW_IAM_Policy that assigns them to be assigned to the public database group in Amazon Redshift. The following JDBC URLs enable them to connect to the Amazon Redshift cluster:

jdbc:redshift:iam//examplecorp-dw/analytics?AccessKeyID=XXX&SecretAccessKey=YYY&DbUser=examplecorpsalespartner&DbGroup= partner_grp&AutoCreate=true

The AutoCreate option automatically creates a new database user the first time the partner logs in. There are several other options available to conveniently specify the IAM user credentials. For more information, see Options for providing IAM credentials.

Step 6: Connecting to Amazon Redshift using an ODBC client for Microsoft Windows

Assume that another sales user “uma” is using an ODBC-based client to log in to the Amazon Redshift data warehouse using Example Corp Active Directory. The following steps help set up the ODBC client and establish the Amazon Redshift connection in a Microsoft Windows operating system connected to your corporate network:

  1. Download and install the latest Amazon Redshift ODBC driver.
  2. Create a system DSN entry.
    1. In the Start menu, locate the driver folder or folders:
      • Amazon Redshift ODBC Driver (32-bit)
      • Amazon Redshift ODBC Driver (64-bit)
      • If you installed both drivers, you have a folder for each driver.
    2. Choose ODBC Administrator, and then type your administrator credentials.
    3. To configure the driver for all users on the computer, choose System DSN. To configure the driver for your user account only, choose User DSN.
    4. Choose Add.
  3. Select the Amazon Redshift ODBC driver, and choose Finish. Configure the following attributes:
    Data Source Name =any friendly name to identify the ODBC connection
    Database=analytics
    user=uma(corporate user name)
    Auth Type-Identity Provider: AD FS
    password=leave blank (Windows automatically authenticates)
    Cluster ID: examplecorp-dw
    idp_host=demo.examplecorp.com (The name of the corporate IdP host)

This configuration looks like the following:

  1. Choose OK to save the ODBC connection.
  2. Verify that uma is set up with the SAML attributes, as described in the “Set up IdPs and federation” section.

The user uma can now use this ODBC connection to establish the connection to the Amazon Redshift cluster using any ODBC-based tools or reporting tools such as Tableau. Internally, uma authenticates using the Sales_DW_IAM_Policy  IAM role and is assigned the sales_grp database group.

Step 7: Connecting to Amazon Redshift using Python and IAM credentials

To enable partners, connect to the examplecorp-dw cluster programmatically, using Python on a computer such as Amazon EC2 instance. Reuse the IAM users that are attached to the Partner_DW_IAM_Policy policy defined in Step 2.

The following steps show this set up on an EC2 instance:

  1. Launch a new EC2 instance with the Partner_DW_IAM_Policy role, as described in Using an IAM Role to Grant Permissions to Applications Running on Amazon EC2 Instances. Alternatively, you can attach an existing IAM role to an EC2 instance.
  2. This example uses Python PostgreSQL Driver (PyGreSQL) to connect to your Amazon Redshift clusters. To install PyGreSQL on Amazon Linux, use the following command as the ec2-user:
    sudo easy_install pip
    sudo yum install postgresql postgresql-devel gcc python-devel
    sudo pip install PyGreSQL

  1. The following code snippet demonstrates programmatic access to Amazon Redshift for partner users:
    #!/usr/bin/env python
    """
    Usage:
    python redshift-unload-copy.py <config file> <region>

    * Copyright 2014, Amazon.com, Inc. or its affiliates. All Rights Reserved.
    *
    * Licensed under the Amazon Software License (the "License").
    * You may not use this file except in compliance with the License.
    * A copy of the License is located at
    *
    * http://aws.amazon.com/asl/
    *
    * or in the "license" file accompanying this file. This file is distributed
    * on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either
    * express or implied. See the License for the specific language governing
    * permissions and limitations under the License.
    """

    import sys
    import pg
    import boto3

    REGION = 'us-west-2'
    CLUSTER_IDENTIFIER = 'examplecorp-dw'
    DB_NAME = 'sales_db'
    DB_USER = 'examplecorpsalespartner'

    options = """keepalives=1 keepalives_idle=200 keepalives_interval=200
                 keepalives_count=6"""

    set_timeout_stmt = "set statement_timeout = 1200000"

    def conn_to_rs(host, port, db, usr, pwd, opt=options, timeout=set_timeout_stmt):
        rs_conn_string = """host=%s port=%s dbname=%s user=%s password=%s
                             %s""" % (host, port, db, usr, pwd, opt)
        print "Connecting to %s:%s:%s as %s" % (host, port, db, usr)
        rs_conn = pg.connect(dbname=rs_conn_string)
        rs_conn.query(timeout)
        return rs_conn

    def main():
        # describe the cluster and fetch the IAM temporary credentials
        global redshift_client
        redshift_client = boto3.client('redshift', region_name=REGION)
        response_cluster_details = redshift_client.describe_clusters(ClusterIdentifier=CLUSTER_IDENTIFIER)
        response_credentials = redshift_client.get_cluster_credentials(DbUser=DB_USER,DbName=DB_NAME,ClusterIdentifier=CLUSTER_IDENTIFIER,DurationSeconds=3600)
        rs_host = response_cluster_details['Clusters'][0]['Endpoint']['Address']
        rs_port = response_cluster_details['Clusters'][0]['Endpoint']['Port']
        rs_db = DB_NAME
        rs_iam_user = response_credentials['DbUser']
        rs_iam_pwd = response_credentials['DbPassword']
        # connect to the Amazon Redshift cluster
        conn = conn_to_rs(rs_host, rs_port, rs_db, rs_iam_user,rs_iam_pwd)
        # execute a query
        result = conn.query("SELECT sysdate as dt")
        # fetch results from the query
        for dt_val in result.getresult() :
            print dt_val
        # close the Amazon Redshift connection
        conn.close()

    if __name__ == "__main__":
        main()

You can save this Python program in a file (redshiftscript.py) and execute it at the command line as ec2-user:

python redshiftscript.py

Now partners can connect to the Amazon Redshift cluster using the Python script, and authentication is federated through the IAM user.

Summary

In this post, I demonstrated how to use federated access using Active Directory and IAM roles to enable single sign-on to an Amazon Redshift cluster. I also showed how partners outside an organization can be managed easily using IAM credentials.  Using the GetClusterCredentials API action, now supported by Amazon Redshift, lets you manage a large number of database users and have them use corporate credentials to log in. You don’t have to maintain separate database user accounts.

Although this post demonstrated the integration of IAM with AD FS and Active Directory, you can replicate this solution across with your choice of SAML 2.0 third-party identity providers (IdP), such as PingFederate or Okta. For the different supported federation options, see Configure SAML Assertions for Your IdP.

If you have questions or suggestions, please comment below.


Additional Reading

Learn how to establish federated access to your AWS resources by using Active Directory user attributes.


About the Author

Thiyagarajan Arumugam is a Big Data Solutions Architect at Amazon Web Services and designs customer architectures to process data at scale. Prior to AWS, he built data warehouse solutions at Amazon.com. In his free time, he enjoys all outdoor sports and practices the Indian classical drum mridangam.



Amazon Lightsail Update – Launch and Manage Windows Virtual Private Servers

Post Syndicated from Jeff Barr original https://aws.amazon.com/blogs/aws/amazon-lightsail-update-launch-and-manage-windows-virtual-private-servers/

I first told you about Amazon Lightsail last year in my blog post, Amazon Lightsail – the Power of AWS, the Simplicity of a VPS. Since last year’s launch, thousands of customers have used Lightsail to get started with AWS, launching Linux-based Virtual Private Servers.

Today we are adding support for Windows-based Virtual Private Servers. You can launch a VPS that runs Windows Server 2012 R2, Windows Server 2016, or Windows Server 2016 with SQL Server 2016 Express and be up and running in minutes. You can use your VPS to build, test, and deploy .NET or Windows applications without having to set up or run any infrastructure. Backups, DNS management, and operational metrics are all accessible with a click or two.

Servers are available in five sizes, with 512 MB to 8 GB of RAM, 1 or 2 vCPUs, and up to 80 GB of SSD storage. Prices (including software licenses) start at $10 per month:

You can try out a 512 MB server for one month (up to 750 hours) at no charge.

Launching a Windows VPS
To launch a Windows VPS, log in to Lightsail , click on Create instance, and select the Microsoft Windows platform. Then click on Apps + OS if you want to run SQL Server 2016 Express, or OS Only if Windows is all you need:

If you want to use a Powershell script to customize your instance after it launches for the first time, click on Add launch script and enter the script:

Choose your instance plan, enter a name for your instance(s), and select the quantity to be launched, then click on Create:

Your instance will be up and running within a minute or so:

Click on the instance, and then click on Connect using RDP:

This will connect using a built-in, browser-based RDP client (you can also use the IP address and the credentials with another client):

Available Today
This feature is available today in the US East (Northern Virginia), US East (Ohio), US West (Oregon), EU (London), EU (Ireland), EU (Frankfurt), Asia Pacific (Singapore), Asia Pacific (Mumbai), Asia Pacific (Sydney), and Asia Pacific (Tokyo) Regions.

Jeff;



How to Enable LDAPS for Your AWS Microsoft AD Directory

Post Syndicated from Vijay Sharma original https://aws.amazon.com/blogs/security/how-to-enable-ldaps-for-your-aws-microsoft-ad-directory/

Starting today, you can encrypt the Lightweight Directory Access Protocol (LDAP) communications between your applications and AWS Directory Service for Microsoft Active Directory, also known as AWS Microsoft AD. Many Windows and Linux applications use Active Directory’s (AD) LDAP service to read and write sensitive information about users and devices, including personally identifiable information (PII). Now, you can encrypt your AWS Microsoft AD LDAP communications end to end to protect this information by using LDAP Over Secure Sockets Layer (SSL)/Transport Layer Security (TLS), also called LDAPS. This helps you protect PII and other sensitive information exchanged with AWS Microsoft AD over untrusted networks.

To enable LDAPS, you need to add a Microsoft enterprise Certificate Authority (CA) server to your AWS Microsoft AD domain and configure certificate templates for your domain controllers. After you have enabled LDAPS, AWS Microsoft AD encrypts communications with LDAPS-enabled Windows applications, Linux computers that use Secure Shell (SSH) authentication, and applications such as Jira and Jenkins.

In this blog post, I show how to enable LDAPS for your AWS Microsoft AD directory in six steps: 1) Delegate permissions to CA administrators, 2) Add a Microsoft enterprise CA to your AWS Microsoft AD directory, 3) Create a certificate template, 4) Configure AWS security group rules, 5) AWS Microsoft AD enables LDAPS, and 6) Test LDAPS access using the LDP tool.

Assumptions

For this post, I assume you are familiar with following:

Solution overview

Before going into specific deployment steps, I will provide a high-level overview of deploying LDAPS. I cover how you enable LDAPS on AWS Microsoft AD. In addition, I provide some general background about CA deployment models and explain how to apply these models when deploying Microsoft CA to enable LDAPS on AWS Microsoft AD.

How you enable LDAPS on AWS Microsoft AD

LDAP-aware applications (LDAP clients) typically access LDAP servers using Transmission Control Protocol (TCP) on port 389. By default, LDAP communications on port 389 are unencrypted. However, many LDAP clients use one of two standards to encrypt LDAP communications: LDAP over SSL on port 636, and LDAP with StartTLS on port 389. If an LDAP client uses port 636, the LDAP server encrypts all traffic unconditionally with SSL. If an LDAP client issues a StartTLS command when setting up the LDAP session on port 389, the LDAP server encrypts all traffic to that client with TLS. AWS Microsoft AD now supports both encryption standards when you enable LDAPS on your AWS Microsoft AD domain controllers.

You enable LDAPS on your AWS Microsoft AD domain controllers by installing a digital certificate that a CA issued. Though Windows servers have different methods for installing certificates, LDAPS with AWS Microsoft AD requires you to add a Microsoft CA to your AWS Microsoft AD domain and deploy the certificate through autoenrollment from the Microsoft CA. The installed certificate enables the LDAP service running on domain controllers to listen for and negotiate LDAP encryption on port 636 (LDAP over SSL) and port 389 (LDAP with StartTLS).

Background of CA deployment models

You can deploy CAs as part of a single-level or multi-level CA hierarchy. In a single-level hierarchy, all certificates come from the root of the hierarchy. In a multi-level hierarchy, you organize a collection of CAs in a hierarchy and the certificates sent to computers and users come from subordinate CAs in the hierarchy (not the root).

Certificates issued by a CA identify the hierarchy to which the CA belongs. When a computer sends its certificate to another computer for verification, the receiving computer must have the public certificate from the CAs in the same hierarchy as the sender. If the CA that issued the certificate is part of a single-level hierarchy, the receiver must obtain the public certificate of the CA that issued the certificate. If the CA that issued the certificate is part of a multi-level hierarchy, the receiver can obtain a public certificate for all the CAs that are in the same hierarchy as the CA that issued the certificate. If the receiver can verify that the certificate came from a CA that is in the hierarchy of the receiver’s “trusted” public CA certificates, the receiver trusts the sender. Otherwise, the receiver rejects the sender.

Deploying Microsoft CA to enable LDAPS on AWS Microsoft AD

Microsoft offers a standalone CA and an enterprise CA. Though you can configure either as single-level or multi-level hierarchies, only the enterprise CA integrates with AD and offers autoenrollment for certificate deployment. Because you cannot sign in to run commands on your AWS Microsoft AD domain controllers, an automatic certificate enrollment model is required. Therefore, AWS Microsoft AD requires the certificate to come from a Microsoft enterprise CA that you configure to work in your AD domain. When you install the Microsoft enterprise CA, you can configure it to be part of a single-level hierarchy or a multi-level hierarchy. As a best practice, AWS recommends a multi-level Microsoft CA trust hierarchy consisting of a root CA and a subordinate CA. I cover only a multi-level hierarchy in this post.

In a multi-level hierarchy, you configure your subordinate CA by importing a certificate from the root CA. You must issue a certificate from the root CA such that the certificate gives your subordinate CA the right to issue certificates on behalf of the root. This makes your subordinate CA part of the root CA hierarchy. You also deploy the root CA’s public certificate on all of your computers, which tells all your computers to trust certificates that your root CA issues and to trust certificates from any authorized subordinate CA.

In such a hierarchy, you typically leave your root CA offline (inaccessible to other computers in the network) to protect the root of your hierarchy. You leave the subordinate CA online so that it can issue certificates on behalf of the root CA. This multi-level hierarchy increases security because if someone compromises your subordinate CA, you can revoke all certificates it issued and set up a new subordinate CA from your offline root CA. To learn more about setting up a secure CA hierarchy, see Securing PKI: Planning a CA Hierarchy.

When a Microsoft CA is part of your AD domain, you can configure certificate templates that you publish. These templates become visible to client computers through AD. If a client’s profile matches a template, the client requests a certificate from the Microsoft CA that matches the template. Microsoft calls this process autoenrollment, and it simplifies certificate deployment. To enable LDAPS on your AWS Microsoft AD domain controllers, you create a certificate template in the Microsoft CA that generates SSL and TLS-compatible certificates. The domain controllers see the template and automatically import a certificate of that type from the Microsoft CA. The imported certificate enables LDAP encryption.

Steps to enable LDAPS for your AWS Microsoft AD directory

The rest of this post is composed of the steps for enabling LDAPS for your AWS Microsoft AD directory. First, though, I explain which components you must have running to deploy this solution successfully. I also explain how this solution works and include an architecture diagram.

Prerequisites

The instructions in this post assume that you already have the following components running:

  1. An active AWS Microsoft AD directory – To create a directory, follow the steps in Create an AWS Microsoft AD directory.
  2. An Amazon EC2 for Windows Server instance for managing users and groups in your directory – This instance needs to be joined to your AWS Microsoft AD domain and have Active Directory Administration Tools installed. Active Directory Administration Tools installs Active Directory Administrative Center and the LDP tool.
  3. An existing root Microsoft CA or a multi-level Microsoft CA hierarchy – You might already have a root CA or a multi-level CA hierarchy in your on-premises network. If you plan to use your on-premises CA hierarchy, you must have administrative permissions to issue certificates to subordinate CAs. If you do not have an existing Microsoft CA hierarchy, you can set up a new standalone Microsoft root CA by creating an Amazon EC2 for Windows Server instance and installing a standalone root certification authority. You also must create a local user account on this instance and add this user to the local administrator group so that the user has permissions to issue a certificate to a subordinate CA.

The solution setup

The following diagram illustrates the setup with the steps you need to follow to enable LDAPS for AWS Microsoft AD. You will learn how to set up a subordinate Microsoft enterprise CA (in this case, SubordinateCA) and join it to your AWS Microsoft AD domain (in this case, corp.example.com). You also will learn how to create a certificate template on SubordinateCA and configure AWS security group rules to enable LDAPS for your directory.

As a prerequisite, I already created a standalone Microsoft root CA (in this case RootCA) for creating SubordinateCA. RootCA also has a local user account called RootAdmin that has administrative permissions to issue certificates to SubordinateCA. Note that you may already have a root CA or a multi-level CA hierarchy in your on-premises network that you can use for creating SubordinateCA instead of creating a new root CA. If you choose to use your existing on-premises CA hierarchy, you must have administrative permissions on your on-premises CA to issue a certificate to SubordinateCA.

Lastly, I also already created an Amazon EC2 instance (in this case, Management) that I use to manage users, configure AWS security groups, and test the LDAPS connection. I join this instance to the AWS Microsoft AD directory domain.

Diagram showing the process discussed in this post

Here is how the process works:

  1. Delegate permissions to CA administrators (in this case, CAAdmin) so that they can join a Microsoft enterprise CA to your AWS Microsoft AD domain and configure it as a subordinate CA.
  2. Add a Microsoft enterprise CA to your AWS Microsoft AD domain (in this case, SubordinateCA) so that it can issue certificates to your directory domain controllers to enable LDAPS. This step includes joining SubordinateCA to your directory domain, installing the Microsoft enterprise CA, and obtaining a certificate from RootCA that grants SubordinateCA permissions to issue certificates.

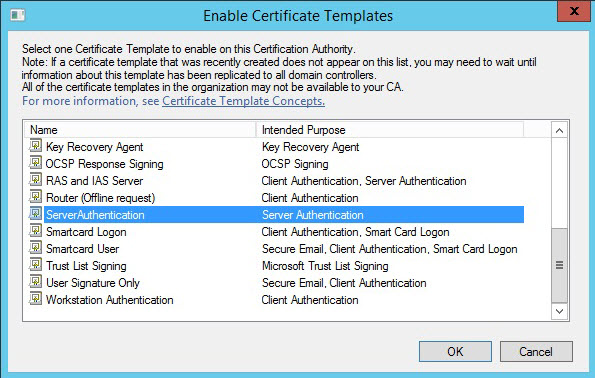

  3. Create a certificate template (in this case, ServerAuthentication) with server authentication and autoenrollment enabled so that your AWS Microsoft AD directory domain controllers can obtain certificates through autoenrollment to enable LDAPS.

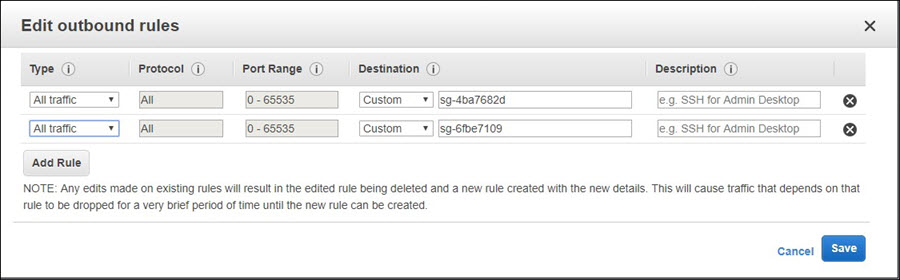

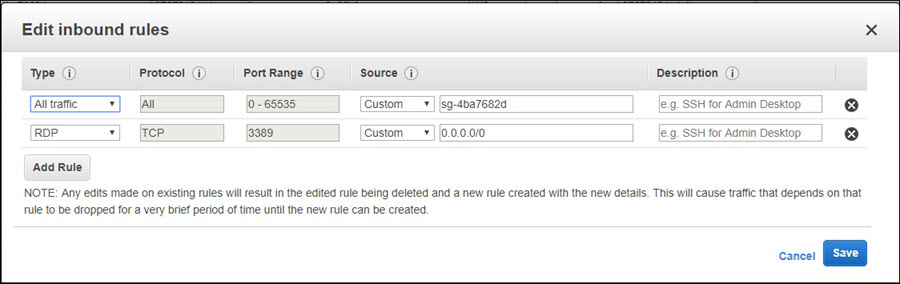

  4. Configure AWS security group rules so that AWS Microsoft AD directory domain controllers can connect to the subordinate CA to request certificates.
  5. AWS Microsoft AD enables LDAPS through the following process:
    1. AWS Microsoft AD domain controllers request a certificate from SubordinateCA.
    2. SubordinateCA issues a certificate to AWS Microsoft AD domain controllers.
    3. AWS Microsoft AD enables LDAPS for the directory by installing certificates on the directory domain controllers.

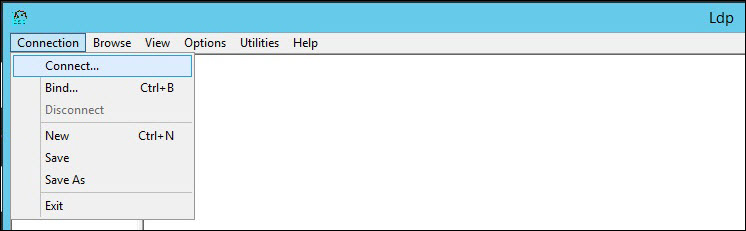

  6. Test LDAPS access by using the LDP tool.

I now will show you these steps in detail. I use the names of components—such as RootCA, SubordinateCA, and Management—and refer to users—such as Admin, RootAdmin, and CAAdmin—to illustrate who performs these steps. All component names and user names in this post are used for illustrative purposes only.

Deploy the solution

Step 1: Delegate permissions to CA administrators


In this step, you delegate permissions to your users who manage your CAs. Your users then can join a subordinate CA to your AWS Microsoft AD domain and create the certificate template in your CA.

To enable use with a Microsoft enterprise CA, AWS added a new built-in AD security group called AWS Delegated Enterprise Certificate Authority Administrators that has delegated permissions to install and administer a Microsoft enterprise CA. By default, your directory Admin is part of the new group and can add other users or groups in your AWS Microsoft AD directory to this security group. If you have trust with your on-premises AD directory, you can also delegate CA administrative permissions to your on-premises users by adding on-premises AD users or global groups to this new AD security group.

To create a new user (in this case CAAdmin) in your directory and add this user to the AWS Delegated Enterprise Certificate Authority Administrators security group, follow these steps:

  1. Sign in to the Management instance using RDP with the user name admin and the password that you set for the admin user when you created your directory.
  2. Launch the Microsoft Windows Server Manager on the Management instance and navigate to Tools > Active Directory Users and Computers.

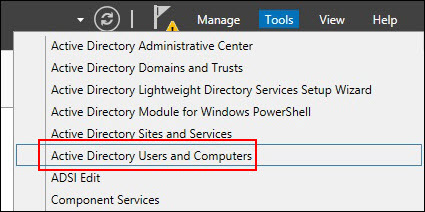

    Screnshot of the menu including the "Active Directory Users and Computers" choice
  3. Switch to the tree view and navigate to corp.example.com > CORP > Users. Right-click Users and choose New > User.
    Screenshot of choosing New > User

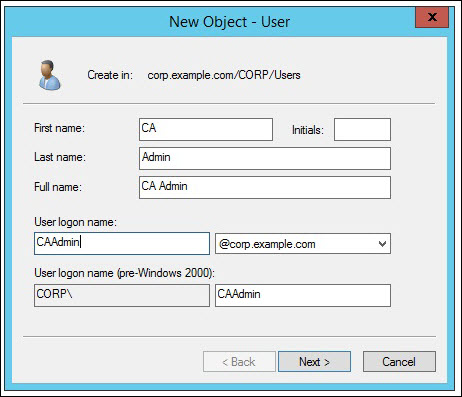

  4. Add a new user with the First name CA, Last name Admin, and User logon name CAAdmin.
    Screenshot of completing the "New Object - User" boxes
  5. In the Active Directory Users and Computers tool, navigate to corp.example.com > AWS Delegated Groups. In the right pane, right-click AWS Delegated Enterprise Certificate Authority Administrators and choose Properties.

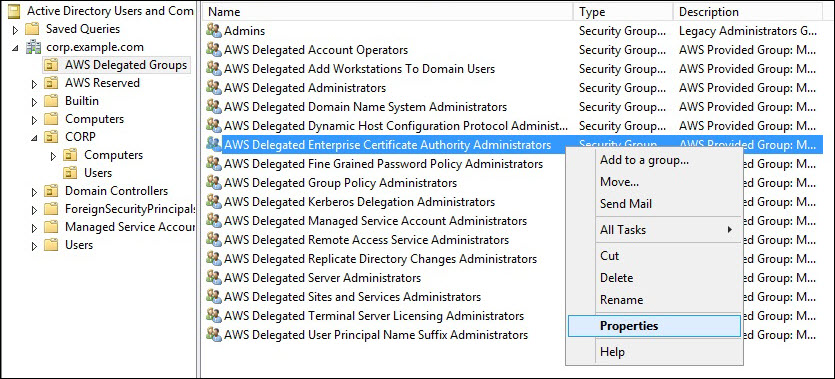

    Screenshot of navigating to AWS Delegated Enterprise Certificate Authority Administrators > Properties
  6. In the AWS Delegated Enterprise Certificate Authority Administrators window, switch to the Members tab and choose Add.

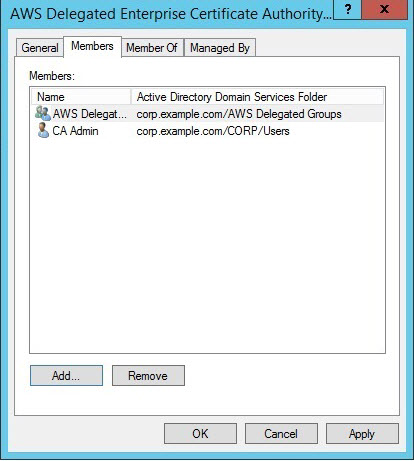

    Screenshot of the "Members" tab of the "AWS Delegate Enterprise Certificate Authority Administrators" window

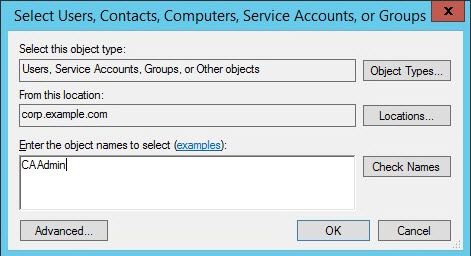

  7. In the Enter the object names to select box, type CAAdmin and choose OK.
    Screenshot showing the "Enter the object names to select" box
  8. In the next window, choose OK to add CAAdmin to the AWS Delegated Enterprise Certificate Authority Administrators security group.
    Screenshot of adding "CA Admin" to the "AWS Delegated Enterprise Certificate Authority Administrators" security group

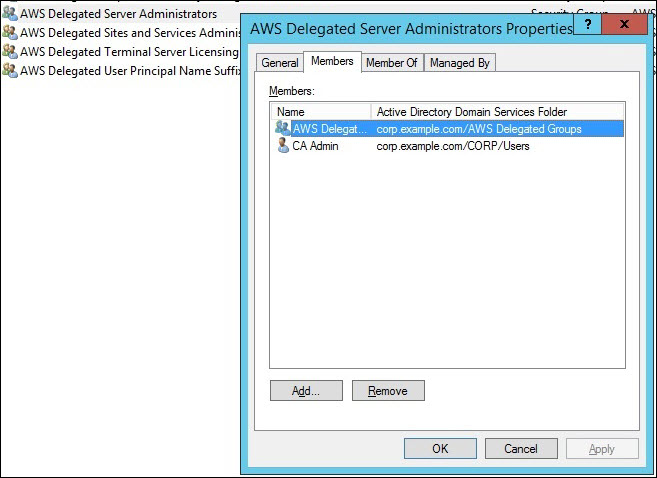

  9. Also add CAAdmin to the AWS Delegated Server Administrators security group so that CAAdmin can RDP in to the Microsoft enterprise CA machine.
    Screenshot of adding "CAAdmin" to the "AWS Delegated Server Administrators" security group also so that "CAAdmin" can RDP in to the Microsoft enterprise CA machine

 You have granted CAAdmin permissions to join a Microsoft enterprise CA to your AWS Microsoft AD directory domain.

Step 2: Add a Microsoft enterprise CA to your AWS Microsoft AD directory


In this step, you set up a subordinate Microsoft enterprise CA and join it to your AWS Microsoft AD directory domain. I will summarize the process first and then walk through the steps.

First, you create an Amazon EC2 for Windows Server instance called SubordinateCA and join it to the domain, corp.example.com. You then publish RootCA’s public certificate and certificate revocation list (CRL) to SubordinateCA’s local trusted store. You also publish RootCA’s public certificate to your directory domain. Doing so enables SubordinateCA and your directory domain controllers to trust RootCA. You then install the Microsoft enterprise CA service on SubordinateCA and request a certificate from RootCA to make SubordinateCA a subordinate Microsoft CA. After RootCA issues the certificate, SubordinateCA is ready to issue certificates to your directory domain controllers.

Note that you can use an Amazon S3 bucket to pass the certificates between RootCA and SubordinateCA.

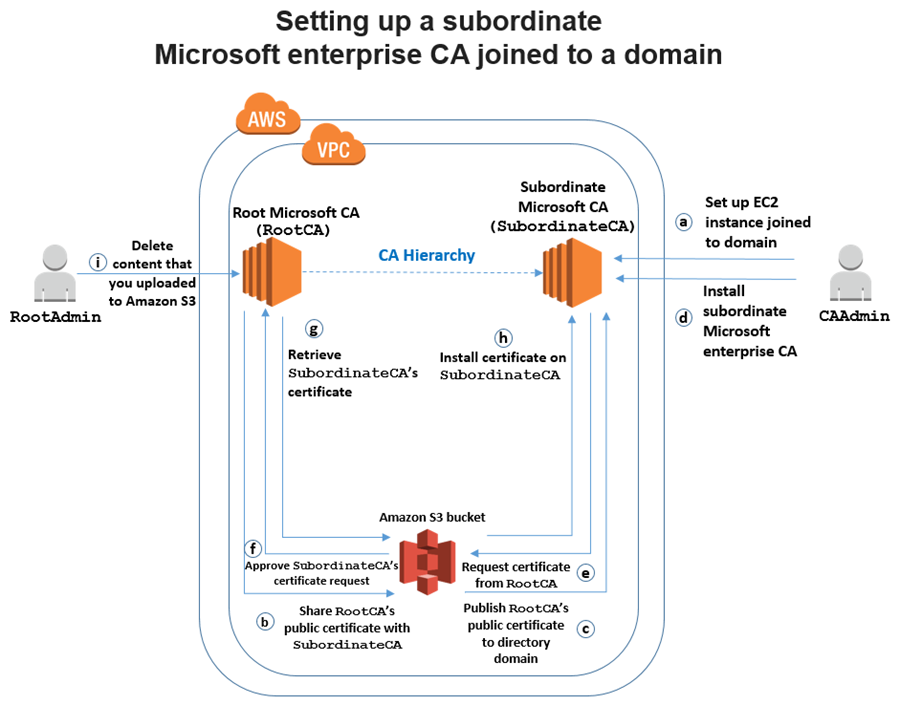

In detail, here is how the process works, as illustrated in the preceding diagram:

  1. Set up an Amazon EC2 instance joined to your AWS Microsoft AD directory domain – Create an Amazon EC2 for Windows Server instance to use as a subordinate CA, and join it to your AWS Microsoft AD directory domain. For this example, the machine name is SubordinateCA and the domain is corp.example.com.
  2. Share RootCA’s public certificate with SubordinateCA – Log in to RootCA as RootAdmin and start Windows PowerShell with administrative privileges. Run the following commands to copy RootCA’s public certificate and CRL to the folder c:\rootcerts on RootCA.
    New-Item c:\rootcerts -type directory
    copy C:\Windows\system32\certsrv\certenroll\*.cr* c:\rootcerts

    Upload RootCA’s public certificate and CRL from c:\rootcerts to an S3 bucket by following the steps in How Do I Upload Files and Folders to an S3 Bucket.

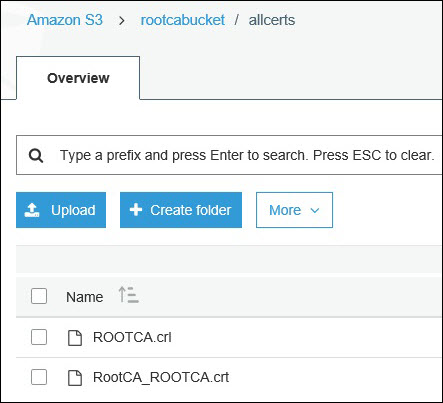

The following screenshot shows RootCA’s public certificate and CRL uploaded to an S3 bucket.
Screenshot of RootCA’s public certificate and CRL uploaded to the S3 bucket

  1. Publish RootCA’s public certificate to your directory domain – Log in to SubordinateCA as the CAAdmin. Download RootCA’s public certificate and CRL from the S3 bucket by following the instructions in How Do I Download an Object from an S3 Bucket? Save the certificate and CRL to the C:\rootcerts folder on SubordinateCA. Add RootCA’s public certificate and the CRL to the local store of SubordinateCA and publish RootCA’s public certificate to your directory domain by running the following commands using Windows PowerShell with administrative privileges.
    certutil –addstore –f root <path to the RootCA public certificate file>
    certutil –addstore –f root <path to the RootCA CRL file>
    certutil –dspublish –f <path to the RootCA public certificate file> RootCA
  2. Install the subordinate Microsoft enterprise CA – Install the subordinate Microsoft enterprise CA on SubordinateCA by following the instructions in Install a Subordinate Certification Authority. Ensure that you choose Enterprise CA for Setup Type to install an enterprise CA.

For the CA Type, choose Subordinate CA.

  1. Request a certificate from RootCA – Next, copy the certificate request on SubordinateCA to a folder called c:\CARequest by running the following commands using Windows PowerShell with administrative privileges.
    New-Item c:\CARequest -type directory
    Copy c:\*.req C:\CARequest

    Upload the certificate request to the S3 bucket.
    Screenshot of uploading the certificate request to the S3 bucket

  1. Approve SubordinateCA’s certificate request – Log in to RootCA as RootAdmin and download the certificate request from the S3 bucket to a folder called CARequest. Submit the request by running the following command using Windows PowerShell with administrative privileges.
    certreq -submit <path to certificate request file>

    In the Certification Authority List window, choose OK.
    Screenshot of the Certification Authority List window

Navigate to Server Manager > Tools > Certification Authority on RootCA.
Screenshot of "Certification Authority" in the drop-down menu

In the Certification Authority window, expand the ROOTCA tree in the left pane and choose Pending Requests. In the right pane, note the value in the Request ID column. Right-click the request and choose All Tasks > Issue.
Screenshot of noting the value in the "Request ID" column

  1. Retrieve the SubordinateCA certificate – Retrieve the SubordinateCA certificate by running following command using Windows PowerShell with administrative privileges. The command includes the <RequestId> that you noted in the previous step.
    certreq –retrieve <RequestId> <drive>:\subordinateCA.crt

    Upload SubordinateCA.crt to the S3 bucket.

  1. Install the SubordinateCA certificate – Log in to SubordinateCA as the CAAdmin and download SubordinateCA.crt from the S3 bucket. Install the certificate by running following commands using Windows PowerShell with administrative privileges.
    certutil –installcert c:\subordinateCA.crt
    start-service certsvc
  2. Delete the content that you uploaded to S3  As a security best practice, delete all the certificates and CRLs that you uploaded to the S3 bucket in the previous steps because you already have installed them on SubordinateCA.

You have finished setting up the subordinate Microsoft enterprise CA that is joined to your AWS Microsoft AD directory domain. Now you can use your subordinate Microsoft enterprise CA to create a certificate template so that your directory domain controllers can request a certificate to enable LDAPS for your directory.

Step 3: Create a certificate template


In this step, you create a certificate template with server authentication and autoenrollment enabled on SubordinateCA. You create this new template (in this case, ServerAuthentication) by duplicating an existing certificate template (in this case, Domain Controller template) and adding server authentication and autoenrollment to the template.

Follow these steps to create a certificate template:

  1. Log in to SubordinateCA as CAAdmin.
  2. Launch Microsoft Windows Server Manager. Select Tools > Certification Authority.
  3. In the Certificate Authority window, expand the SubordinateCA tree in the left pane. Right-click Certificate Templates, and choose Manage.
    Screenshot of choosing "Manage" under "Certificate Template"
  4. In the Certificate Templates Console window, right-click Domain Controller and choose Duplicate Template.
    Screenshot of the Certificate Templates Console window
  5. In the Properties of New Template window, switch to the General tab and change the Template display name to ServerAuthentication.
    Screenshot of the "Properties of New Template" window
  6. Switch to the Security tab, and choose Domain Controllers in the Group or user names section. Select the Allow check box for Autoenroll in the Permissions for Domain Controllers section.
    Screenshot of the "Permissions for Domain Controllers" section of the "Properties of New Template" window
  7. Switch to the Extensions tab, choose Application Policies in the Extensions included in this template section, and choose Edit
    Screenshot of the "Extensions" tab of the "Properties of New Template" window
  8. In the Edit Application Policies Extension window, choose Client Authentication and choose Remove. Choose OK to create the ServerAuthentication certificate template. Close the Certificate Templates Console window.
    Screenshot of the "Edit Application Policies Extension" window
  9. In the Certificate Authority window, right-click Certificate Templates, and choose New > Certificate Template to Issue.
    Screenshot of choosing "New" > "Certificate Template to Issue"
  10. In the Enable Certificate Templates window, choose ServerAuthentication and choose OK.
    Screenshot of the "Enable Certificate Templates" window

You have finished creating a certificate template with server authentication and autoenrollment enabled on SubordinateCA. Your AWS Microsoft AD directory domain controllers can now obtain a certificate through autoenrollment to enable LDAPS.

Step 4: Configure AWS security group rules


In this step, you configure AWS security group rules so that your directory domain controllers can connect to the subordinate CA to request a certificate. To do this, you must add outbound rules to your directory’s AWS security group (in this case, sg-4ba7682d) to allow all outbound traffic to SubordinateCA’s AWS security group (in this case, sg-6fbe7109) so that your directory domain controllers can connect to SubordinateCA for requesting a certificate. You also must add inbound rules to SubordinateCA’s AWS security group to allow all incoming traffic from your directory’s AWS security group so that the subordinate CA can accept incoming traffic from your directory domain controllers.

Follow these steps to configure AWS security group rules:

  1. Log in to the Management instance as Admin.
  2. Navigate to the EC2 console.
  3. In the left pane, choose Network & Security > Security Groups.
  4. In the right pane, choose the AWS security group (in this case, sg-6fbe7109) of SubordinateCA.
  5. Switch to the Inbound tab and choose Edit.
  6. Choose Add Rule. Choose All traffic for Type and Custom for Source. Enter your directory’s AWS security group (in this case, sg-4ba7682d) in the Source box. Choose Save.
    Screenshot of adding an inbound rule
  7. Now choose the AWS security group (in this case, sg-4ba7682d) of your AWS Microsoft AD directory, switch to the Outbound tab, and choose Edit.
  8. Choose Add Rule. Choose All traffic for Type and Custom for Destination. Enter your directory’s AWS security group (in this case, sg-6fbe7109) in the Destination box. Choose Save.

You have completed the configuration of AWS security group rules to allow traffic between your directory domain controllers and SubordinateCA.

Step 5: AWS Microsoft AD enables LDAPS


The AWS Microsoft AD domain controllers perform this step automatically by recognizing the published template and requesting a certificate from the subordinate Microsoft enterprise CA. The subordinate CA can take up to 180 minutes to issue certificates to the directory domain controllers. The directory imports these certificates into the directory domain controllers and enables LDAPS for your directory automatically. This completes the setup of LDAPS for the AWS Microsoft AD directory. The LDAP service on the directory is now ready to accept LDAPS connections!

Step 6: Test LDAPS access by using the LDP tool


In this step, you test the LDAPS connection to the AWS Microsoft AD directory by using the LDP tool. The LDP tool is available on the Management machine where you installed Active Directory Administration Tools. Before you test the LDAPS connection, you must wait up to 180 minutes for the subordinate CA to issue a certificate to your directory domain controllers.

To test LDAPS, you connect to one of the domain controllers using port 636. Here are the steps to test the LDAPS connection:

  1. Log in to Management as Admin.
  2. Launch the Microsoft Windows Server Manager on Management and navigate to Tools > Active Directory Users and Computers.
  3. Switch to the tree view and navigate to corp.example.com > CORP > Domain Controllers. In the right pane, right-click on one of the domain controllers and choose Properties. Copy the DNS name of the domain controller.
    Screenshot of copying the DNS name of the domain controller
  4. Launch the LDP.exe tool by launching Windows PowerShell and running the LDP.exe command.
  5. In the LDP tool, choose Connection > Connect.
    Screenshot of choosing "Connnection" > "Connect" in the LDP tool
  6. In the Server box, paste the DNS name you copied in the previous step. Type 636 in the Port box. Choose OK to test the LDAPS connection to port 636 of your directory.
    Screenshot of completing the boxes in the "Connect" window
  7. You should see the following message to confirm that your LDAPS connection is now open.

You have completed the setup of LDAPS for your AWS Microsoft AD directory! You can now encrypt LDAP communications between your Windows and Linux applications and your AWS Microsoft AD directory using LDAPS.

Summary

In this blog post, I walked through the process of enabling LDAPS for your AWS Microsoft AD directory. Enabling LDAPS helps you protect PII and other sensitive information exchanged over untrusted networks between your Windows and Linux applications and your AWS Microsoft AD. To learn more about how to use AWS Microsoft AD, see the Directory Service documentation. For general information and pricing, see the Directory Service home page.

If you have comments about this blog post, submit a comment in the “Comments” section below. If you have implementation or troubleshooting questions, start a new thread on the Directory Service forum.

– Vijay

New – Per-Second Billing for EC2 Instances and EBS Volumes

Post Syndicated from Jeff Barr original https://aws.amazon.com/blogs/aws/new-per-second-billing-for-ec2-instances-and-ebs-volumes/

Back in the old days, you needed to buy or lease a server if you needed access to compute power. When we launched EC2 back in 2006, the ability to use an instance for an hour, and to pay only for that hour, was big news. The pay-as-you-go model inspired our customers to think about new ways to develop, test, and run applications of all types.

Today, services like AWS Lambda prove that we can do a lot of useful work in a short time. Many of our customers are dreaming up applications for EC2 that can make good use of a large number of instances for shorter amounts of time, sometimes just a few minutes.

Per-Second Billing for EC2 and EBS
Effective October 2nd, usage of Linux instances that are launched in On-Demand, Reserved, and Spot form will be billed in one-second increments. Similarly, provisioned storage for EBS volumes will be billed in one-second increments.

Per-second billing also applies to Amazon EMR and AWS Batch:

Amazon EMR – Our customers add capacity to their EMR clusters in order to get their results more quickly. With per-second billing for the EC2 instances in the clusters, adding nodes is more cost-effective than ever.

AWS Batch – Many of the batch jobs that our customers run complete in less than an hour. AWS Batch already launches and terminates Spot Instances; with per-second billing batch processing will become even more economical.

Some of our more sophisticated customers have built systems to get the most value from EC2 by strategically choosing the most advantageous target instances when managing their gaming, ad tech, or 3D rendering fleets. Per-second billing obviates the need for this extra layer of instance management, and brings the costs savings to all customers and all workloads.

While this will result in a price reduction for many workloads (and you know we love price reductions), I don’t think that’s the most important aspect of this change. I believe that this change will inspire you to innovate and to think about your compute-bound problems in new ways. How can you use it to improve your support for continuous integration? Can it change the way that you provision transient environments for your dev and test workloads? What about your analytics, batch processing, and 3D rendering?

One of the many advantages of cloud computing is the elastic nature of provisioning or deprovisioning resources as you need them. By billing usage down to the second we will enable customers to level up their elasticity, save money, and customers will be positioned to take advantage of continuing advances in computing.

Things to Know
This change is effective in all AWS Regions and will be effective October 2, for all Linux instances that are newly launched or already running. Per-second billing is not currently applicable to instances running Microsoft Windows or Linux distributions that have a separate hourly charge. There is a 1 minute minimum charge per-instance.

List prices and Spot Market prices are still listed on a per-hour basis, but bills are calculated down to the second, as is Reserved Instance usage (you can launch, use, and terminate multiple instances within an hour and get the Reserved Instance Benefit for all of the instances). Also, bills will show times in decimal form, like this:

The Dedicated Per Region Fee, EBS Snapshots, and products in AWS Marketplace are still billed on an hourly basis.

Jeff;



Delivering Graphics Apps with Amazon AppStream 2.0

Post Syndicated from Deepak Suryanarayanan original https://aws.amazon.com/blogs/compute/delivering-graphics-apps-with-amazon-appstream-2-0/

Sahil Bahri, Sr. Product Manager, Amazon AppStream 2.0

Do you need to provide a workstation class experience for users who run graphics apps? With Amazon AppStream 2.0, you can stream graphics apps from AWS to a web browser running on any supported device. AppStream 2.0 offers a choice of GPU instance types. The range includes the newly launched Graphics Design instance, which allows you to offer a fast, fluid user experience at a fraction of the cost of using a graphics workstation, without upfront investments or long-term commitments.

In this post, I discuss the Graphics Design instance type in detail, and how you can use it to deliver a graphics application such as Siemens NX―a popular CAD/CAM application that we have been testing on AppStream 2.0 with engineers from Siemens PLM.

Graphics Instance Types on AppStream 2.0

First, a quick recap on the GPU instance types available with AppStream 2.0. In July, 2017, we launched graphics support for AppStream 2.0 with two new instance types that Jeff Barr discussed on the AWS Blog:

  • Graphics Desktop
  • Graphics Pro

Many customers in industries such as engineering, media, entertainment, and oil and gas are using these instances to deliver high-performance graphics applications to their users. These instance types are based on dedicated NVIDIA GPUs and can run the most demanding graphics applications, including those that rely on CUDA graphics API libraries.

Last week, we added a new lower-cost instance type: Graphics Design. This instance type is a great fit for engineers, 3D modelers, and designers who use graphics applications that rely on the hardware acceleration of DirectX, OpenGL, or OpenCL APIs, such as Siemens NX, Autodesk AutoCAD, or Adobe Photoshop. The Graphics Design instance is based on AMD’s FirePro S7150x2 Server GPUs and equipped with AMD Multiuser GPU technology. The instance type uses virtualized GPUs to achieve lower costs, and is available in four instance sizes to scale and match the requirements of your applications.

Instance vCPUs Instance RAM (GiB) GPU Memory (GiB)
stream.graphics-design.large 2 7.5 GiB 1
stream.graphics-design.xlarge 4 15.3 GiB 2
stream.graphics-design.2xlarge 8 30.5 GiB 4
stream.graphics-design.4xlarge 16 61 GiB 8

The following table compares all three graphics instance types on AppStream 2.0, along with example applications you could use with each.

  Graphics Design Graphics Desktop Graphics Pro
Number of instance sizes 4 1 3
GPU memory range
1–8 GiB 4 GiB 8–32 GiB
vCPU range 2–16 8 16–32
Memory range 7.5–61 GiB 15 GiB 122–488 GiB
Graphics libraries supported AMD FirePro S7150x2 NVIDIA GRID K520 NVIDIA Tesla M60
Price range (N. Virginia AWS Region) $0.25 – $2.00/hour $0.5/hour $2.05 – $8.20/hour
Example applications Adobe Premiere Pro, AutoDesk Revit, Siemens NX AVEVA E3D, SOLIDWORKS AutoDesk Maya, Landmark DecisionSpace, Schlumberger Petrel

Example graphics instance set up with Siemens NX

In the section, I walk through setting up Siemens NX with Graphics Design instances on AppStream 2.0. After set up is complete, users can able to access NX from within their browser and also access their design files from a file share. You can also use these steps to set up and test your own graphics applications on AppStream 2.0. Here’s the workflow:

  1. Create a file share to load and save design files.
  2. Create an AppStream 2.0 image with Siemens NX installed.
  3. Create an AppStream 2.0 fleet and stack.
  4. Invite users to access Siemens NX through a browser.
  5. Validate the setup.

To learn more about AppStream 2.0 concepts and set up, see the previous post Scaling Your Desktop Application Streams with Amazon AppStream 2.0. For a deeper review of all the setup and maintenance steps, see Amazon AppStream 2.0 Developer Guide.

Step 1: Create a file share to load and save design files

To launch and configure the file server

  1. Open the EC2 console and choose Launch Instance.
  2. Scroll to the Microsoft Windows Server 2016 Base Image and choose Select.
  3. Choose an instance type and size for your file server (I chose the general purpose m4.large instance). Choose Next: Configure Instance Details.
  4. Select a VPC and subnet. You launch AppStream 2.0 resources in the same VPC. Choose Next: Add Storage.
  5. If necessary, adjust the size of your EBS volume. Choose Review and Launch, Launch.
  6. On the Instances page, give your file server a name, such as My File Server.
  7. Ensure that the security group associated with the file server instance allows for incoming traffic from the security group that you select for your AppStream 2.0 fleets or image builders. You can use the default security group and select the same group while creating the image builder and fleet in later steps.

Log in to the file server using a remote access client such as Microsoft Remote Desktop. For more information about connecting to an EC2 Windows instance, see Connect to Your Windows Instance.

To enable file sharing

  1. Create a new folder (such as C:\My Graphics Files) and upload the shared files to make available to your users.
  2. From the Windows control panel, enable network discovery.
  3. Choose Server Manager, File and Storage Services, Volumes.
  4. Scroll to Shares and choose Start the Add Roles and Features Wizard. Go through the wizard to install the File Server and Share role.
  5. From the left navigation menu, choose Shares.
  6. Choose Start the New Share Wizard to set up your folder as a file share.
  7. Open the context (right-click) menu on the share and choose Properties, Permissions, Customize Permissions.
  8. Choose Permissions, Add. Add Read and Execute permissions for everyone on the network.

Step 2:  Create an AppStream 2.0 image with Siemens NX installed

To connect to the image builder and install applications

  1. Open the AppStream 2.0 management console and choose Images, Image Builder, Launch Image Builder.
  2. Create a graphics design image builder in the same VPC as your file server.
  3. From the Image builder tab, select your image builder and choose Connect. This opens a new browser tab and display a desktop to log in to.
  4. Log in to your image builder as ImageBuilderAdmin.
  5. Launch the Image Assistant.
  6. Download and install Siemens NX and other applications on the image builder. I added Blender and Firefox, but you could replace these with your own applications.
  7. To verify the user experience, you can test the application performance on the instance.

Before you finish creating the image, you must mount the file share by enabling a few Microsoft Windows services.

To mount the file share

  1. Open services.msc and check the following services:
  • DNS Client
  • Function Discovery Resource Publication
  • SSDP Discovery
  • UPnP Device H
  1. If any of the preceding services have Startup Type set to Manual, open the context (right-click) menu on the service and choose Start. Otherwise, open the context (right-click) menu on the service and choose Properties. For Startup Type, choose Manual, Apply. To start the service, choose Start.
  2. From the Windows control panel, enable network discovery.
  3. Create a batch script that mounts a file share from the storage server set up earlier. The file share is mounted automatically when a user connects to the AppStream 2.0 environment.

Logon Script Location: C:\Users\Public\logon.bat

Script Contents:

:loop

net use H: \\path\to\network\share

PING localhost -n 30 >NUL

IF NOT EXIST H:\ GOTO loop

  1. Open gpedit.msc and choose User Configuration, Windows Settings, Scripts. Set logon.bat as the user logon script.
  2. Next, create a batch script that makes the mounted drive visible to the user.

Logon Script Location: C:\Users\Public\startup.bat

Script Contents:
REG DELETE “HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Policies\Explorer” /v “NoDrives” /f

  1. Open Task Scheduler and choose Create Task.
  2. Choose General, provide a task name, and then choose Change User or Group.
  3. For Enter the object name to select, enter SYSTEM and choose Check Names, OK.
  4. Choose Triggers, New. For Begin the task, choose At startup. Under Advanced Settings, change Delay task for to 5 minutes. Choose OK.
  5. Choose Actions, New. Under Settings, for Program/script, enter C:\Users\Public\startup.bat. Choose OK.
  6. Choose Conditions. Under Power, clear the Start the task only if the computer is on AC power Choose OK.
  7. To view your scheduled task, choose Task Scheduler Library. Close Task Scheduler when you are done.

Step 3:  Create an AppStream 2.0 fleet and stack

To create a fleet and stack

  1. In the AppStream 2.0 management console, choose Fleets, Create Fleet.
  2. Give the fleet a name, such as Graphics-Demo-Fleet, that uses the newly created image and the same VPC as your file server.
  3. Choose Stacks, Create Stack. Give the stack a name, such as Graphics-Demo-Stack.
  4. After the stack is created, select it and choose Actions, Associate Fleet. Associate the stack with the fleet you created in step 1.

Step 4:  Invite users to access Siemens NX through a browser

To invite users

  1. Choose User Pools, Create User to create users.
  2. Enter a name and email address for each user.
  3. Select the users just created, and choose Actions, Assign Stack to provide access to the stack created in step 2. You can also provide access using SAML 2.0 and connect to your Active Directory if necessary. For more information, see the Enabling Identity Federation with AD FS 3.0 and Amazon AppStream 2.0 post.

Your user receives an email invitation to set up an account and use a web portal to access the applications that you have included in your stack.

Step 5:  Validate the setup

Time for a test drive with Siemens NX on AppStream 2.0!

  1. Open the link for the AppStream 2.0 web portal shared through the email invitation. The web portal opens in your default browser. You must sign in with the temporary password and set a new password. After that, you get taken to your app catalog.
  2. Launch Siemens NX and interact with it using the demo files available in the shared storage folder – My Graphics Files.

After I launched NX, I captured the screenshot below. The Siemens PLM team also recorded a video with NX running on AppStream 2.0.

Summary

In this post, I discussed the GPU instances available for delivering rich graphics applications to users in a web browser. While I demonstrated a simple setup, you can scale this out to launch a production environment with users signing in using Active Directory credentials,  accessing persistent storage with Amazon S3, and using other commonly requested features reviewed in the Amazon AppStream 2.0 Launch Recap – Domain Join, Simple Network Setup, and Lots More post.

To learn more about AppStream 2.0 and capabilities added this year, see Amazon AppStream 2.0 Resources.

Disabling Intel Hyper-Threading Technology on Amazon EC2 Windows Instances

Post Syndicated from Brian Beach original https://aws.amazon.com/blogs/compute/disabling-intel-hyper-threading-technology-on-amazon-ec2-windows-instances/

In a prior post, Disabling Intel Hyper-Threading on Amazon Linux, I investigated how the Linux kernel enumerates CPUs. I also discussed the options to disable Intel Hyper-Threading (HT Technology) in Amazon Linux running on Amazon EC2.

In this post, I do the same for Microsoft Windows Server 2016 running on EC2 instances. I begin with a quick review of HT Technology and the reasons you might want to disable it. I also recommend that you take a moment to review the prior post for a more thorough foundation.

HT Technology

HT Technology makes a single physical processor appear as multiple logical processors. Each core in an Intel Xeon processor has two threads of execution. Most of the time, these threads can progress independently; one thread executing while the other is waiting on a relatively slow operation (for example, reading from memory) to occur. However, the two threads do share resources and occasionally one thread is forced to wait while the other is executing.

There a few unique situations where disabling HT Technology can improve performance. One example is high performance computing (HPC) workloads that rely heavily on floating point operations. In these rare cases, it can be advantageous to disable HT Technology. However, these cases are rare, and for the overwhelming majority of workloads you should leave it enabled. I recommend that you test with and without HT Technology enabled, and only disable threads if you are sure it will improve performance.

Exploring HT Technology on Microsoft Windows

Here’s how Microsoft Windows enumerates CPUs. As before, I am running these examples on an m4.2xlarge. I also chose to run Windows Server 2016, but you can walk through these exercises on any version of Windows. Remember that the m4.2xlarge has eight vCPUs, and each vCPU is a thread of an Intel Xeon core. Therefore, the m4.2xlarge has four cores, each of which run two threads, resulting in eight vCPUs.

Windows does not have a built-in utility to examine CPU configuration, but you can download the Sysinternals coreinfo utility from Microsoft’s website. This utility provides useful information about the system CPU and memory topology. For this walkthrough, you enumerate the individual CPUs, which you can do by running coreinfo -c. For example:

C:\Users\Administrator >coreinfo -c

Coreinfo v3.31 - Dump information on system CPU and memory topology
Copyright (C) 2008-2014 Mark Russinovich
Sysinternals - www.sysinternals.com

Logical to Physical Processor Map:
**------ Physical Processor 0 (Hyperthreaded)
--**---- Physical Processor 1 (Hyperthreaded)
----**-- Physical Processor 2 (Hyperthreaded)
------** Physical Processor 3 (Hyperthreaded)

As you can see from the screenshot, the coreinfo utility displays a table where each row is a physical core and each column is a logical CPU. In other words, the two asterisks on the first line indicate that CPU 0 and CPU 1 are the two threads in the first physical core. Therefore, my m4.2xlarge has for four physical processors and each processor has two threads resulting in eight total CPUs, just as expected.

It is interesting to note that Windows Server 2016 enumerates CPUs in a different order than Linux. Remember from the prior post that Linux enumerated the first thread in each core, followed by the second thread in each core. You can see from the output earlier that Windows Server 2016, enumerates both threads in the first core, then both threads in the second core, and so on. The diagram below shows the relationship of CPUs to cores and threads in both operating systems.

In the Linux post, I disabled CPUs 4–6, leaving one thread per core, and effectively disabling HT Technology. You can see from the diagram that you must disable the odd-numbered threads (that is, 1, 3, 5, and 7) to achieve the same result in Windows. Here’s how to do that.

Disabling HT Technology on Microsoft Windows

In Linux, you can globally disable CPUs dynamically. In Windows, there is no direct equivalent that I could find, but there are a few alternatives.

First, you can disable CPUs using the msconfig.exe tool. If you choose Boot, Advanced Options, you have the option to set the number of processors. In the example below, I limit my m4.2xlarge to four CPUs. Restart for this change to take effect.

Unfortunately, Windows does not disable hyperthreaded CPUs first and then real cores, as Linux does. As you can see in the following output, coreinfo reports that my c4.2xlarge has two real cores and four hyperthreads, after rebooting. Msconfig.exe is useful for disabling cores, but it does not allow you to disable HT Technology.

Note: If you have been following along, you can re-enable all your CPUs by unselecting the Number of processors check box and rebooting your system.



C:\Users\Administrator >coreinfo -c

Coreinfo v3.31 - Dump information on system CPU and memory topology
Copyright (C) 2008-2014 Mark Russinovich
Sysinternals - www.sysinternals.com

Logical to Physical Processor Map:
**-- Physical Processor 0 (Hyperthreaded)
--** Physical Processor 1 (Hyperthreaded)

While you cannot disable HT Technology systemwide, Windows does allow you to associate a particular process with one or more CPUs. Microsoft calls this, “processor affinity”. To see an example, use the following steps.

  1. Launch an instance of Notepad.
  2. Open Windows Task Manager and choose Processes.
  3. Open the context (right click) menu on notepad.exe and choose Set Affinity….

This brings up the Processor Affinity dialog box.

As you can see, all the CPUs are allowed to run this instance of notepad.exe. You can uncheck a few CPUs to exclude them. Windows is smart enough to allow any scheduled operations to continue to completion on disabled CPUs. It then saves its state at the next scheduling event, and resumes those operations on another CPU. To ensure that only one thread in each core is able to run a process, you uncheck every other core. This effectively disables HT Technology for this process. For example:

Of course, this can be tedious when you have a large number of cores. Remember that the x1.32xlarge has 128 CPUs. Luckily, you can set the affinity of a running process from PowerShell using the Get-Process cmdlet. For example:

PS C:\&gt; (Get-Process -Name 'notepad').ProcessorAffinity = 0x55;

The ProcessorAffinity attribute takes a bitmask in hexadecimal format. 0x55 in hex is equivalent to 01010101 in binary. Think of the binary encoding as 1=enabled and 0=disabled. This is slightly confusing, but we work left to right so that CPU 0 is the rightmost bit and CPU 7 is the leftmost bit. Therefore, 01010101 means that the first thread in each CPU is enabled just as it was in the diagram earlier.

The calculator built into Windows includes a “programmer view” that helps you convert from hexadecimal to binary. In addition, the ProcessorAffinity attribute is a 64-bit number. Therefore, you can only configure the processor affinity on systems up to 64 CPUs. At the moment, only the x1.32xlarge has more than 64 vCPUs.

In the preceding examples, you changed the processor affinity of a running process. Sometimes, you want to start a process with the affinity already configured. You can do this using the start command. The start command includes an affinity flag that takes a hexadecimal number like the PowerShell example earlier.

C:\Users\Administrator&gt;start /affinity 55 notepad.exe

It is interesting to note that a child process inherits the affinity from its parent. For example, the following commands create a batch file that launches Notepad, and starts the batch file with the affinity set. If you examine the instance of Notepad launched by the batch file, you see that the affinity has been applied to as well.

C:\Users\Administrator&gt;echo notepad.exe > test.bat
C:\Users\Administrator&gt;start /affinity 55 test.bat

This means that you can set the affinity of your task scheduler and any tasks that the scheduler starts inherits the affinity. So, you can disable every other thread when you launch the scheduler and effectively disable HT Technology for all of the tasks as well. Be sure to test this point, however, as some schedulers override the normal inheritance behavior and explicitly set processor affinity when starting a child process.

Conclusion

While the Windows operating system does not allow you to disable logical CPUs, you can set processor affinity on individual processes. You also learned that Windows Server 2016 enumerates CPUs in a different order than Linux. Therefore, you can effectively disable HT Technology by restricting a process to every other CPU. Finally, you learned how to set affinity of both new and running processes using Task Manager, PowerShell, and the start command.

Note: this technical approach has nothing to do with control over software licensing, or licensing rights, which are sometimes linked to the number of “CPUs” or “cores.” For licensing purposes, those are legal terms, not technical terms. This post did not cover anything about software licensing or licensing rights.

If you have questions or suggestions, please comment below.

New – Amazon EC2 Elastic GPUs for Windows

Post Syndicated from Randall Hunt original https://aws.amazon.com/blogs/aws/new-ec2-elastic-gpus-for-windows/

Today we’re excited to announce the general availability of Amazon EC2 Elastic GPUs for Windows. An Elastic GPU is a GPU resource that you can attach to your Amazon Elastic Compute Cloud (EC2) instance to accelerate the graphics performance of your applications. Elastic GPUs come in medium (1GB), large (2GB), xlarge (4GB), and 2xlarge (8GB) sizes and are lower cost alternatives to using GPU instance types like G3 or G2 (for OpenGL 3.3 applications). You can use Elastic GPUs with many instance types allowing you the flexibility to choose the right compute, memory, and storage balance for your application. Today you can provision elastic GPUs in us-east-1 and us-east-2.

Elastic GPUs start at just $0.05 per hour for an eg1.medium. A nickel an hour. If we attach that Elastic GPU to a t2.medium ($0.065/hour) we pay a total of less than 12 cents per hour for an instance with a GPU. Previously, the cheapest graphical workstation (G2/3 class) cost 76 cents per hour. That’s over an 80% reduction in the price for running certain graphical workloads.

When should I use Elastic GPUs?

Elastic GPUs are best suited for applications that require a small or intermittent amount of additional GPU power for graphics acceleration and support OpenGL. Elastic GPUs support up to and including the OpenGL 3.3 API standards with expanded API support coming soon.

Elastic GPUs are not part of the hardware of your instance. Instead they’re attached through an elastic GPU network interface in your subnet which is created when you launch an instance with an Elastic GPU. The image below shows how Elastic GPUs are attached.

Since Elastic GPUs are network attached it’s important to provision an instance with adequate network bandwidth to support your application. It’s also important to make sure your instance security group allows traffic on port 2007.

Any application that can use the OpenGL APIs can take advantage of Elastic GPUs so Blender, Google Earth, SIEMENS SolidEdge, and more could all run with Elastic GPUs. Even Kerbal Space Program!

Ok, now that we know when to use Elastic GPUs and how they work, let’s launch an instance and use one.

Using Elastic GPUs

First, we’ll navigate to the EC2 console and click Launch Instance. Next we’ll select a Windows AMI like: “Microsoft Windows Server 2016 Base”. Then we’ll select an instance type. Then we’ll make sure we select the “Elastic GPU” section and allocate an eg1.medium (1GB) Elastic GPU.

We’ll also include some userdata in the advanced details section. We’ll write a quick PowerShell script to download and install our Elastic GPU software.


<powershell>
Start-Transcript -Path "C:\egpu_install.log" -Append
(new-object net.webclient).DownloadFile('http://ec2-elasticgpus.s3-website-us-east-1.amazonaws.com/latest', 'C:\egpu.msi')
Start-Process "msiexec.exe" -Wait -ArgumentList "/i C:\egpu.msi /qn /L*v C:\egpu_msi_install.log"
[Environment]::SetEnvironmentVariable("Path", $env:Path + ";C:\Program Files\Amazon\EC2ElasticGPUs\manager\", [EnvironmentVariableTarget]::Machine)
Restart-Computer -Force
</powershell>

This software sends all OpenGL API calls to the attached Elastic GPU.

Next, we’ll double check to make sure my security group has TCP port 2007 exposed to my VPC so my Elastic GPU can connect to my instance. Finally, we’ll click launch and wait for my instance and Elastic GPU to provision. The best way to do this is to create a separate SG that you can attach to the instance.

You can see an animation of the launch procedure below.

Alternatively we could have launched on the AWS CLI with a quick call like this:

$aws ec2 run-instances --elastic-gpu-specification Type=eg1.2xlarge \
--image-id ami-1a2b3c4d \
--subnet subnet-11223344 \
--instance-type r4.large \
--security-groups "default" "elasticgpu-sg"

then we could have followed the Elastic GPU software installation instructions here.

We can now see our Elastic GPU is humming along and attached by checking out the Elastic GPU status in the taskbar.

We welcome any feedback on the service and you can click on the Feedback link in the bottom left corner of the GPU Status Box to let us know about your experience with Elastic GPUs.

Elastic GPU Demonstration

Ok, so we have our instance provisioned and our Elastic GPU attached. My teammates here at AWS wanted me to talk about the amazingly wonderful 3D applications you can run, but when I learned about Elastic GPUs the first thing that came to mind was Kerbal Space Program (KSP), so I’m going to run a quick test with that. After all, if you can’t launch Jebediah Kerman into space then what was the point of all of that software? I’ve downloaded KSP and added the launch parameter of -force-opengl to make sure we’re using OpenGL to do our rendering. Below you can see my poor attempt at building a spaceship – I used to build better ones. It looks pretty smooth considering we’re going over a network with a lossy remote desktop protocol.

I’d show a picture of the rocket launch but I didn’t even make it off the ground before I experienced a rapid unscheduled disassembly of the rocket. Back to the drawing board for me.

In the mean time I can check my Amazon CloudWatch metrics and see how much GPU memory I used during my brief game.

Partners, Pricing, and Documentation

To continue to build out great experiences for our customers, our 3D software partners like ANSYS and Siemens are looking to take advantage of the OpenGL APIs on Elastic GPUs, and are currently certifying Elastic GPUs for their software. You can learn more about our partnerships here.

You can find information on Elastic GPU pricing here. You can find additional documentation here.

Now, if you’ll excuse me I have some virtual rockets to build.

Randall

What’s the Diff: Programs, Processes, and Threads

Post Syndicated from Roderick Bauer original https://www.backblaze.com/blog/whats-the-diff-programs-processes-and-threads/

let's talk about Threads

How often have you heard the term threading in relation to a computer program, but you weren’t exactly sure what it meant? How about processes? You likely understand that a thread is somehow closely related to a program and a process, but if you’re not a computer science major, maybe that’s as far as your understanding goes.

Knowing what these terms mean is absolutely essential if you are a programmer, but an understanding of them also can be useful to the average computer user. Being able to look at and understand the Activity Monitor on the Macintosh, the Task Manager on Windows, or Top on Linux can help you troubleshoot which programs are causing problems on your computer, or whether you might need to install more memory to make your system run better.

Let’s take a few minutes to delve into the world of computer programs and sort out what these terms mean. We’ll simplify and generalize some of the ideas, but the general concepts we cover should help clarify the difference between the terms.

Programs

First of all, you probably are aware that a program is the code that is stored on your computer that is intended to fulfill a certain task. There are many types of programs, including programs that help your computer function and are part of the operating system, and other programs that fulfill a particular job. These task-specific programs are also known as “applications,” and can include programs such as word processing, web browsing, or emailing a message to another computer.

Program

Programs are typically stored on disk or in non-volatile memory in a form that can be executed by your computer. Prior to that, they are created using a programming language such as C, Lisp, Pascal, or many others using instructions that involve logic, data and device manipulation, recurrence, and user interaction. The end result is a text file of code that is compiled into binary form (1’s and 0’s) in order to run on the computer. Another type of program is called “interpreted,” and instead of being compiled in advance in order to run, is interpreted into executable code at the time it is run. Some common, typically interpreted programming languages, are Python, PHP, JavaScript, and Ruby.

The end result is the same, however, in that when a program is run, it is loaded into memory in binary form. The computer’s CPU (Central Processing Unit) understands only binary instructions, so that’s the form the program needs to be in when it runs.

Perhaps you’ve heard the programmer’s joke, “There are only 10 types of people in the world, those who understand binary, and those who don’t.”

Binary is the native language of computers because an electrical circuit at its basic level has two states, on or off, represented by a one or a zero. In the common numbering system we use every day, base 10, each digit position can be anything from 0 to 9. In base 2 (or binary), each position is either a 0 or a 1. (In a future blog post we might cover quantum computing, which goes beyond the concept of just 1’s and 0’s in computing.)

Decimal—Base 10 Binary—Base 2
0 0000
1 0001
2 0010
3 0011
4 0100
5 0101
6 0110
7 0111
8 1000
9 1001

How Processes Work

The program has been loaded into the computer’s memory in binary form. Now what?

An executing program needs more than just the binary code that tells the computer what to do. The program needs memory and various operating system resources that it needs in order to run. A “process” is what we call a program that has been loaded into memory along with all the resources it needs to operate. The “operating system” is the brains behind allocating all these resources, and comes in different flavors such as macOS, iOS, Microsoft Windows, Linux, and Android. The OS handles the task of managing the resources needed to turn your program into a running process.

Some essential resources every process needs are registers, a program counter, and a stack. The “registers” are data holding places that are part of the computer processor (CPU). A register may hold an instruction, a storage address, or other kind of data needed by the process. The “program counter,” also called the “instruction pointer,” keeps track of where a computer is in its program sequence. The “stack” is a data structure that stores information about the active subroutines of a computer program and is used as scratch space for the process. It is distinguished from dynamically allocated memory for the process that is known as “the heap.”

diagram of how processes work

There can be multiple instances of a single program, and each instance of that running program is a process. Each process has a separate memory address space, which means that a process runs independently and is isolated from other processes. It cannot directly access shared data in other processes. Switching from one process to another requires some time (relatively) for saving and loading registers, memory maps, and other resources.

This independence of processes is valuable because the operating system tries its best to isolate processes so that a problem with one process doesn’t corrupt or cause havoc with another process. You’ve undoubtedly run into the situation in which one application on your computer freezes or has a problem and you’ve been able to quit that program without affecting others.

How Threads Work

So, are you still with us? We finally made it to threads!

A thread is the unit of execution within a process. A process can have anywhere from just one thread to many threads.

Process vs. Thread

diagram of threads in a process over time

When a process starts, it is assigned memory and resources. Each thread in the process shares that memory and resources. In single-threaded processes, the process contains one thread. The process and the thread are one and the same, and there is only one thing happening.

In multithreaded processes, the process contains more than one thread, and the process is accomplishing a number of things at the same time (technically, it’s almost at the same time—read more on that in the “What about Parallelism and Concurrency?” section below).

diagram of single and multi-treaded process

We talked about the two types of memory available to a process or a thread, the stack and the heap. It is important to distinguish between these two types of process memory because each thread will have its own stack, but all the threads in a process will share the heap.

Threads are sometimes called lightweight processes because they have their own stack but can access shared data. Because threads share the same address space as the process and other threads within the process, the operational cost of communication between the threads is low, which is an advantage. The disadvantage is that a problem with one thread in a process will certainly affect other threads and the viability of the process itself.

Threads vs. Processes

So to review:

  1. The program starts out as a text file of programming code,
  2. The program is compiled or interpreted into binary form,
  3. The program is loaded into memory,
  4. The program becomes one or more running processes.
  5. Processes are typically independent of each other,
  6. While threads exist as the subset of a process.
  7. Threads can communicate with each other more easily than processes can,
  8. But threads are more vulnerable to problems caused by other threads in the same process.

Processes vs. Threads — Advantages and Disadvantages

Process Thread
Processes are heavyweight operations Threads are lighter weight operations
Each process has its own memory space Threads use the memory of the process they belong to
Inter-process communication is slow as processes have different memory addresses Inter-thread communication can be faster than inter-process communication because threads of the same process share memory with the process they belong to
Context switching between processes is more expensive Context switching between threads of the same process is less expensive
Processes don’t share memory with other processes Threads share memory with other threads of the same process

What about Concurrency and Parallelism?

A question you might ask is whether processes or threads can run at the same time. The answer is: it depends. On a system with multiple processors or CPU cores (as is common with modern processors), multiple processes or threads can be executed in parallel. On a single processor, though, it is not possible to have processes or threads truly executing at the same time. In this case, the CPU is shared among running processes or threads using a process scheduling algorithm that divides the CPU’s time and yields the illusion of parallel execution. The time given to each task is called a “time slice.” The switching back and forth between tasks happens so fast it is usually not perceptible. The terms parallelism (true operation at the same time) and concurrency (simulated operation at the same time), distinguish between the two type of real or approximate simultaneous operation.

diagram of concurrency and parallelism

Why Choose Process over Thread, or Thread over Process?

So, how would a programmer choose between a process and a thread when creating a program in which she wants to execute multiple tasks at the same time? We’ve covered some of the differences above, but let’s look at a real world example with a program that many of us use, Google Chrome.

When Google was designing the Chrome browser, they needed to decide how to handle the many different tasks that needed computer, communications, and network resources at the same time. Each browser window or tab communicates with multiple servers on the internet to retrieve text, programs, graphics, audio, video, and other resources, and renders that data for display and interaction with the user. In addition, the browser can open many windows, each with many tasks.

Google had to decide how to handle that separation of tasks. They chose to run each browser window in Chrome as a separate process rather than a thread or many threads, as is common with other browsers. Doing that brought Google a number of benefits. Running each window as a process protects the overall application from bugs and glitches in the rendering engine and restricts access from each rendering engine process to others and to the rest of the system. Isolating JavaScript programs in a process prevents them from running away with too much CPU time and memory, and making the entire browser non-responsive.

Google made the calculated trade-off with a multi-processing design as starting a new process for each browser window has a higher fixed cost in memory and resources than using threads. They were betting that their approach would end up with less memory bloat overall.

Using processes instead of threads provides better memory usage when memory gets low. An inactive window is treated as a lower priority by the operating system and becomes eligible to be swapped to disk when memory is needed for other processes, helping to keep the user-visible windows more responsive. If the windows were threaded, it would be more difficult to separate the used and unused memory as cleanly, wasting both memory and performance.

You can read more about Google’s design decisions on Google’s Chromium Blog or on the Chrome Introduction Comic.

The screen capture below shows the Google Chrome processes running on a MacBook Air with many tabs open. Some Chrome processes are using a fair amount of CPU time and resources, and some are using very little. You can see that each process also has many threads running as well.

activity monitor of Google Chrome

The Activity Monitor or Task Manager on your system can be a valuable ally in helping fine-tune your computer or troubleshooting problems. If your computer is running slowly, or a program or browser window isn’t responding for a while, you can check its status using the system monitor. Sometimes you’ll see a process marked as “Not Responding.” Try quitting that process and see if your system runs better. If an application is a memory hog, you might consider choosing a different application that will accomplish the same task.

Windows Task Manager view

Made it This Far?

We hope this Tron-like dive into the fascinating world of computer programs, processes, and threads has helped clear up some questions you might have had.

The next time your computer is running slowly or an application is acting up, you know your assignment. Fire up the system monitor and take a look under the hood to see what’s going on. You’re in charge now.

We love to hear from you

Are you still confused? Have questions? If so, please let us know in the comments. And feel free to suggest topics for future blog posts.

The post What’s the Diff: Programs, Processes, and Threads appeared first on Backblaze Blog | Cloud Storage & Cloud Backup.

How to Configure Even Stronger Password Policies to Help Meet Your Security Standards by Using AWS Directory Service for Microsoft Active Directory

Post Syndicated from Ravi Turlapati original https://aws.amazon.com/blogs/security/how-to-configure-even-stronger-password-policies-to-help-meet-your-security-standards-by-using-aws-directory-service-for-microsoft-active-directory/

With AWS Directory Service for Microsoft Active Directory (Enterprise Edition), also known as AWS Microsoft AD, you can now create and enforce custom password policies for your Microsoft Windows users. AWS Microsoft AD now includes five empty password policies that you can edit and apply with standard Microsoft password policy tools such as Active Directory Administrative Center (ADAC). With this capability, you are no longer limited to the default Windows password policy. Now, you can configure even stronger password policies and define lockout policies that specify when to lock out an account after login failures.

In this blog post, I demonstrate how to edit these new password policies to help you meet your security standards by using AWS Microsoft AD. I also introduce the password attributes you can modify and demonstrate how to apply password policies to user groups in your domain.

Prerequisites

The instructions in this post assume that you already have the following components running:

  • An active AWS Microsoft AD directory.
  • An Amazon EC2 for Windows Server instance that is domain joined to your AWS Microsoft AD directory and on which you have installed ADAC.

If you still need to meet these prerequisites before proceeding:

Scenario overview

Let’s say I am the Active Directory (AD) administrator of Example Corp. At Example Corp., we have a group of technical administrators, several groups of senior managers, and general, nontechnical employees. I need to create password policies for these groups that match our security standards.

Our general employees have access only to low-sensitivity information. However, our senior managers regularly access confidential information and we want to enforce password complexity (a mix of upper and lower case letters, numbers, and special characters) to reduce the risk of data theft. For our administrators, we want to enforce password complexity policies to prevent unauthorized access to our system administration tools.

Our security standards call for the following enforced password and account lockout policies:

  • General employees – To make it easier for nontechnical general employees to remember their passwords, we do not enforce password complexity. However, we want to enforce a minimum password length of 8 characters and a lockout policy after 6 failed login attempts as a minimum bar to protect against unwanted access to our low-sensitivity information. If a general employee forgets their password and becomes locked out, we let them try again in 5 minutes, rather than require escalated password resets. We also want general employees to rotate their passwords every 60 days with no duplicated passwords in the past 10 password changes.
  • Senior managers – For senior managers, we enforce a minimum password length of 10 characters and require password complexity. An account lockout is enforced after 6 failed attempts with an account lockout duration of 15 minutes. Senior managers must rotate their passwords every 45 days, and they cannot duplicate passwords from the past 20 changes.
  • Administrators – For administrators, we enforce password complexity with a minimum password length of 15 characters. We also want to lock out accounts after 6 failed attempts, have password rotation every 30 days, and disallow duplicate passwords in the past 30 changes. When a lockout occurs, we require a special administrator to intervene and unlock the account so that we can be aware of any potential hacking.
  • Fine-Grained Password Policy administrators – To ensure that only trusted administrators unlock accounts, we have two special administrator accounts (admin and midas) that can unlock accounts. These two accounts have the same policy as the other administrators except they have an account lockout duration of 15 minutes, rather than requiring a password reset. These two accounts are also the accounts used to manage Example Corp.’s password policies.

The following table summarizes how I edit each of the four policies I intend to use.

Policy name EXAMPLE-PSO-01 EXAMPLE-PSO-02 EXAMPLE-PSO-03 EXAMPLE-PSO-05
Precedence 10 20 30 50
User group Fine-Grained Password Policy Administrators Other Administrators Senior Managers General Employees
Minimum password length 15 15 10 8
Password complexity Enable Enable Enable Disable
Maximum password age 30 days 30 days 45 days 60 days
Account complexity Enable Enable Enable Disable
Number of failed logon attempts allowed 6 6 6 6
Duration 15 minutes Not applicable 15 minutes 5 minutes
Password history 24 30 20 10
Until admin manually unlocks account Not applicable Selected Not applicable Not applicable

To implement these password policies, I use 4 of the 5 new password policies available in AWS Microsoft AD:

  1. I first explain how to configure the password policies.
  2. I then demonstrate how to apply the four password policies that match Example Corp.’s security standards for these user groups.

1. Configure password policies in AWS Microsoft AD

To help you get started with password policies, AWS has added the Fine-Grained Pwd Policy Admins AD security group to your AWS Microsoft AD directory. Any user or other security group that is part of the Fine-Grained Pwd Policy Admins group has permissions to edit and apply the five new password policies. By default, your directory Admin is part of the new group and can add other users or groups to this group.

Adding users to the Fine-Grained Pwd Policy Admins user group

Follow these steps to add more users or AD security groups to the Fine-Grained Pwd Policy Admins security group so that they can administer fine-grained password policies:

  1. Launch ADAC from your managed instance.
  2. Switch to the Tree View and navigate to CORP > Users.
  3. Find the Fine Grained Pwd Policy Admins user group. Add any users or groups in your domain to this group.

Edit password policies

To edit fine-grained password policies, open ADAC from any management instance joined to your domain. Switch to the Tree View and navigate to System > Password Settings Container. You will see the five policies containing the string -PSO- that AWS added to your directory, as shown in the following screenshot. Select a policy to edit it.

Screenshot showing the five new password policies

After editing the password policy, apply the policy by adding users or AD security groups to these policies by choosing Add. The default domain GPO applies if you do not configure any of the five password policies. For additional details about using Password Settings Container, go to Step-by-Step: Enabling and Using Fine-Grained Password Policies in AD on the Microsoft TechNet Blog.

The password attributes you can edit

AWS allows you to edit all of the password attributes except Precedence (I explain more about Precedence in the next section). These attributes include:

  • Password history
  • Minimum password length
  • Minimum password age
  • Maximum password age
  • Store password using reversible encryption
  • Password must meet complexity requirements

You also can enforce the following attributes for account lockout settings:

  • The number of failed login attempts allowed
  • Account lockout duration
  • Reset failed login attempts after a specified duration

For more details about how these attributes affect password enforcement, see AD DS: Fine-Grained Password Policies on Microsoft TechNet.

Understanding password policy precedence

AD password policies have a precedence (a numerical attribute that AD uses to determine the resultant policy) associated with them. Policies with a lower value for Precedence have higher priority than other policies. A user inherits all policies that you apply directly to the user or to any groups to which the user belongs. For example, suppose jsmith is a member of the HR group and also a member of the MANAGERS group. If I apply a policy with a Precedence of 50 to the HR group and a policy with a Precedence of 40 to MANAGERS, the policy with the Precedence value of 40 ranks higher and AD applies that policy to jsmith.

If you apply multiple policies to a user or group, the resultant policy is determined as follows by AD:

  1. If you apply a policy directly to a user, AD enforces the lowest directly applied password policy.
  2. If you did not apply a policy directly to the user, AD enforces the policy with the lowest Precedence value of all policies inherited by the user through the user’s group membership.

For more information about AD fine-grained policies, see AD DS: Fine-Grained Password Policies on Microsoft TechNet.

2. Apply password policies to user groups

In this section, I demonstrate how to apply Example Corp.’s password policies. Except in rare cases, I only apply policies by group membership, which ensures that AD does not enforce a lower priority policy on an individual user if have I added them to a group with a higher priority policy.

Because my directory is new, I use a Remote Desktop Protocol (RDP) connection to sign in to the Windows Server instance I domain joined to my AWS Microsoft AD directory. Signing in with the admin account, I launch ADAC to perform the following tasks:

  1. First, I set up my groups so that I can apply password policies to them. Later, I can create user accounts and add them to my groups and AD applies the right policy by using the policy precedence and resultant policy algorithms I discussed previously. I start by adding the two special administrative accounts (admin and midas) that I described previously to the Fine-Grained Pwd Policy Admins. Because AWS Microsoft AD adds my default admin account to Fine-Grained Pwd Policy Admins, I only need to create midas and then add midas to the Fine-Grained Pwd Policy Admins group.
  2. Next, I create the Other Administrators, Senior Managers, and General Employees groups that I described previously, as shown in the following screenshot.
    Screenshot of the groups created

For this post’s example, I use these four policies:

  1. EXAMPLE-PSO-01 (highest priority policy) – For the administrators who manage Example Corp.’s password policies. Applying this highest priority policy to the Fine-Grained Pwd Policy Admins group prevents these users from being locked out if they also are assigned to a different policy.
  2. EXAMPLE-PSO-02 (the second highest priority policy) – For Example Corp.’s other administrators.
  3. EXAMPLE-PSO-03 (the third highest priority policy) – For Example Corp.’s senior managers.
  4. EXAMPLE-PSO-05 (the lowest priority policy) – For Example Corp.’s general employees.

This leaves me one password policy (EXAMPLE-PSO-04) that I can use for in the future if needed.

I start by editing the policy, EXAMPLE-PSO-01. To edit the policy, I follow the Edit password policies section from earlier in this post. When finished, I add the Fine-Grained Pwd Policy Admins group to that policy, as shown in the following screenshot. I then repeat the process for each of the remaining policies, as described in the Scenario overview section earlier in this post.

Screenshot of adding the Fine-Grained Pwd Policy Admins group to the EXAMPLE-PSO-01 policy

Though AD enforces new password policies, the timing related to how password policies replicate in the directory, the types of attributes that are changed, and the timing of user password changes can cause variability in the immediacy of policy enforcement. In general, after the policies are replicated throughout the directory, attributes that affect account lockout and password age take effect. Attributes that affect the quality of a password, such as password length, take effect when the password is changed. If the password age for a user is in compliance, but their password strength is out of compliance, the user is not forced to change their password. For more information password policy impact, see this Microsoft TechNet article.

Summary

In this post, I have demonstrated how you can configure strong password policies to meet your security standards by using AWS Microsoft AD. To learn more about AWS Microsoft AD, see the AWS Directory Service home page.

If you have comments about this post, submit them in the “Comments” section below. If you have questions about this blog post, start a new thread on the Directory Service forum.

– Ravi

How to Increase the Redundancy and Performance of Your AWS Directory Service for Microsoft AD Directory by Adding Domain Controllers

Post Syndicated from Peter Pereira original https://aws.amazon.com/blogs/security/how-to-increase-the-redundancy-and-performance-of-your-aws-directory-service-for-microsoft-ad-directory-by-adding-domain-controllers/

You can now increase the redundancy and performance of your AWS Directory Service for Microsoft Active Directory (Enterprise Edition), also known as AWS Microsoft AD, directory by deploying additional domain controllers. Adding domain controllers increases redundancy, resulting in even greater resilience and higher availability. This new capability enables you to have at least two domain controllers operating, even if an Availability Zone were to be temporarily unavailable. The additional domain controllers also improve the performance of your applications by enabling directory clients to load-balance their requests across a larger number of domain controllers. For example, AWS Microsoft AD enables you to use larger fleets of Amazon EC2 instances to run .NET applications that perform frequent user attribute lookups.

AWS Microsoft AD is a highly available, managed Active Directory built on actual Microsoft Windows Server 2012 R2 in the AWS Cloud. When you create your AWS Microsoft AD directory, AWS deploys two domain controllers that are exclusively yours in separate Availability Zones for high availability. Now, you can deploy additional domain controllers easily via the Directory Service console or API, by specifying the total number of domain controllers that you want.

AWS Microsoft AD distributes the additional domain controllers across the Availability Zones and subnets within the Amazon VPC where your directory is running. AWS deploys the domain controllers, configures them to replicate directory changes, monitors for and repairs any issues, performs daily snapshots, and updates the domain controllers with patches. This reduces the effort and complexity of creating and managing your own domain controllers in the AWS Cloud.

In this blog post, I create an AWS Microsoft AD directory with two domain controllers in each Availability Zone. This ensures that I always have at least two domain controllers operating, even if an entire Availability Zone were to be temporarily unavailable. To accomplish this, first I create an AWS Microsoft AD directory with one domain controller per Availability Zone, and then I deploy one additional domain controller per Availability Zone.

Solution architecture

The following diagram shows how AWS Microsoft AD deploys all the domain controllers in this solution after you complete Steps 1 and 2. In Step 1, AWS Microsoft AD deploys the two required domain controllers across multiple Availability Zones and subnets in an Amazon VPC. In Step 2, AWS Microsoft AD deploys one additional domain controller per Availability Zone and subnet.

Solution diagram

Step 1: Create an AWS Microsoft AD directory

First, I create an AWS Microsoft AD directory in an Amazon VPC. I can add domain controllers only after AWS Microsoft AD configures my first two required domain controllers. In my example, my domain name is example.com.

When I create my directory, I must choose the VPC in which to deploy my directory (as shown in the following screenshot). Optionally, I can choose the subnets in which to deploy my domain controllers, and AWS Microsoft AD ensures I select subnets from different Availability Zones. In this case, I have no subnet preference, so I choose No Preference from the Subnets drop-down list. In this configuration, AWS Microsoft AD selects subnets from two different Availability Zones to deploy the directory.

Screenshot of choosing the VPC in which to create the directory

I then choose Next Step to review my configuration, and then choose Create Microsoft AD. It takes approximately 40 minutes for my domain controllers to be created. I can check the status from the AWS Directory Service console, and when the status is Active, I can add my two additional domain controllers to the directory.

Step 2: Deploy two more domain controllers in the directory

Now that I have created an AWS Microsoft AD directory and it is active, I can deploy two additional domain controllers in the directory. AWS Microsoft AD enables me to add domain controllers through the Directory Service console or API. In this post, I use the console.

To deploy two more domain controllers in the directory:

  1. I open the AWS Management Console, choose Directory Service, and then choose the Microsoft AD Directory ID. In my example, my recently created directory is example.com, as shown in the following screenshot.Screenshot of choosing the Directory ID
  2. I choose the Domain controllers tab next. Here I can see the two domain controllers that AWS Microsoft AD created for me in Step 1. It also shows the Availability Zones and subnets in which AWS Microsoft AD deployed the domain controllers.Screenshot showing the domain controllers, Availability Zones, and subnets
  3. I then choose Modify on the Domain controllers tab. I specify the total number of domain controllers I want by choosing the subtract and add buttons. In my example, I want four domain controllers in total for my directory.Screenshot showing how to specify the total number of domain controllers
  4. I choose Apply. AWS Microsoft AD deploys the two additional domain controllers and distributes them evenly across the Availability Zones and subnets in my Amazon VPC. Within a few seconds, I can see the Availability Zones and subnets in which AWS Microsoft AD deployed my two additional domain controllers with a status of Creating (see the following screenshot). While AWS Microsoft AD deploys the additional domain controllers, my directory continues to operate by using the active domain controllers—with no disruption of service.
    Screenshot of two additional domain controllers with a status of "Creating"
  5. When AWS Microsoft AD completes the deployment steps, all domain controllers are in Active status and available for use by my applications. As a result, I have improved the redundancy and performance of my directory.

Note: After deploying additional domain controllers, I can reduce the number of domain controllers by repeating the modification steps with a lower number of total domain controllers. Unless a directory is deleted, AWS Microsoft AD does not allow fewer than two domain controllers per directory in order to deliver fault tolerance and high availability.

Summary

In this blog post, I demonstrated how to deploy additional domain controllers in your AWS Microsoft AD directory. By adding domain controllers, you increase the redundancy and performance of your directory, which makes it easier for you to migrate and run mission-critical Active Directory–integrated workloads in the AWS Cloud without having to deploy and maintain your own AD infrastructure.

To learn more about AWS Directory Service, see the AWS Directory Service home page. If you have questions, post them on the Directory Service forum.

– Peter

AWS Price Reduction – SQL Server Standard Edition on EC2

Post Syndicated from Jeff Barr original https://aws.amazon.com/blogs/aws/aws-price-reduction-sql-server-standard-edition-on-ec2/

I’m happy to be able to announce the 62nd AWS price reduction, this one for Microsoft SQL Server Standard Edition on EC2.

Many enterprise workloads run on Microsoft Windows, primarily on-premises or in corporate data centers. We believe that AWS is the best place to build, deploy, scale, and manage Windows applications due to the breadth of services that we provide, backed up by our global reach and our partner ecosystem. Customers like Adobe, Pitney Bowes, and DeVry University have all moved core production Windows Server workloads to AWS. Their applications run the gamut from SharePoint sites to custom .NET applications and SAP, and frequently use SQL Server.

Microsoft SQL Server on AWS runs on an EC2 Windows instance and can support your application development and migration efforts. It gives you control over every setting, just as you would have if you were running your relational database on-premises, with support for 32-bit and 64-bit versions.

Today we are reducing the On-Demand and Reserved Instance prices for Microsoft SQL Server Standard Edition on EC2 running on R4, M4, I3, and X1 instances by up to 52%, depending on instance type, size, and region. You can build and run enterprise-scale applications, massively scalable websites. and mobile applications even more cost-effectively than before.

Here are the largest price reductions for each region and instance type:

Region R4 M4 I3 X1
US East (Northern Virginia) -51% -29% -50% -52%
US East (Ohio) -51% -29% -50% -52%
US West (Oregon) -51% -29% -50% -52%
US West (Northern California) -51% -30% -50%
Canada (Central) -51% -51% -50% -44%
South America (São Paulo) -49% -30% -48%
EU (Ireland) -51% -29% -50% -51%
EU (Frankfurt) -51% -29% -50% -50%
EU (London) -51% -51% -50% -44%
Asia Pacific (Singapore) -51% -31% -50% -50%
Asia Pacific (Sydney) -51% -30% -50% -50%
Asia Pacific (Tokyo) -51% -29% -50% -50%
Asia Pacific (Seoul)  -51% -31% -50% -50%
Asia Pacific (Mumbai)  -51% -33% -50% -50%

The new, lower prices for On-Demand instances are in effect as of July 1, 2017. The new pricing for Reserved Instances is in effect today.

Jeff;



The FAA Is Arguing for Security by Obscurity

Post Syndicated from Bruce Schneier original https://www.schneier.com/blog/archives/2017/06/the_faa_is_argu.html

In a proposed rule by the FAA, it argues that software in an Embraer S.A. Model ERJ 190-300 airplane is secure because it’s proprietary:

In addition, the operating systems for current airplane systems are usually and historically proprietary. Therefore, they are not as susceptible to corruption from worms, viruses, and other malicious actions as are more-widely used commercial operating systems, such as Microsoft Windows, because access to the design details of these proprietary operating systems is limited to the system developer and airplane integrator. Some systems installed on the Embraer Model ERJ 190-300 airplane will use operating systems that are widely used and commercially available from third-party software suppliers. The security vulnerabilities of these operating systems may be more widely known than are the vulnerabilities of proprietary operating systems that the avionics manufacturers currently use.

Longtime readers will immediately recognize the “security by obscurity” argument. Its main problem is that it’s fragile. The information is likely less obscure than you think, and even if it is truly obscure, once it’s published you’ve just lost all your security.

This is me from 2014, 2004, and 2002.

The comment period for this proposed rule is ongoing. If you comment, please be polite — they’re more likely to listen to you.
