Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps

Post Syndicated from Omer Yoachimik original https://blog.cloudflare.com/moobot-vs-gatebot-cloudflare-automatically-blocks-botnet-ddos-attack-topping-at-654-gbps/

Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps

On July 3, Cloudflare’s global DDoS protection system, Gatebot, automatically detected and mitigated a UDP-based DDoS attack that peaked at 654 Gbps. The attack was part of a ten-day multi-vector DDoS campaign targeting a Magic Transit customer and was mitigated without any human intervention. The DDoS campaign is believed to have been generated by Moobot, a Mirai-based botnet. No downtime, service degradation, or false positives were reported by the customer.

Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps
Moobot Targets 654 Gbps towards a Magic Transit Customer

Over those ten days, our systems automatically detected and mitigated over 5,000 DDoS attacks against this one customer, mainly UDP floods, SYN floods, ACK floods, and GRE floods. The largest DDoS attack was a UDP flood and lasted a mere 2 minutes. This attack targeted only one IP address but hit multiple ports. The attack originated from 18,705 unique IP addresses, each believed to be a Moobot-infected IoT device.

Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps
Attack Distribution by Country – From 100 countries

The attack was observed in Cloudflare’s data centers in 100 countries around the world. Approximately 89% of the attack traffic originated from just 10 countries with the US leading at 41%, followed by South Korea and Japan in second place (12% each), and India in third (10%). What this likely means is that the malware has infected at least 18,705 devices in 100 countries around the world.

Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps
Attack Distribution by Country – Top 10

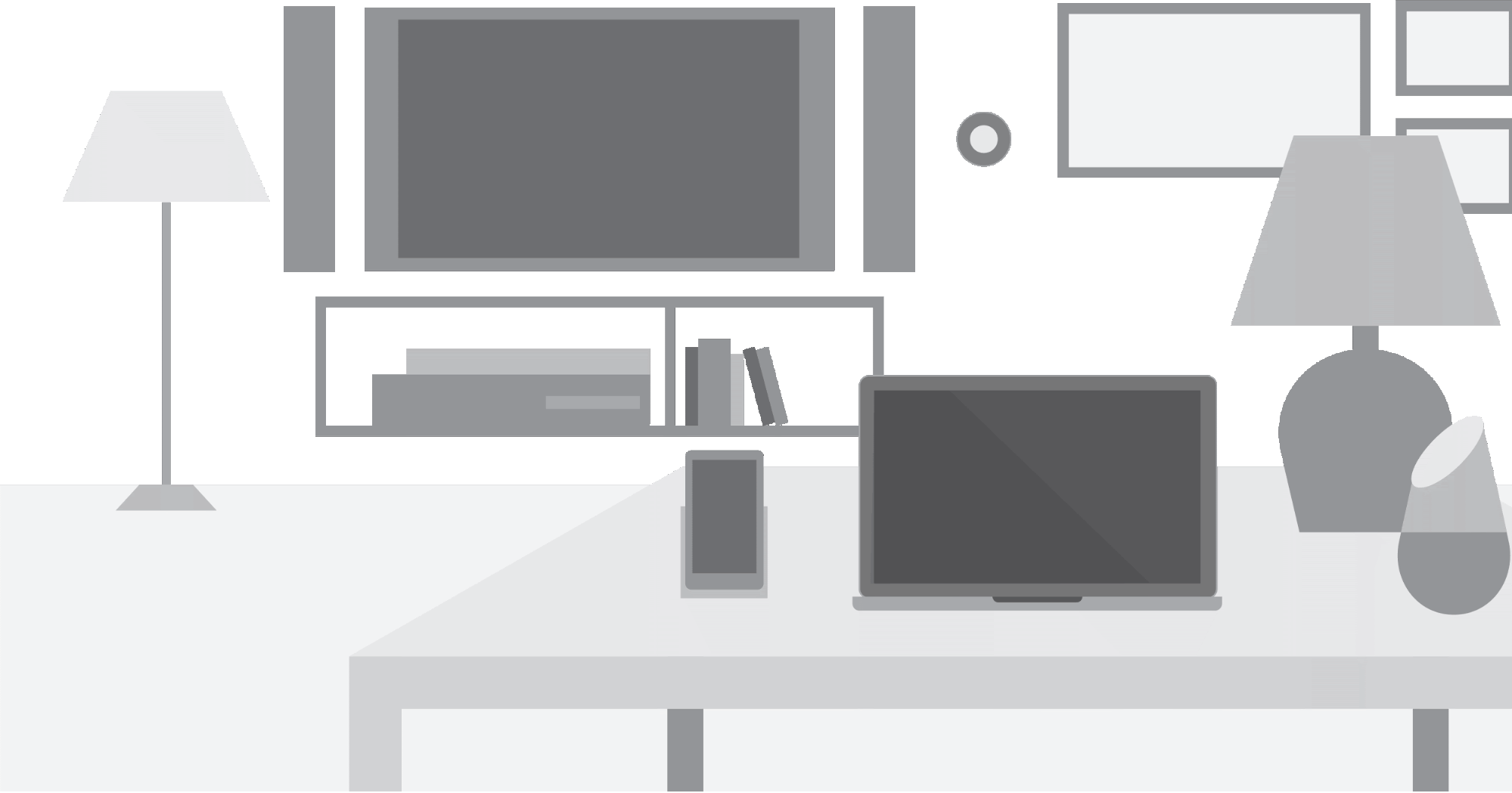

Moobot – Self Propagating Malware

‘Moobot’ sounds like a cute name, but there’s nothing cute about it. According to Netlab 360, Moobot is the codename of a self-propagating Mirai-based malware first discovered in 2019. It infects IoT (Internet of Things) devices using remotely exploitable vulnerabilities or weak default passwords. IoT is a term used to describe smart devices such as security hubs and cameras, smart TVs, smart speakers, smart lights, sensors, and even refrigerators that are connected to the Internet.

Once a device is infected by Moobot, control of the device is transferred to the operator of the command and control (C2) server, who can issue commands remotely such as attacking a target and locating additional vulnerable IoT devices to infect (self-propagation).

Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps

Moobot is a Mirai-based botnet, and has similar capabilities (modules) as Mirai:

  1. Self-propagation – The self-propagation module is in charge of the botnet’s growth. After an IoT device is infected, it randomly scans the Internet for open telnet ports and reports back to the C2 server. Once the C2 server gains knowledge of open telnet ports around the world, it tries to leverage known vulnerabilities or brute force its way into the IoT devices with common or default credentials.
Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps
Self-propagation
  1. Synchronized attacks – The C2 server orchestrates a coordinated flood of packets or HTTP requests with the goal of creating a denial of service event for the target’s website or service.
Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps
Synchronized attacks

The botnet operator may use multiple C2 servers in various locations around the world in order to reduce the risk of exposure. Infected devices may be assigned to different C2 servers varying by region and module; one server for self-propagation and another for launching attacks. Thus if a C2 server is compromised and taken down by law enforcement authorities, only parts of the botnet are deactivated.

Why this attack was not successful

This is the second large scale attack in the past few months that we observed on Cloudflare’s network. The previous one peaked at 754M packets per second and attempted to take down our routers with a high packet rate. Despite the high packet rate, the 754Mpps attack peaked at a mere 253 Gbps.

As opposed to the high packet rate attack, this attack was a high bit rate attack, peaking at 654 Gbps. Due to the high bit rates of this attack, it seems as though the attacker tried (and failed) to cause a denial of service event by saturating our Internet link capacity. So let’s explore why this attack was not successful.

Cloudflare’s global network capacity is over 42 Tbps and growing. Our network spans more than 200 cities in over 100 countries, including 17 cities in mainland China. It interconnects with over 8,800 networks globally, including major ISPs, cloud services, and enterprises. This level of interconnectivity along with the use of Anycast ensures that our network can easily absorb even the largest attacks.

Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps
The Cloudflare Network

After traffic arrives at an edge data center, it is then load-balanced efficiently using our own Layer 4 load-balancer that we built, Unimog, which uses our appliances’ health and other metrics to load-balance traffic intelligently within a data center to avoid overwhelming any single server.

Besides the use of Anycast for inter-data center load balancing and Unimog for intra-data center load balancing, we also utilize various forms of traffic engineering in order to deal with sudden changes in traffic loads across our network. We utilize both automatic and manual traffic engineering methods that can be employed by our 24/7/365 Site Reliability Engineering (SRE) team.

These combined factors significantly reduce the likelihood of a denial of service event due to link saturation or appliances being overwhelmed — and as seen in this attack, no link saturation occurred.

Detecting & Mitigating DDoS attacks

Once traffic arrives at our edge, it encounters our three software-defined DDoS protection systems:

  1. Gatebot – Cloudflare’s centralized DDoS protection systems for detecting and mitigating globally distributed volumetric DDoS attacks. Gatebot runs in our network’s core data center. It receives samples from every one of our edge data centers, analyzes them, and automatically sends mitigation instructions when attacks are detected. Gatebot is also synchronized to each of our customers’ web servers to identify its health and triggers mitigation accordingly.
  2. dosd (denial of service daemon) – Cloudflare’s decentralized DDoS protection systems. dosd runs autonomously in each server in every Cloudflare data center around the world, analyzing traffic and applying local mitigation rules when needed. Besides being able to detect and mitigate attacks at super-fast speeds, dosd significantly improves our network resilience by delegating the detection and mitigation capabilities to the edge.
  3. flowtrackd (flow tracking daemon) – Cloudflare’s TCP state tracking machine for detecting and mitigating the most randomized and sophisticated TCP-based DDoS attacks in unidirectional routing topologies (such as the case for Magic Transit). flowtrackd is able to identify the state of a TCP connection and then drops, challenges, or rate-limits packets that don’t belong to a legitimate connection.
Moobot vs. Gatebot: Cloudflare Automatically Blocks Botnet DDoS Attack Topping At 654 Gbps
Cloudflare DDoS Protection Lifecycle

The three DDoS protection systems collect traffic samples in order to detect DDoS attacks. The types of traffic data that they sample include:

  1. Packet fields such as the source IP, source port, destination IP, destination port, protocol, TCP flags, sequence number, options, and packet rate.
  2. HTTP request metadata such as HTTP headers, user agent, query-string, path, host, HTTP method, HTTP version, TLS cipher version, and request rate.
  3. HTTP response metrics such as error codes returned by customers’ origin servers and their rates.

Our systems then crunch these sample data points together to form a real-time view of our network’s security posture and our customer’s origin server health. They look for attack patterns and traffic anomalies. When found, a mitigation rule with a dynamically crafted attack signature is generated in real-time. Rules are propagated to the most optimal place for cost-effective mitigation. For example, an L7 HTTP flood might be dropped at L4 to reduce the CPU consumption.

Rules that are generated by dosd and flowtrackd are propagated within a single data center for rapid mitigation. Gatebot’s rules are propagated to all of the edge data centers which then take priority over dosd’s rules for an even and optimal mitigation. Even if the attack is detected in a subset of edge data centers, Gatebot propagates the mitigation instructions to all of Cloudflare’s edge data centers — effectively sharing the threat intelligence across our network as a form of proactive protection.

In the case of this attack, in each edge data center, dosd generated rules to mitigate the attack promptly. Then as Gatebot received and analyzed samples from the edge, it determined that this was a globally distributed attack. Gatebot propagated unified mitigation instructions to the edge, which prepared each and every one of our 200+ data centers to tackle the attack as the attack traffic may shift to a different data center due to Anycast or traffic engineering.

No inflated bills

DDoS attacks obviously pose the risk of an outage and service disruption. But there is another risk to consider — the cost of mitigation. During these ten days, more than 65 Terabytes of attack traffic were generated by the botnet. However, as part of Cloudflare’s unmetered DDoS protection guarantee, Cloudflare mitigated and absorbed the attack traffic without billing the customer. The customer doesn’t need to submit a retroactive credit request. Attack traffic is automatically excluded from our billing system. We eliminated the financial risk.

flowtrackd: DDoS Protection with Unidirectional TCP Flow Tracking

Post Syndicated from Omer Yoachimik original https://blog.cloudflare.com/announcing-flowtrackd/

flowtrackd: DDoS Protection with Unidirectional TCP Flow Tracking

flowtrackd: DDoS Protection with Unidirectional TCP Flow Tracking

Magic Transit is Cloudflare’s L3 DDoS Scrubbing service for protecting network infrastructure. As part of our ongoing investment in Magic Transit and our DDoS protection capabilities, we’re excited to talk about a new piece of software helping to protect Magic Transit customers: flowtrackd. flowrackd is a software-defined DDoS protection system that significantly improves our ability to automatically detect and mitigate even the most complex TCP-based DDoS attacks. If you are a Magic Transit customer, this feature will be enabled by default at no additional cost on July 29, 2020.

flowtrackd: DDoS Protection with Unidirectional TCP Flow Tracking

TCP-Based DDoS Attacks

In the first quarter of 2020, one out of every two L3/4 DDoS attacks Cloudflare mitigated was an ACK Flood, and over 66% of all L3/4 attacks were TCP based. Most types of DDoS attacks can be mitigated by finding unique characteristics that are present in all attack packets and using that to distinguish ‘good’ packets from the ‘bad’ ones. This is called “stateless” mitigation, because any packet that has these unique characteristics can simply be dropped without remembering any information (or “state”) about the other packets that came before it. However, when attack packets have no unique characteristics, then “stateful” mitigation is required, because whether a certain packet is good or bad depends on the other packets that have come before it.

The most sophisticated types of TCP flood require stateful mitigation, where every TCP connection must be tracked in order to know whether any particular TCP packet is part of an active connection. That kind of mitigation is called “flow tracking”, and it is typically implemented in Linux by the iptables conntrack module. However, DDoS protection with conntrack is not as simple as flipping the iptable switch, especially at the scale and complexity that Cloudflare operates in. If you’re interested to learn more, in this blog we talk about the technical challenges of implementing iptables conntrack.

Complex TCP DDoS attacks pose a threat as they can be harder to detect and mitigate. They therefore have the potential to cause service degradation, outages and increased false positives with inaccurate mitigation rules. So how does Cloudflare block patternless DDoS attacks without affecting legitimate traffic?

Bidirectional TCP Flow Tracking

Using Cloudflare’s traditional products, HTTP applications can be protected by the WAF service, and TCP/UDP applications can be protected by Spectrum. These services are “reverse proxies“, meaning that traffic passes through Cloudflare in both directions. In this bidirectional topology, we see the entire TCP flow (i.e., segments sent by both the client and the server) and can therefore track the state of the underlying TCP connection. This way, we know if a TCP packet belongs to an existing flow or if it is an “out of state” TCP packet. Out of state TCP packets look just like regular TCP packets, but they don’t belong to any real connection between a client and a server. These packets are most likely part of an attack and are therefore dropped.

flowtrackd: DDoS Protection with Unidirectional TCP Flow Tracking
Reverse Proxy: What Cloudflare Sees

While not trivial, tracking TCP flows can be done when we serve as a proxy between the client and server, allowing us to absorb and mitigate out of state TCP floods. However it becomes much more challenging when we only see half of the connection: the ingress flow. This visibility into ingress but not egress flows is the default deployment method for Cloudflare’s Magic Transit service, so we had our work cut out for us in identifying out of state packets.

The Challenge With Unidirectional TCP Flows

With Magic Transit, Cloudflare receives inbound internet traffic on behalf of the customer, scrubs DDoS attacks, and routes the clean traffic to the customer’s data center over a tunnel. The data center then responds directly to the eyeball client using a technique known as Direct Server Return (DSR).

flowtrackd: DDoS Protection with Unidirectional TCP Flow Tracking
Magic Transit: Asymmetric L3 Routing

Using DSR, when a TCP handshake is initiated by an eyeball client, it sends a SYN packet that gets routed via Cloudflare to the origin data center. The origin then responds with a SYN-ACK directly to the client, bypassing Cloudflare. Finally, the client responds with an ACK that once again routes to the origin via Cloudflare and the connection is then considered established.

flowtrackd: DDoS Protection with Unidirectional TCP Flow Tracking
L3 Routing: What Cloudflare Sees

In a unidirectional flow we don’t see the SYN+ACK sent from the origin to the eyeball client, and therefore can’t utilize our existing flow tracking capabilities to identify out of state packets.

Unidirectional TCP Flow Tracking

To overcome the challenges of unidirectional flows, we recently completed the development and rollout of a new system, codenamed flowtrackd (“flow tracking daemon”). flowtrackd is a state machine that hooks into the network interface. It tracks unidirectional TCP flows using only the ingress traffic that routes through Cloudflare to determine the state of the TCP connection. flowtrackd is then able to determine if a packet is part of a new connection, an open one, a connection that is closing, one that is closed, or if it’s an out of state packet. Once a high volume of out-of-state packets is detected, flowtrackd will either challenge (force RST) or drop the packets.

flowtrackd: DDoS Protection with Unidirectional TCP Flow Tracking
Snapshot from what flowtrackd sees

The state machine that determines the state of the flows was developed in-house and complements Gatebot and dosd. Together Gatebot, dosd, and flowtrackd provide a comprehensive multi layer DDoS protection.

Releasing flowtrackd to the Wild

And it works! Less than a day after releasing flowtrackd to an early access customer, flowtrackd automatically detected and mitigated an ACK flood that peaked at 6 million packets per second. No downtime, service disruption, or false positives were reported.

flowtrackd: DDoS Protection with Unidirectional TCP Flow Tracking
flowtrackd Mitigates 6M pps Flood

Cloudflare’s DDoS Protection – Delivered From Every Data Center

As opposed to legacy scrubbing center providers with limited network infrastructures, Cloudflare provides DDoS Protection from every one of our data centers in over 200 locations around the world. We write our own software-defined DDoS protection systems. Notice I say systems, because as opposed to vendors that use a dedicated third party appliance, we’re able to write and spin up whatever software we need, deploy it in the optimal location in our tech stack and are therefore not dependent on other vendors or be limited to the capabilities of one appliance.

flowtrackd joins the Cloudflare DDoS protection family which includes our veteran Gatebot and the younger and energetic dosd. flowtrackd will be available from every one of our data centers, with a total mitigation capacity of over 37 Tbps, protecting our Magic Transit customers against the most complex TCP DDoS attacks.

New to Magic Transit? Replace your legacy provider with Magic Transit and pay nothing until your current contract expires. Offer expires September 1, 2020. Click here for details.

No Humans Involved: Mitigating a 754 Million PPS DDoS Attack Automatically

Post Syndicated from Omer Yoachimik original https://blog.cloudflare.com/no-humans-involved-mitigating-a-754-million-pps-ddos-attack-automatically/

No Humans Involved: Mitigating a 754 Million PPS DDoS Attack Automatically

No Humans Involved: Mitigating a 754 Million PPS DDoS Attack Automatically

On June 21, Cloudflare automatically mitigated a highly volumetric DDoS attack that peaked at 754 million packets per second. The attack was part of an organized four day campaign starting on June 18 and ending on June 21: attack traffic was sent from over 316,000 IP addresses towards a single Cloudflare IP address that was mostly used for websites on our Free plan. No downtime or service degradation was reported during the attack, and no charges accrued to customers due to our unmetered mitigation guarantee.

The attack was detected and handled automatically by Gatebot, our global DDoS detection and mitigation system without any manual intervention by our teams. Notably, because our automated systems were able to mitigate the attack without issue, no alerts or pages were sent to our on-call teams and no humans were involved at all.

No Humans Involved: Mitigating a 754 Million PPS DDoS Attack Automatically
Attack Snapshot – Peaking at 754 Mpps. The two different colors in the graph represent two separate systems dropping packets.

During those four days, the attack utilized a combination of three attack vectors over the TCP protocol: SYN floods, ACK floods and SYN-ACK floods. The attack campaign sustained for multiple hours at rates exceeding 400-600 million packets per second and peaked multiple times above 700 million packets per second, with a top peak of 754 million packets per second. Despite the high and sustained packet rates, our edge continued serving our customers during the attack without impacting performance at all

The Three Types of DDoS: Bits, Packets & Requests

Attacks with high bits per second rates aim to saturate the Internet link by sending more bandwidth per second than the link can handle. Mitigating a bit-intensive flood is similar to a dam blocking gushing water in a canal with limited capacity, allowing just a portion through.

No Humans Involved: Mitigating a 754 Million PPS DDoS Attack Automatically
Bit Intensive DDoS Attacks as a Gushing River Blocked By Gatebot

In such cases, the Internet service provider may block or throttle the traffic above the allowance resulting in denial of service for legitimate users that are trying to connect to the website but are blocked by the service provider. In other cases, the link is simply saturated and everything behind that connection is offline.

No Humans Involved: Mitigating a 754 Million PPS DDoS Attack Automatically
Swarm of Mosquitoes as a Packet Intensive DDoS Attack

However in this DDoS campaign, the attack peaked at a mere 250 Gbps (I say, mere, but ¼ Tbps is enough to knock pretty much anything offline if it isn’t behind some DDoS mitigation service) so it does not seem as the attacker intended to saturate our Internet links, perhaps because they know that our global capacity exceeds 37 Tbps. Instead, it appears the attacker attempted (and failed) to overwhelm our routers and data center appliances with high packet rates reaching 754 million packets per second. As opposed to water rushing towards a dam, flood of packets can be thought of as a swarm of millions of mosquitoes that you need to zap one by one.

No Humans Involved: Mitigating a 754 Million PPS DDoS Attack Automatically
Zapping Mosquitoes with Gatebot

Depending on the ‘weakest link’ in a data center, a packet intensive DDoS attack may impact the routers, switches, web servers, firewalls, DDoS mitigation devices or any other appliance that is used in-line. Typically, a high packet rate may cause the memory buffer to overflow and thus voiding the router’s ability to process additional packets. This is because there’s a small fixed CPU cost of handing each packet and so if you can send a lot of small packets you can block an Internet connection not by filling it but by causing the hardware that handles the connection to be overwhelmed with processing.

Another form of DDoS attack is one with a high HTTP request per second rate. An HTTP request intensive DDoS attack aims to overwhelm a web server’s resources with more HTTP requests per second than the server can handle. The goal of a DDoS attack with a high request per second rate is to max out the CPU and memory utilization of the server in order to crash it or prevent it from being able to respond to legitimate requests. Request intensive DDoS attacks allow the attacker to generate much less bandwidth, as opposed to bit intensive attacks, and still cause a denial of service.

Automated DDoS Detection & Mitigation

So how did we handle 754 million packets per second? First, Cloudflare’s network utilizes BGP Anycast to spread attack traffic globally across our fleet of data centers. Second, we built our own DDoS protection systems, Gatebot and dosd, which drop packets inside the Linux kernel for maximum efficiency in order to handle massive floods of packets. And third, we built our own L4 load-balancer, Unimog, which uses our appliances’ health and other various metrics to load-balance traffic intelligently within a data center.

In 2017, we published a blog introducing Gatebot, one of our two DDoS protection systems. The blog was titled Meet Gatebot – a bot that allows us to sleep, and that’s exactly what happened during this attack. The attack surface was spread out globally by our Anycast, then Gatebot detected and mitigated the attack automatically without human intervention. And traffic inside each datacenter was load-balanced intelligently to avoid overwhelming any one machine. And as promised in the blog title, the attack peak did in fact occur while our London team was asleep.

So how does Gatebot work? Gatebot asynchronously samples traffic from every one of our data centers in over 200 locations around the world. It also monitors our customers’ origin server health. It then analyzes the samples to identify patterns and traffic anomalies that can indicate attacks. Once an attack is detected, Gatebot sends mitigation instructions to the edge data centers.

To complement Gatebot, last year we released a new system codenamed dosd (denial of service daemon) which runs in every one of our data centers around the world in over 200 cities. Similarly to Gatebot, dosd detects and mitigates attacks autonomously but in the scope of a single server or data center. You can read more about dosd in our recent blog.

The DDoS Landscape

While in recent months we’ve observed a decrease in the size and duration of DDoS attacks, highly volumetric and globally distributed DDoS attacks such as this one still persist. Regardless of the size, type or sophistication of the attack, Cloudflare offers unmetered DDoS protection to all customers and plan levels—including the Free plans.
