Field Notes: How FactSet Uses ‘microAccounts’ to Reduce Developer Friction and Maintain Security at Scale

Post Syndicated from Tarik Makota original https://aws.amazon.com/blogs/architecture/field-notes-how-factset-uses-microaccounts-to-reduce-developer-friction-and-maintain-security-at-scale/

This is post was co-written by FactSet’s Cloud Infrastructure team, Gaurav Jain, Nathan Goodman, Geoff Wang, Daniel Cordes, Sunu Joseph and AWS Solution Architects, Amit Borulkar and Tarik Makota.

FactSet considers developer self-service and DevOps essential for realizing cloud benefits.  As part of their cloud adoption journey, they wanted developers to have a frictionless infrastructure provisioning experience while maintaining standardization and security of their cloud environment.  To achieve their objectives, they use what they refer to as a ‘microAccounts approach’. In their microAccount approach, each AWS account is allocated for one project and is owned by a single team.

In this blog, we describe how FactSet manages 1000+ AWS accounts at scale using the microAccounts approach. First, we cover the core concepts of their approach. Then we outline how they manage access and permissions. Finally, we show how they manage their networking implementation and how they use automation to manage their AWS Cloud infrastructure.

How FactSet started with AWS

They started their cloud adoption journey with what they now call a ‘macroAccounts’ approach. In the early days they would set up a handful of AWS accounts. These macroAccounts were then shared across several different application teams and projects.   They have hundreds of application teams along with thousands of developers and they quickly experienced the challenges of a macroAccounts approach. These include the following:

  1. AWS Identity and Access Management (IAM) policies and resource tagging were complex to design in order to maintain least privilege. For example, if a developer desired the ability to start/stop Amazon EC2 instances, they would need to ensure that they are limited to starting/stopping only their own instances.  This complexity kept increasing as developers wanted to automate their workflows using constructs such as AWS Lambda functions, and containers.
  2. They had difficulty in properly attributing cloud costs across departments.  More importantly they kept going back and forth on: how do we establish accountability and transparency around spends by groups, projects, or teams?
  3. It was difficult to track and manage impact of infrastructure change to FactSet applications. For example, how is maintenance off underlying security group or IAM policy affecting FactSet applications?
  4. Significant effort was required in managing service quotas and limits across various applications being under single AWS account.

FactSet’s solution – microAccounts

Recognizing the issues, they decided to take a different approach to AWS account management. Instead of creating a few shared macro-accounts, they decided to create one AWS account per project (microAccounts) with clearly defined ownership and product allocation.  An analogy might be that macro-accounts were like leaving the main door of a house open but locking individual closets and rooms to limit access. This is opposed to safeguarding the entry to the house but largely leaving individual closets and rooms open for the tenant to manage.

Benefits of microAccounts

They have been operating their AWS Cloud infrastructure using microAccounts for about two years now. Benefits of the microAccount approach include:

1.      Access & Permissions: By associating an account with a project they simplified which services are allowed, which resources that development team can access, and are able to ensure that those permissions cascade properly to underlying resources.  The following diagram shows their microAccount strategy.



Tagging versus microAccount strategy

Figure 1 – Tagging versus microAccount strategy

2.      Service Quotas & Limits: Given most service quotas are account specific, microAccounts allow their developers to plan limits based on their application needs.  In a shared account configuration, there was no mechanism to limit separate teams from using up a larger portion of the service quota, leaving other teams with less.  These limits extend beyond infrastructure provisioning to run time tasks like Lambda concurrency, API throttling limits on parameter store and more.

3.      AWS Service Permissions: microAccounts allowed FactSet to easily implement least privilege across services. By using IAM service control policies (SCPs) they limit what AWS services an account can access.  They start with a default set of services and based on business need we can grant a specific account access to other non-common services without having to worry about those services creeping into other use cases.  For example, they disable storage gateway by default, but can allow access for a specific account if needed.

4.      Blast Radius Containment:  microAccounts provides the ability to create safety boundaries. This is in the event of any stability and security issues, they stay isolated within that specific application (AWS account) and they don’t affect operations of other applications.

5.     Cost Attributions:  Clearly defined account ownership provides a simple and straightforward way to attribute costs to a specific team, project, or product.  They don’t have to enforce the tagging individual resources for cost purposes. AWS account acts like an application resource group so all resources in the account are implicitly tagged.

6.      Account Notifications & Operations:  Single threaded account ownership allows FactSet to automatically relay any required notification to right developers.  Moreover, given that account ownership is fundamental in defining who is allowed access to the account, there is a high level of confidence in the validity of this mapping as opposed to relying on just tagging.

7.      Account Standards & Extensions: we manage microAccounts through a CI/CD pipeline which allows us to standardize and extend without interruptions.  For example, all their microAccounts are provisioned with a standard AWS Key Management Service (AWS KMS) key, an AWS Backup Vault & policy, private Amazon Route 53 zone, AWS Systems Manager Parameter Store with network information for Terraform or AWS CloudFormation templates.

8.      Developer Experience: microAccount automation and guardrails allow developers to get started quickly instead of spending time debugging things like correct SCP/IAM permissions and more. Developers tend to work across multiple applications and their experience has improved as they have a standard set of expectations for their AWS environment. This is particularly useful as they move from application to application.

Access and permissions for microAccounts

FactSet creates every AWS account with a standard set of IAM roles and permissions. Furthermore, each account has its own SCP which defines the list of services allowed in the account.  Based on application needs, they can extend the permissions.  Interactive roles are mapped to an ActiveDirectory (AD) group, and membership of the AD group is managed by the development teams themselves.  Standard roles are:

  • DevOps Role – Interactive role used to provision and manage infrastructure.
  • Developer Role – Interactive role used to read/write data (and some infrastructure)
  • ReadOnly Role – Interactive role with read-only access to the account.  This can be granted to account supervisors, product developers, and other similar roles.
  • Support Roles – Interactive roles for certain admin teams to assist account owners if needed
  • ServiceExecutionRole – Role that can be attached to entities such as Lambda functions, CodeBuild, EC2 instances, and has similar permissions to a developer role.
IAM Role Privileges

Figure 2 – IAM Role Privileges

Networking for microAccounts

  • FactSet leverages AWS Resource Access Manager (RAM) to share appropriate subnets with each account.  Each microAccount provisioned has access to subnets by sing AWS Shared VPCs.  They create a single VPC per business unit per environment (Dev, Prod, UAT, and Shared Services) in each region.  RAM enabled them to easily and securely share AWS resources with any AWS account within their AWS Organization.  When an account is created they allocate appropriate subnets to that account.
  • They use AWS Transit Gateway to manage inter-VPC routing and communication across multiple VPCs in a region.  They didn’t want to limit our ability to scale up quickly.  AWS Transit Gateway is a single place to land their AWS Direct Connect circuits in each Region.  It provides them with a consolidated place to manage routing tables that propagated to each VPC when they are attached.



VPC Sharing for microAccounts

Figure 3 – VPC Sharing for microAccounts

Automation & Config Management for microAccounts

To create frictionless self-service cloud infrastructure early on, FactSet realized that automation is a must.  Their infrastructure automation uses source-control as a source of truth for defining each microAccount. This helps them ensure repeatable and standardized account provisioning process, as well as flexibility to adjust specific settings and permissions on per account needs.

Account provisioning flow

Figure 4 – Account provisioning flow

By default, their accounts are only enabled in a small set of Regions.  They control it via the following policy block.  If they add new Region(s), they would implement that change in source-control and automated enforcement checks would add it to SCP.

{
    "Sid": "DenyOtherRegions",
    "Effect": "Deny",
    "Action": "*",
    "Resource": "*",
    "Condition": {
        "StringNotEquals": {
            "aws:RequestedRegion": ["us-east-1","eu-west-2"]
        },
        "ForAllValues:StringNotLike": {
            "aws:PrincipalArn": [
                "arn:aws:iam::*:role/cloud-admin-role"
    }
}

Lessons Learned

During their journey to adopt microAccounts, FactSet came across some new challenges that are worth highlighting:

  1. IAM role creation: Their DevOps Role can create new IAM roles within the account.  To ensure that newly created role complies with least-privilege principles, they attach a standard permission boundary which limits its permissions to not extend beyond DevOps level.
  2. Account Deletion: While AWS provides APIs for account creation, currently there is no API to delete or rename an account.  This is not an issue since only a small percentage of accounts had to be deleted because of a cancelled project for example.
  3. Account Creation / Service Activation: Although automation is used to provision accounts it can still take time for all services in account to be fully activated.  Some services like Amazon EC2 have asynchronous processes to be activated in a new account.
  4. Account Email, Root Password, and MFA: Upon account creation, they don’t set up a root password or MFA.  That is only setup on the primary (master) account.  Given each account requires a unique email address, they leverage Amazon Simple Email Service (Amazon SES) to create a new email address with cloud administrator team as the recipients.  When they need to log in as root (very unusual), they go through the process of password reset before logging in.
  5. Service Control Policies: There were two primary challenges related to SCPs:
    • SCP is a property in the primary (master) account that is attached to a child microAccount.  However, they also wanted to manage SCP like any other account config and store it in source-control along with other account configuration.  This required IAM role used by our automation to have special permissions to be able to create/attach/detach SCPs in the primary (master) account.
    • There is a hard limit of 1000 SCPs in the primary (master) account.  If you have a SCP per account, this would limit you to 1000 microAccounts.  They solved this by re-using SCPs across accounts with same policies.  Content of a policy is hashed to create a unique SCP identifier, and accounts with same hashes are attached to same SCP.
  6. Sharing data (typically S3) across microAccounts: they leverage a concept of “trusted-accounts” to allow other accounts access to an account’s resources including S3 and KMS keys.
  7. It may feel like an anti-pattern to have resources with static costs like Application Load Balancers (ALB) and KMS for individual projects as opposed to a shared pool.  The list of resources with a base cost is small as most of the services are largely priced based on usage.  For FactSet, resource isolation is a key benefit of microAccounts, and therefore outweighs some of these added costs.
  8. Central Inventory & Logging: With 100s of accounts, it is worth investing in a more centralized inventory and AWS CloudTrail logs collection system.
  9. Costs, Reserved Instances (RI), and Savings Plans: FactSet found AWS Cost Explorer at the level of your primary (master) account to be a great tool for cost-transparency.  They leverage AWS Cost Explorer’s API to import that data into their internal cost transparency tools.  RIs and Savings Plans are managed centrally and leverage automatic sharing between accounts within the same master (primary) organization.

Conclusion

The microAccounts approach provides FactSet with the agility to operate according to specific needs of different teams and projects in the enterprise. They are currently deploying in twelve AWS Regions with automated AWS account provisioning happening in minutes and drift checks executing multiple times throughout the day. This frees up their developers to focus on solving business problems to maximize the benefits of cloud computing, so that their business can innovate and accelerate their clients’ digital transformations.

Their experience operating regulated infrastructure in the cloud demonstrated that microAccounts are pivotal for managing cloud at scale. With microAccounts they were able to accelerate projects onboarded to cloud by 5X, reduce number of IAM permission tickets by 10X, and experienced 3X fewer stability issues. We hope that this blog post provided useful insights to help determine if the microAccount strategy is a good fit for you.

In their own words, FactSet creates flexible, open data and software solutions for tens of thousands of investment professionals around the world, which provides instant access to financial data and analytics that investors use to make crucial decisions. At FactSet, we are always working to improve the value that our products provide.

Recommended Reading:

Defining an AWS Multi-Account Strategy for telecommunications companies

Why should I set up a multi-account AWS environment?

Field Notes provides hands-on technical guidance from AWS Solutions Architects, consultants, and technical account managers, based on their experiences in the field solving real-world business problems for customers.



Ingest streaming data into Amazon Elasticsearch Service within the privacy of your VPC with Amazon Kinesis Data Firehose

Post Syndicated from Tarik Makota original https://aws.amazon.com/blogs/big-data/ingest-streaming-data-into-amazon-elasticsearch-service-within-the-privacy-of-your-vpc-with-amazon-kinesis-data-firehose/

Today we are adding a new Amazon Kinesis Data Firehose feature to set up VPC delivery to your Amazon Elasticsearch Service domain from the Kinesis Data Firehose. If you have been managing a custom application on Amazon Kinesis Data Streams to keep traffic private, you can now use Kinesis Data Firehose and load your data into an Amazon Elasticsearch Service endpoint in a VPC without having to invest, operate, and scale ingestion and delivery infrastructure. You can start using this new feature from Kinesis Data Firehose console, AWS CLI, and API by selecting Amazon Elasticsearch Service as the destination, the specific domain with VPC access, and setting the VPC configuration with subnets and the optional security groups.

Before this feature

Amazon Elasticsearch Service domains can have public or private endpoints. Public endpoints are backed by IP addresses on the public internet. Private endpoints are backed by IP addresses within the IP space of your VPC.

If you have been using an Amazon Elasticsearch Service VPC endpoint, you most likely use Kinesis Data Streams or similar soultion to ingest streaming data. This means running a custom application on the stream that delivers it to the Amazon Elasticsearch Service VPC domain. You likely had to perform the following actions:

  • Implement buffering
  • Format conversions
  • Perform compression
  • Apply transformation
  • Manage backup
  • Handle transient delivery failures

Additionally, you have to build, scale, monitor, update, and maintain this custom application.

Kinesis Data Firehose delivery to Amazon Elasticsearch Service VPC endpoint

Kinesis Data Firehose can now deliver data into an Amazon Elasticsearch Service VPC endpoint. This provides a secure and easy way to ingest, transform, and deliver streaming data. You don’t need to worry about managing your data ingestion and delivery infrastructure. With this new feature, Kinesis Data Firehose enables additional secure communication to Amazon Elasticsearch Service VPC endpoints. Amazon Elasticsearch Service endpoints that live within a VPC give you an extra layer of security.

How it works

When you create a Kinesis Data Firehose delivery stream that delivers data to an Amazon Elasticsearch Service VPC endpoint, Kinesis Data Firehose creates an Elastic Network Interface (ENI) in each subnet you select. If you only use one Availability Zone, Kinesis Data Firehose places an endpoint into only one subnet. Similarly, when you create an Amazon Elasticsearch Service VPC endpoint, it creates endpoints in the subnets you chose. Kinesis Data Firehose uses ENI to deliver the data to your Amazon Elasticsearch Service ENI, all inside your VPC. The following screenshot outlines the resulting architecture with a single subnet.

For this walkthrough, you have two security groups:

  • kdf-sec-grp for your Kinesis Data Firehose endpoint
  • es-sec-grp for your Amazon Elasticsearch Service endpoint

To let Kinesis Data Firehose access your Amazon Elasticsearch Service VPC endpoint, security group es-sec-grp needs to allow the ENI that Kinesis Data Firehose created to make HTTPS calls. Kinesis Data Firehose scales the ENIs automatically to meet the throughput requirements. As Kinesis Data Firehose scales ENIs, the outbound rules of the enclosing security group kdf-sec-grp control the data stream. You should configure the Amazon Elasticsearch Service security group (es-sec-grp) to allow HTTPS traffic from the Kinesis Data Firehose security group (kdf-sec-grp). The Kinesis Data Firehose security group needs to allow outbound HTTPS traffic, and its destination is the Amazon Elasticsearch Service security group. With Kinesis Data Firehose VPC delivery, you do not need to make the Firehose security group open to outside traffic.

You can also use the same security group for Kinesis Data Firehose and Amazon Elasticsearch Service endpoints. If you use the same security group for both, make sure the security group inbound rule allows HTTPS traffic.

For your existing delivery streams, you can change the destination endpoint. The new destination must be accessible within the same VPC, subnets, and security groups. Changing either of the VPC, subnets, and security groups requires you to recreate a delivery stream.

All existing Kinesis Data Firehose limits apply to this capability. For example, you can increase the default 50 delivery streams per account by submitting a quota increase request. Also, Kinesis Data Firehose creates one or more ENIs per VPC destination subnet per delivery stream. Kinesis Data Firehose automatically scales the number of ENIs as needed based on the actual throughput. The default throughput limit per delivery stream is 5 MB/second (dependent on Region). You can request an increase to this limit by submitting a support case.

You need to make sure you have enough ENIs available. By default, VPC has a quota of 5000 ENIs per Region. For more information, see Amazon VPC Quotas.

The advantage of using a managed service like Kinesis Data Firehose is that you can focus on the value of your data and not the underlying plumbing. You can configure the frequency of data delivery from your delivery stream to your Amazon Elasticsearch Service domain. Kinesis Data Firehose buffers incoming data before delivering it to Amazon ES. You can configure the values for Amazon Elasticsearch Service buffer size (1 MB–100 MB) or buffer interval (60–900 seconds), and the condition satisfied first triggers data delivery to Amazon Elasticsearch Service. In case data delivery fails for an Amazon Elasticsearch Service destination, you can specify a retry duration between 0 and 7,200 seconds when you create the delivery stream. If data delivery to your Amazon Elasticsearch Service endpoint fails, Kinesis Data Firehose retries data delivery for the specified time duration. After the retrial period, Kinesis Data Firehose skips the current batch of data and moves on to the next batch. Skipped documents go to your Amazon S3 bucket elasticsearch_failed folder, which you can use for manual backfill.

For more information about sizing, see Get started with Amazon Elasticsearch Service: T-shirt-size your domain.

Solution overview

To show you how to use this new feature, this post uses stock demo data available on the Kinesis Data Firehose console to deliver to an Amazon Elasticsearch Service endpoint in VPC. The following diagram illustrates the workflow.

This use case simulates a producer sending stock ticker data to the delivery stream (A). You use an AWS Lambda function (B) to add a timestamp to the stock records so that you can create Kibana visualization. Kinesis Data Firehose streams the stock records to the Amazon Elasticsearch Service endpoint (C) in your VPC. Finally, you can visualize the data using Kibana (D).

This post uses the Amazon Management Console to implement this solution, but you can also use AWS CLI.

Creating security groups

Start by creating two security groups: one for the Amazon Elasticsearch Service VPC endpoint (es-sec-grp) and another for the delivery stream (kdf-sec-grp). Create security groups without any rules first. After you have created them, set the inbound and outbound rules. The following table summarizes these rules.

Creating an Amazon Elasticsearch Service VPC endpoint

To create an Amazon Elasticsearch Service endpoint in VPC, complete the following steps:

  1. On the Amazon Elasticsearch Service console, choose Create a new Domain.
  2. For Deployment Type and Latest Version, choose Development and Testing.
  3. Choose Next.
  4. Give your Amazon Elasticsearch Service endpoint a name.
  5. Select your instance type.

This post uses m5.xlarge.elasticsearch. For production environments, select the appropriately sized instance type. For this post, leave the number of nodes at 1, though best practice is to set it to 2.

  1. Set EBS storage size per node to 100 GiB.
  2. Leave the rest of the settings at their defaults and choose Next.
  3. Select the VPC and private subnet for your Amazon Elasticsearch Service endpoint and the security group for Amazon Elasticsearch Service that you created previously (es-sec-grp).
  4. To access Kibana, choose fine-grained access.
  5. Choose Create Master User.

In this post, we are using internal user database enabled with HTTP basic authentication. For production environments, use IAM roles and configure the appropriate fine-grained access. For more information, see Fine-Grained Access Control in Amazon Elasticsearch Service.

  1. Choose Allow open access to Domain.

Security groups already enforce IP-based access policies. This step opens access to your Amazon Elasticsearch Service endpoint to resources in your VPC, and your Amazon Elasticsearch Service endpoint is not accessible to the internet. For an additional layer of security in your Amazon Elasticsearch Service endpoint, use access policies that specify IAM users or roles. For more information about controlling access to your domains, see Identity and Access Management in Amazon Elasticsearch Service.

  1. Choose Next.
  2. Review your settings and choose Confirm.

The following screenshot shows an example of what your Amazon Elasticsearch Service endpoint VPC settings should look like.

Creating a Lambda function for record transformation

Create a Lambda function to add a timestamp to the data feed. Complete the following steps:

  1. On the Lambda console, choose Create Function.
  2. Choose Author from scratch.
  3. Name your function; for example, tmakAddTSToStream.
  4. Choose Python 3.7 as your runtime.
  5. Choose Create.

The following code is for your Lambda function (under the basic settings section, change the timeout from 3 sec to 45 sec):

import base64
import json
from datetime import datetime

def lambda_handler(event, context):

    send_back = []
    now = datetime.utcnow().isoformat()

    for record in event['records']:
        stock_rec = json.loads(base64.b64decode(record['data']))
        stock_rec["timestamp"] = now

        record_w_ts = {
                'recordId': record['recordId'],
                'result': 'Ok',
                'data': base64.b64encode(json.dumps(stock_rec).encode('utf-8') + b'\n').decode('utf-8')
        }
        send_back.append(record_w_ts)

    return {'records': send_back}

Creating a Kinesis Data Firehose delivery stream

To create your delivery stream, complete the following steps:

  1. On the Kinesis Data Firehose console, under Data Firehose, choose Create Delivery Stream.
  2. Enter a name for your stream; for example, tmak-kdf-stock-delivery-stream.
  3. For source, choose Direct PUT or other sources.
  4. Choose Next.
  5. For Data transformation, choose Enabled.
  6. Choose the Lambda function you created.
  7. Choose Next.
  8. Choose Amazon Elasticsearch Service as the destination for your delivery stream.
  9. For Index, enter stockdata.

The VPC section populates automatically. Make sure you use the security group you created for Kinesis Data Firehose (kdf-sec-grp).

  1. For Backup Mode, choose Failed records only.

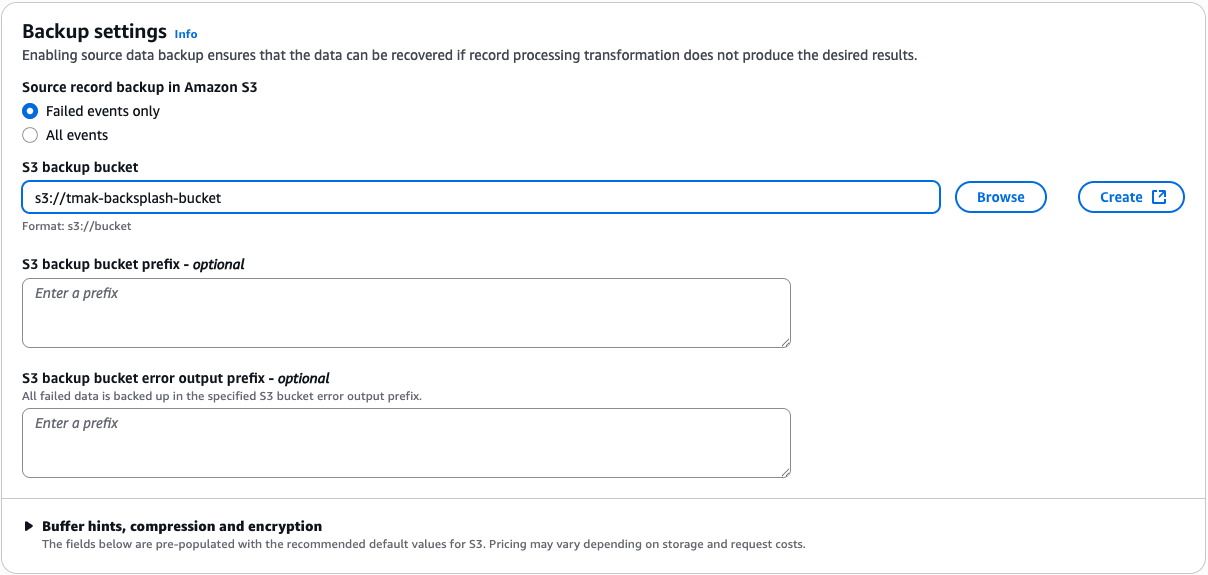

You can select an existing S3 bucket or create a new one. The following screenshot shows an example of your delivery stream settings.

  1. Choose Next.
  2. Review the buffering settings and set any tags to identify your stream.

A delivery stream that delivers to VPC destinations needs permissions to manage ENIs, list VPCs, and subnets. The console gives you the option to create a new role based on a template that includes all the needed permissions. You can also use an existing role if you already created one.

  1. Choose Next.
  2. Review the settings and choose Create Stream.

It may take up to a few minutes to see the stream status show as Active. See the following screenshot.

On the Amazon EC2 console, under Network and Security, you can see the endpoints created in your VPC by Kinesis Data Firehose and Amazon ES. See the following screenshot.

Configuring Kibana fine-grained access for Kinesis Data Firehose

You need to give Kinesis Data Firehose permissions to deliver stock data to your Amazon Elasticsearch Service endpoint. You can accomplish this via the Kibana console or API. For more information, see API on the Open Distro for Elasticsearch website.

For more information about controlling access to your Amazon Elasticsearch Service endpoint, see How to Control Access to Your Amazon Elasticsearch Service Domain.

Because your Amazon Elasticsearch Service endpoint is in the VPC to access Kibana, you must first connect to the VPC. This process varies by network configuration, but likely involves connecting to a VPN or corporate network. For this post, create a remote desktop EC2 instance public subnet of your VPC. The newly created security group (rdp-sec-grp) protects the instance. You can modify the es-sec-grp security group and allow inbound RDP traffic from rdp-sec-grp so you can access the Kibana URL. The following diagram illustrates this architecture.

Kinesis Data Firehose uses the delivery role to sign HTTP (Signature Version 4) requests before sending the data to the Amazon Elasticsearch Service endpoint. You manage Amazon Elasticsearch Service fine-grained access control permissions using roles, users, and mappings. This section describes how to create roles and set permissions for Kinesis Data Firehose.

The roles you create in this section are different from IAM roles. For more information, see Key Concepts.

Complete the following steps:

  1. Navigate to Kibana (you can find the URL on the Amazon Elasticsearch Service console).
  2. Enter the master user and password that you set up when you created the Amazon Elasticsearch Service endpoint.
  3. Under Security, choose Roles.
  4. Choose Add New Role.
  5. Name your role; for example, firehose-role.
  6. For cluster permissions, add cluster_composite_ops and cluster_monitor.
  7. Under Index permissions, choose Index Patterns and enter stockdata*.
  8. Under Permissions, add three action groups: crud, create_index, and manage.
  9. Choose Save Role Definition.

In the next step, you map the IAM role that Kinesis Data Firehose uses to the role you just created.

  1. Under Security, choose Role Mappings.
  2. Choose the role you just created (firehose-role).
  3. For Backend Roles, choose Add Backend Role.
  4. Enter the IAM ARN of the role Kinesis Data Firehose uses: arn:aws:iam::123456789012:role/firehose_stream_role_name.

You can find your delivery stream ARN on the Kinesis Data Firehose console.

Streaming stock data through Kinesis Data Firehose

To stream your stock data, complete the following steps:

  1. On the Kinesis Data Firehose console, choose the stream you created.
  2. Choose Test with demo data.
  3. Choose Start sending demo data.

If everything is working, you see message Demo data is being sent to your delivery stream. Wait a few minutes before you choose Stop sending demo data.

Analyzing and visualizing data

To analyze and visualize your data, complete the following steps:

  1. On the Kibana console, choose Management.
  2. Choose Index patterns.
  3. For Index pattern, enter stockdata*.
  4. Choose Next.
  5. For the Time filter field, choose timestamp.
  6. Choose Visualize.
  7. Create a new visualization and choose Line.
  8. For Index pattern, choose stockdata*.
  9. For Y-Axis, choose Aggregation=Average and Field=price.
  10. For X-Axis, choose Aggregation=Data Histogram, Field=timestamp, and Interval=seconds.
  11. Under X-Axis, choose Add Sub-buckets.
  12. Choose Split Series.
  13. Set Sub-Aggregation=Terms and Field=ticker_symbol.keyword.
  14. Choose Apply Changes.

The following screenshot shows an example visualization.

You can see the raw data by choosing Discover on the Kibana dashboard. See the following screenshot.

Summary

This post demonstrated how you can move an Amazon Elasticsearch Service endpoint inside your VPC with Kinesis Data Firehose. Additionally, you do not need to enable and secure public access to your Amazon Elasticsearch Service endpoint. If you have been reluctant to expose your Amazon Elasticsearch Service endpoint to the internet but want to stream data, you can now do so with Kinesis Data Firehose.




About the Authors

Tarik Makota is a Principal Solutions Architect with the Amazon Web Services. He provides technical guidance, design advice and thought leadership to AWS’ customers across US Northeast. He holds an M.S. in Software Development and Management from Rochester Institute of Technology.



Power data ingestion into Splunk using Amazon Kinesis Data Firehose

Post Syndicated from Tarik Makota original https://aws.amazon.com/blogs/big-data/power-data-ingestion-into-splunk-using-amazon-kinesis-data-firehose/

In late September, during the annual Splunk .conf, Splunk and Amazon Web Services (AWS) jointly announced that Amazon Kinesis Data Firehose now supports Splunk Enterprise and Splunk Cloud as a delivery destination. This native integration between Splunk Enterprise, Splunk Cloud, and Amazon Kinesis Data Firehose is designed to make AWS data ingestion setup seamless, while offering a secure and fault-tolerant delivery mechanism. We want to enable customers to monitor and analyze machine data from any source and use it to deliver operational intelligence and optimize IT, security, and business performance.

With Kinesis Data Firehose, customers can use a fully managed, reliable, and scalable data streaming solution to Splunk. In this post, we tell you a bit more about the Kinesis Data Firehose and Splunk integration. We also show you how to ingest large amounts of data into Splunk using Kinesis Data Firehose.

Push vs. Pull data ingestion

Presently, customers use a combination of two ingestion patterns, primarily based on data source and volume, in addition to existing company infrastructure and expertise:

  1. Pull-based approach: Using dedicated pollers running the popular Splunk Add-on for AWS to pull data from various AWS services such as Amazon CloudWatch or Amazon S3.
  2. Push-based approach: Streaming data directly from AWS to Splunk HTTP Event Collector (HEC) by using AWS Lambda. Examples of applicable data sources include CloudWatch Logs and Amazon Kinesis Data Streams.

The pull-based approach offers data delivery guarantees such as retries and checkpointing out of the box. However, it requires more ops to manage and orchestrate the dedicated pollers, which are commonly running on Amazon EC2 instances. With this setup, you pay for the infrastructure even when it’s idle.

On the other hand, the push-based approach offers a low-latency scalable data pipeline made up of serverless resources like AWS Lambda sending directly to Splunk indexers (by using Splunk HEC). This approach translates into lower operational complexity and cost. However, if you need guaranteed data delivery then you have to design your solution to handle issues such as a Splunk connection failure or Lambda execution failure. To do so, you might use, for example, AWS Lambda Dead Letter Queues.

How about getting the best of both worlds?

Let’s go over the new integration’s end-to-end solution and examine how Kinesis Data Firehose and Splunk together expand the push-based approach into a native AWS solution for applicable data sources.

By using a managed service like Kinesis Data Firehose for data ingestion into Splunk, we provide out-of-the-box reliability and scalability. One of the pain points of the old approach was the overhead of managing the data collection nodes (Splunk heavy forwarders). With the new Kinesis Data Firehose to Splunk integration, there are no forwarders to manage or set up. Data producers (1) are configured through the AWS Management Console to drop data into Kinesis Data Firehose.

You can also create your own data producers. For example, you can drop data into a Firehose delivery stream by using Amazon Kinesis Agent, or by using the Firehose API (PutRecord(), PutRecordBatch()), or by writing to a Kinesis Data Stream configured to be the data source of a Firehose delivery stream. For more details, refer to Sending Data to an Amazon Kinesis Data Firehose Delivery Stream.

You might need to transform the data before it goes into Splunk for analysis. For example, you might want to enrich it or filter or anonymize sensitive data. You can do so using AWS Lambda. In this scenario, Kinesis Data Firehose buffers data from the incoming source data, sends it to the specified Lambda function (2), and then rebuffers the transformed data to the Splunk Cluster. Kinesis Data Firehose provides the Lambda blueprints that you can use to create a Lambda function for data transformation.

Systems fail all the time. Let’s see how this integration handles outside failures to guarantee data durability. In cases when Kinesis Data Firehose can’t deliver data to the Splunk Cluster, data is automatically backed up to an S3 bucket. You can configure this feature while creating the Firehose delivery stream (3). You can choose to back up all data or only the data that’s failed during delivery to Splunk.

In addition to using S3 for data backup, this Firehose integration with Splunk supports Splunk Indexer Acknowledgments to guarantee event delivery. This feature is configured on Splunk’s HTTP Event Collector (HEC) (4). It ensures that HEC returns an acknowledgment to Kinesis Data Firehose only after data has been indexed and is available in the Splunk cluster (5).

Now let’s look at a hands-on exercise that shows how to forward VPC flow logs to Splunk.

How-to guide

To process VPC flow logs, we implement the following architecture.

Amazon Virtual Private Cloud (Amazon VPC) delivers flow log files into an Amazon CloudWatch Logs group. Using a CloudWatch Logs subscription filter, we set up real-time delivery of CloudWatch Logs to an Kinesis Data Firehose stream.

Data coming from CloudWatch Logs is compressed with gzip compression. To work with this compression, we need to configure a Lambda-based data transformation in Kinesis Data Firehose to decompress the data and deposit it back into the stream. Firehose then delivers the raw logs to the Splunk Http Event Collector (HEC).

If delivery to the Splunk HEC fails, Firehose deposits the logs into an Amazon S3 bucket. You can then ingest the events from S3 using an alternate mechanism such as a Lambda function.

When data reaches Splunk (Enterprise or Cloud), Splunk parsing configurations (packaged in the Splunk Add-on for Kinesis Data Firehose) extract and parse all fields. They make data ready for querying and visualization using Splunk Enterprise and Splunk Cloud.

Walkthrough

Install the Splunk Add-on for Amazon Kinesis Data Firehose

The Splunk Add-on for Amazon Kinesis Data Firehose enables Splunk (be it Splunk Enterprise, Splunk App for AWS, or Splunk Enterprise Security) to use data ingested from Amazon Kinesis Data Firehose. Install the Add-on on all the indexers with an HTTP Event Collector (HEC). The Add-on is available for download from Splunkbase.

HTTP Event Collector (HEC)

Before you can use Kinesis Data Firehose to deliver data to Splunk, set up the Splunk HEC to receive the data. From Splunk web, go to the Setting menu, choose Data Inputs, and choose HTTP Event Collector. Choose Global Settings, ensure All tokens is enabled, and then choose Save. Then choose New Token to create a new HEC endpoint and token. When you create a new token, make sure that Enable indexer acknowledgment is checked.

When prompted to select a source type, select aws:cloudwatch:vpcflow.

Create an S3 backsplash bucket

To provide for situations in which Kinesis Data Firehose can’t deliver data to the Splunk Cluster, we use an S3 bucket to back up the data. You can configure this feature to back up all data or only the data that’s failed during delivery to Splunk.

Note: Bucket names are unique. Thus, you can’t use tmak-backsplash-bucket.

aws s3 create-bucket --bucket tmak-backsplash-bucket --create-bucket-configuration LocationConstraint=ap-northeast-1

Create an IAM role for the Lambda transform function

Firehose triggers an AWS Lambda function that transforms the data in the delivery stream. Let’s first create a role for the Lambda function called LambdaBasicRole.

Note: You can also set this role up when creating your Lambda function.

$ aws iam create-role --role-name LambdaBasicRole --assume-role-policy-document file://TrustPolicyForLambda.json

Here is TrustPolicyForLambda.json.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "lambda.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}



After the role is created, attach the managed Lambda basic execution policy to it.

$ aws iam attach-role-policy
  --policy-arn arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole
  --role-name LambdaBasicRole



Create a Firehose Stream

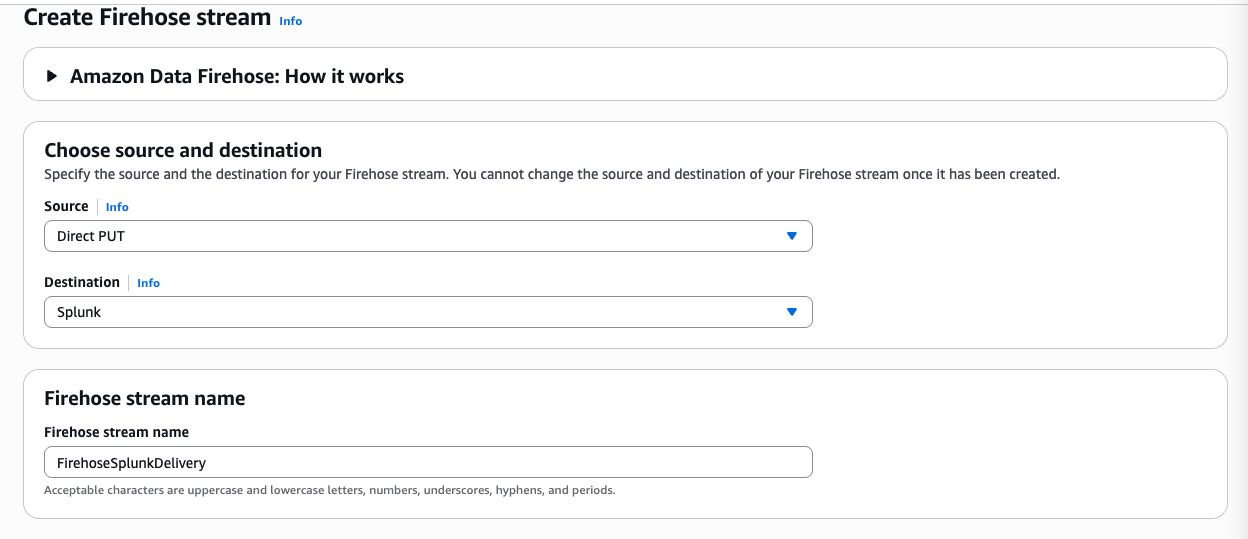

On the AWS console, open the Amazon Kinesis service, go to the Firehose console, and choose Create Delivery Stream.

In the next section, you can specify whether you want to use an inline Lambda function for transformation. Because incoming CloudWatch Logs are gzip compressed, choose Enabled for Record transformation, and then choose Create new.

From the list of the available blueprint functions, choose Kinesis Data Firehose CloudWatch Logs Processor. This function unzips data and place it back into the Firehose stream in compliance with the record transformation output model.

Enter a name for the Lambda function, choose Choose an existing role, and then choose the role you created earlier. Then choose Create Function.

Go back to the Firehose Stream wizard, choose the Lambda function you just created, and then choose Next.

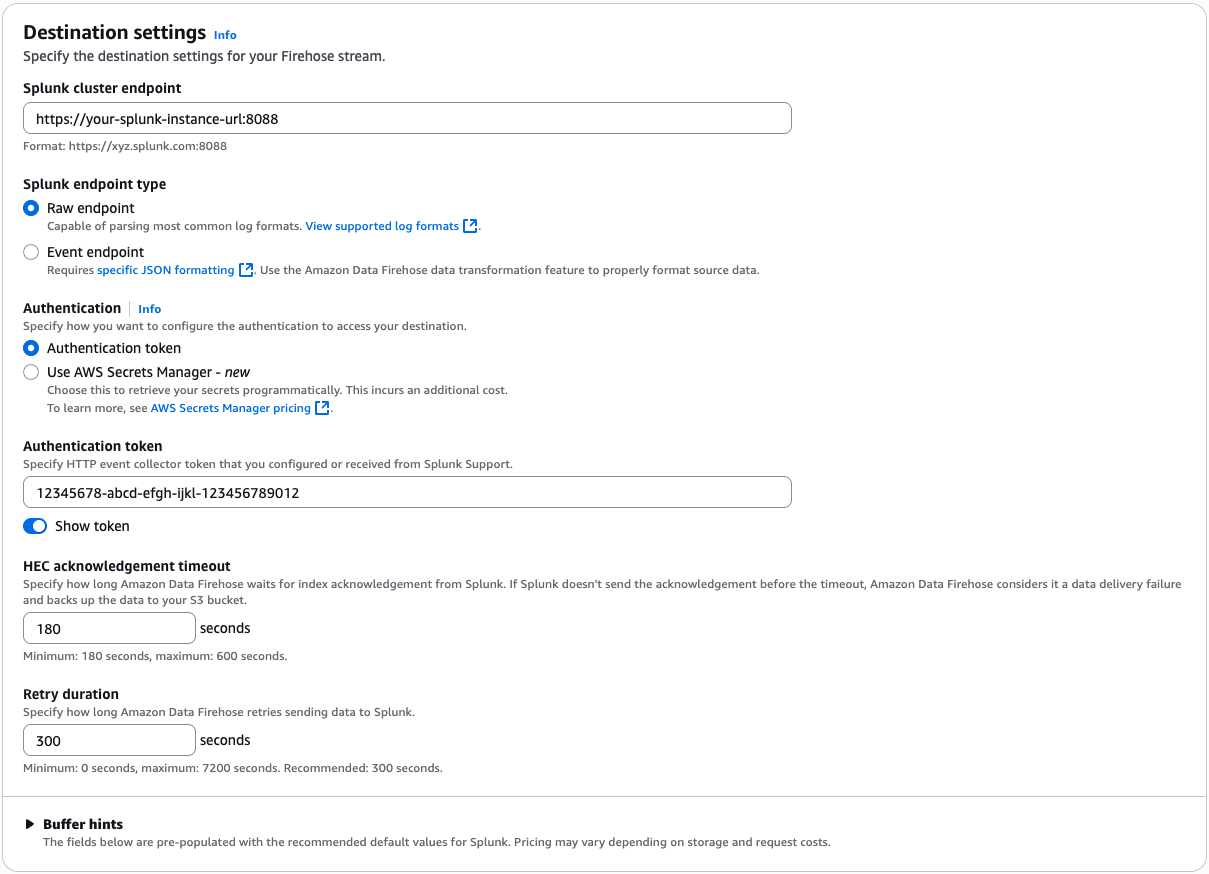

Select Splunk as the destination, and enter your Splunk Http Event Collector information.

Note: Amazon Kinesis Data Firehose requires the Splunk HTTP Event Collector (HEC) endpoint to be terminated with a valid CA-signed certificate matching the DNS hostname used to connect to your HEC endpoint. You receive delivery errors if you are using a self-signed certificate.

In this example, we only back up logs that fail during delivery.

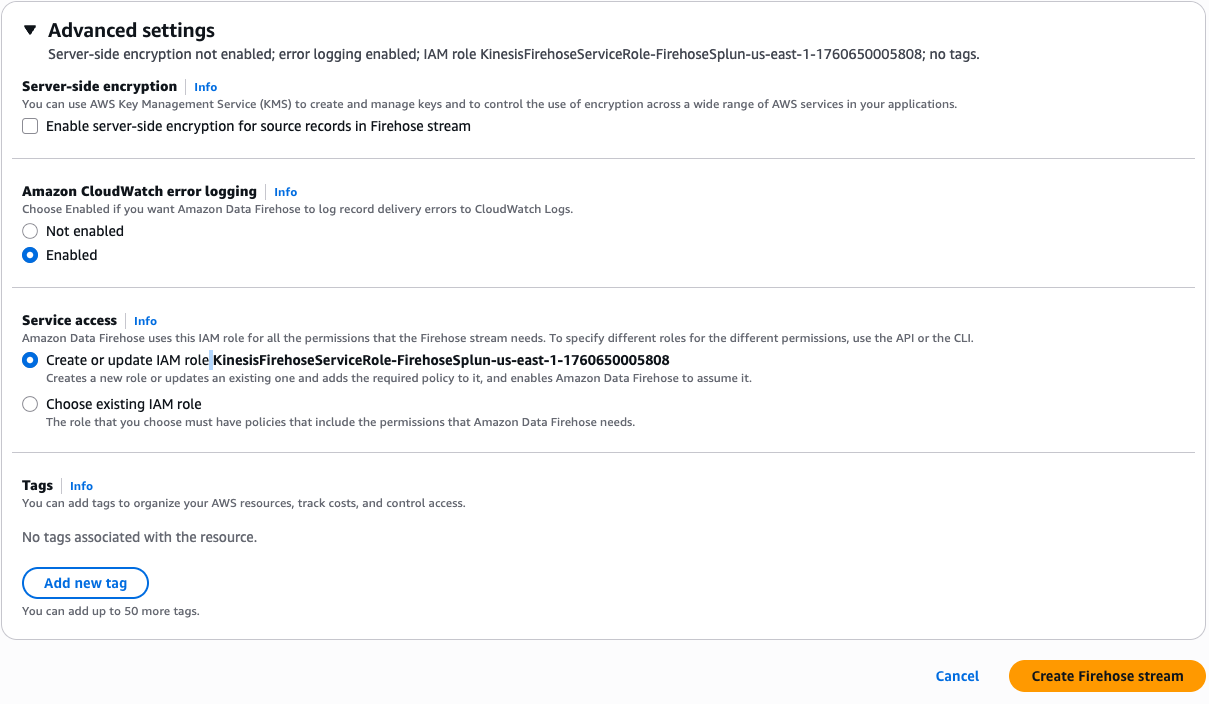

To monitor your Firehose delivery stream, enable error logging. Doing this means that you can monitor record delivery errors.

Create an IAM role for the Firehose stream by choosing Create new, or Choose. Doing this brings you to a new screen. Choose Create a new IAM role, give the role a name, and then choose Allow.

If you look at the policy document, you can see that the role gives Kinesis Data Firehose permission to publish error logs to CloudWatch, execute your Lambda function, and put records into your S3 backup bucket.

You now get a chance to review and adjust the Firehose stream settings. When you are satisfied, choose Create Stream. You get a confirmation once the stream is created and active.

Create a VPC Flow Log

To send events from Amazon VPC, you need to set up a VPC flow log. If you already have a VPC flow log you want to use, you can skip to the “Publish CloudWatch to Kinesis Data Firehose” section.

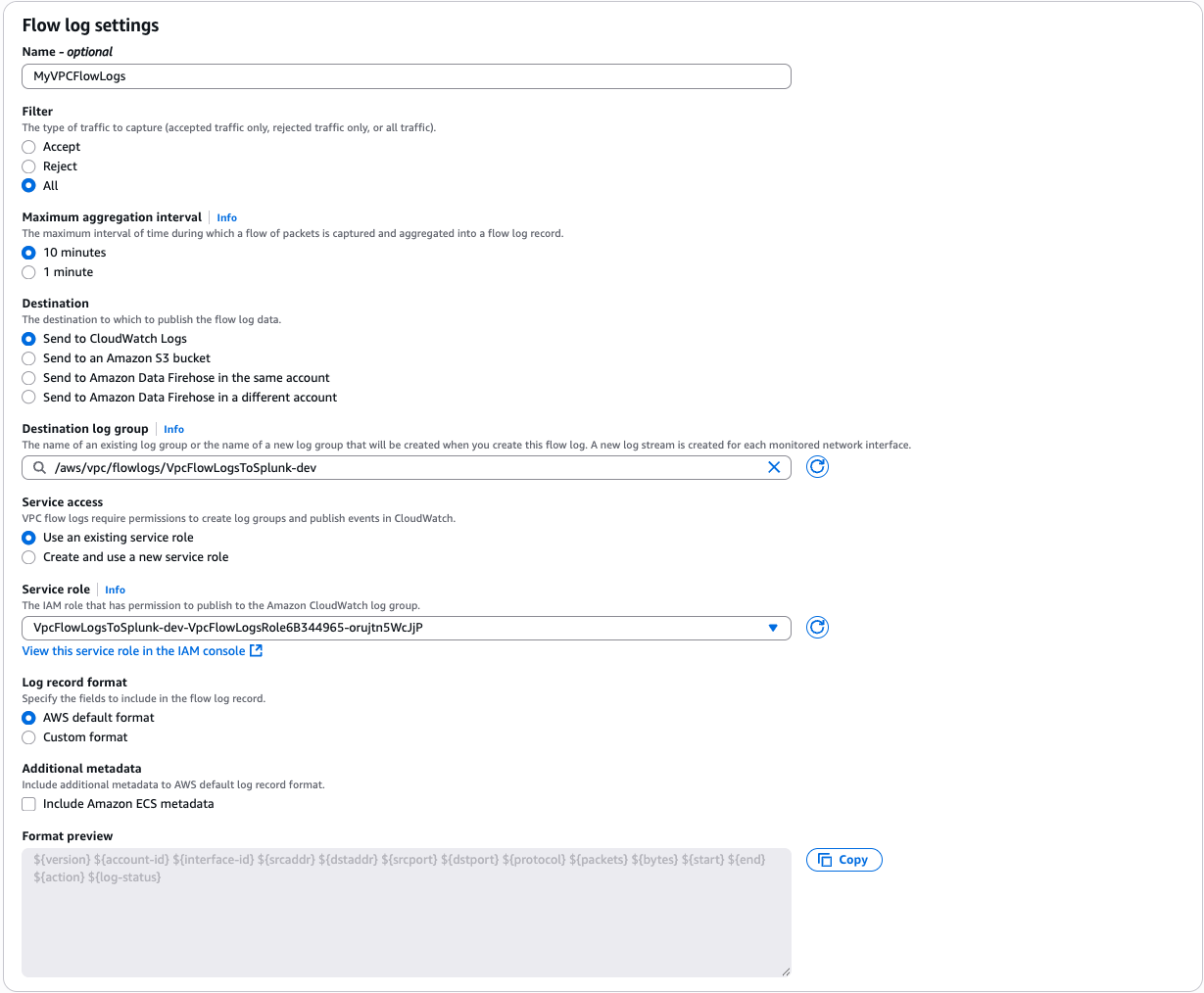

On the AWS console, open the Amazon VPC service. Then choose VPC, Your VPC, and choose the VPC you want to send flow logs from. Choose Flow Logs, and then choose Create Flow Log. If you don’t have an IAM role that allows your VPC to publish logs to CloudWatch, choose Set Up Permissions and Create new role. Use the defaults when presented with the screen to create the new IAM role.

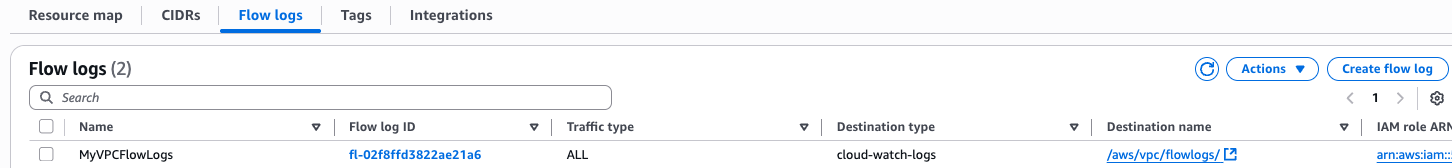

Once active, your VPC flow log should look like the following.

Publish CloudWatch to Kinesis Data Firehose

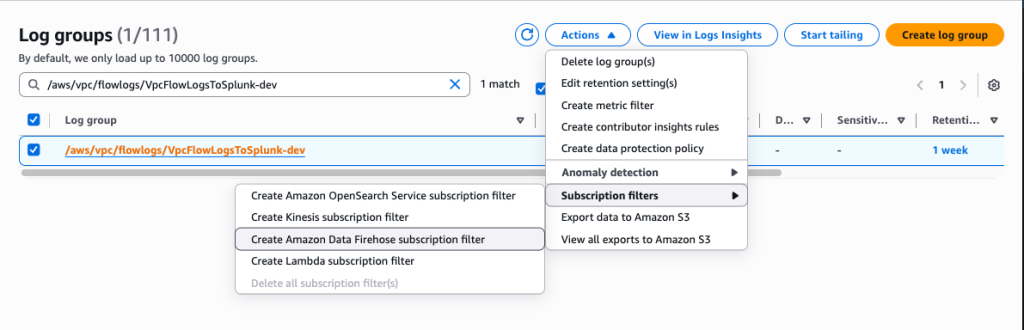

When you generate traffic to or from your VPC, the log group is created in Amazon CloudWatch. The new log group has no subscription filter, so set up a subscription filter. Setting this up establishes a real-time data feed from the log group to your Firehose delivery stream.

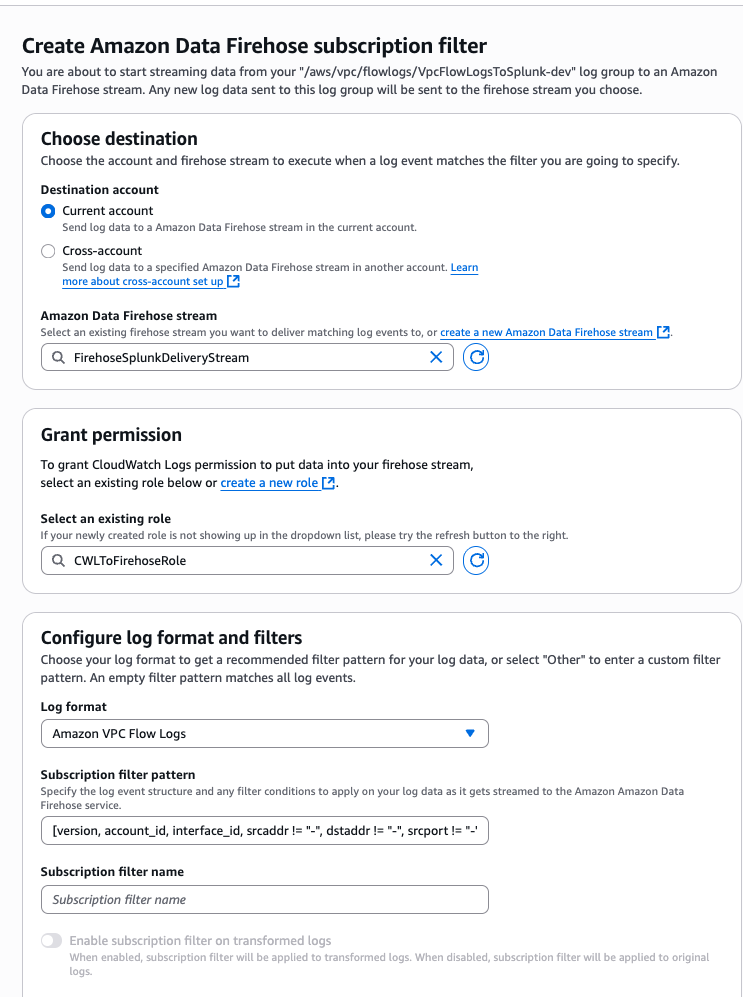

At present, you have to use the AWS Command Line Interface (AWS CLI) to create a CloudWatch Logs subscription to a Kinesis Data Firehose stream. However, you can use the AWS console to create subscriptions to Lambda and Amazon Elasticsearch Service.

To allow CloudWatch to publish to your Firehose stream, you need to give it permissions.

$ aws iam create-role --role-name CWLtoKinesisFirehoseRole --assume-role-policy-document file://TrustPolicyForCWLToFireHose.json


Here is the content for TrustPolicyForCWLToFireHose.json.

{
  "Statement": {
    "Effect": "Allow",
    "Principal": { "Service": "logs.us-east-1.amazonaws.com" },
    "Action": "sts:AssumeRole"
  }
}



Attach the policy to the newly created role.

$ aws iam put-role-policy
    --role-name CWLtoKinesisFirehoseRole
    --policy-name Permissions-Policy-For-CWL
    --policy-document file://PermissionPolicyForCWLToFireHose.json

Here is the content for PermissionPolicyForCWLToFireHose.json.

{
    "Statement":[
      {
        "Effect":"Allow",
        "Action":["firehose:*"],
        "Resource":["arn:aws:firehose:us-east-1:YOUR-AWS-ACCT-NUM:deliverystream/ FirehoseSplunkDeliveryStream"]
      },
      {
        "Effect":"Allow",
        "Action":["iam:PassRole"],
        "Resource":["arn:aws:iam::YOUR-AWS-ACCT-NUM:role/CWLtoKinesisFirehoseRole"]
      }
    ]
}

Finally, create a subscription filter.

$ aws logs put-subscription-filter
   --log-group-name " /vpc/flowlog/FirehoseSplunkDemo"
   --filter-name "Destination"
   --filter-pattern ""
   --destination-arn "arn:aws:firehose:us-east-1:YOUR-AWS-ACCT-NUM:deliverystream/FirehoseSplunkDeliveryStream"
   --role-arn "arn:aws:iam::YOUR-AWS-ACCT-NUM:role/CWLtoKinesisFirehoseRole"

When you run the AWS CLI command preceding, you don’t get any acknowledgment. To validate that your CloudWatch Log Group is subscribed to your Firehose stream, check the CloudWatch console.

As soon as the subscription filter is created, the real-time log data from the log group goes into your Firehose delivery stream. Your stream then delivers it to your Splunk Enterprise or Splunk Cloud environment for querying and visualization. The screenshot following is from Splunk Enterprise.

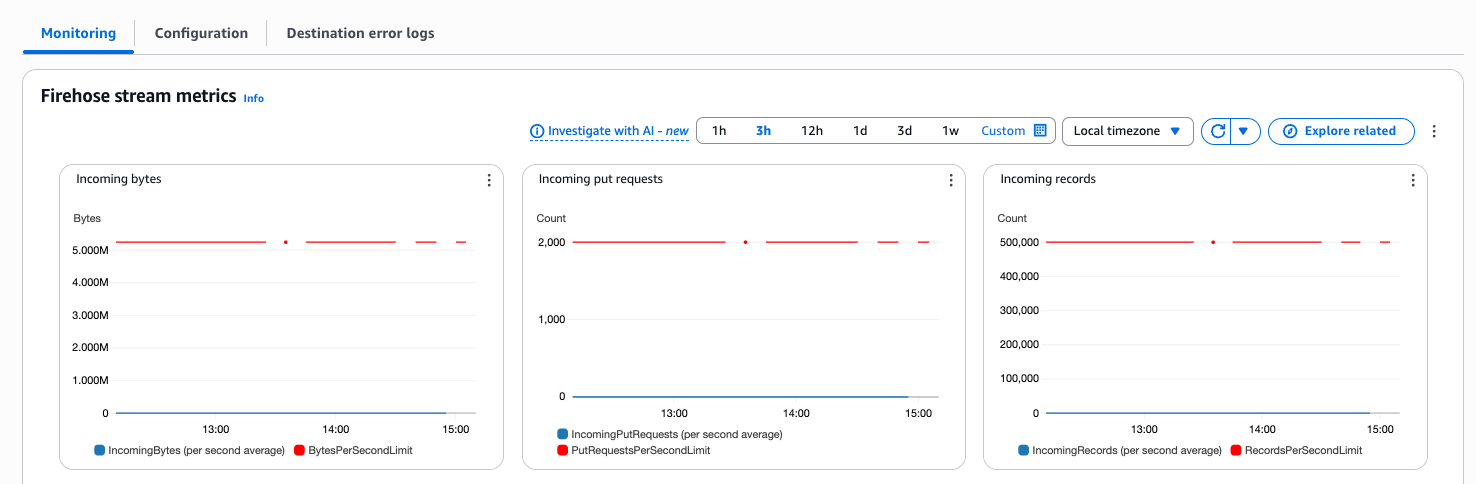

In addition, you can monitor and view metrics associated with your delivery stream using the AWS console.

Conclusion

Although our walkthrough uses VPC Flow Logs, the pattern can be used in many other scenarios. These include ingesting data from AWS IoT, other CloudWatch logs and events, Kinesis Streams or other data sources using the Kinesis Agent or Kinesis Producer Library. We also used Lambda blueprint Kinesis Data Firehose CloudWatch Logs Processor to transform streaming records from Kinesis Data Firehose. However, you might need to use a different Lambda blueprint or disable record transformation entirely depending on your use case. For an additional use case using Kinesis Data Firehose, check out This is My Architecture Video, which discusses how to securely centralize cross-account data analytics using Kinesis and Splunk.




Additional Reading

If you found this post useful, be sure to check out Integrating Splunk with Amazon Kinesis Streams and Using Amazon EMR and Hunk for Rapid Response Log Analysis and Review.


About the Authors

Tarik Makota is a solutions architect with the Amazon Web Services Partner Network. He provides technical guidance, design advice and thought leadership to AWS’ most strategic software partners. His career includes work in an extremely broad software development and architecture roles across ERP, financial printing, benefit delivery and administration and financial services. He holds an M.S. in Software Development and Management from Rochester Institute of Technology.







Roy Arsan is a solutions architect in the Splunk Partner Integrations team. He has a background in product development, cloud architecture, and building consumer and enterprise cloud applications. More recently, he has architected Splunk solutions on major cloud providers, including an AWS Quick Start for Splunk that enables AWS users to easily deploy distributed Splunk Enterprise straight from their AWS console. He’s also the co-author of the AWS Lambda blueprints for Splunk. He holds an M.S. in Computer Science Engineering from the University of Michigan.
